Numer produktu : 3404757

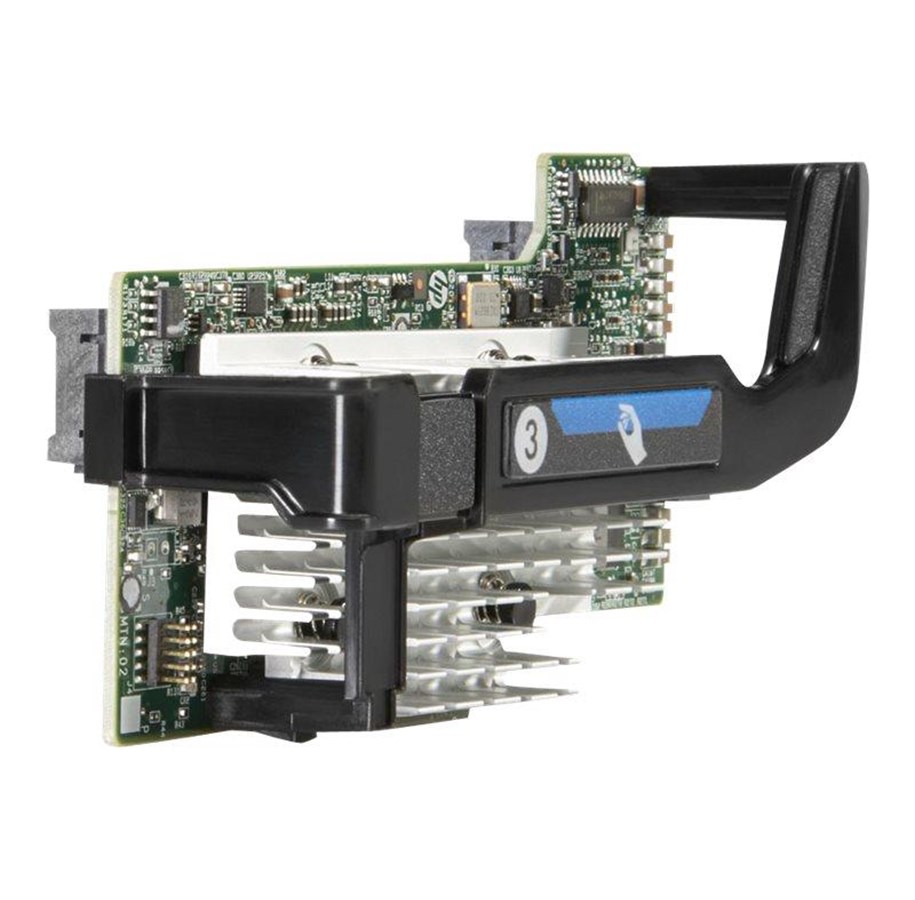

HP E FlexFabric 630FLB
Adapter sieciowy, PCIe 2.0 x8, 20 Gigabit Ethernet x 2, dla ProLiant BL460c Gen10, BL460c Gen9, BL465c Gen8, BL660c Gen8, WS460c Gen9
3 895,00 zł
3 166,67 zł netto
Koszt wysyłki od 20,00 zł
Produkt sprowadzany, czas dostawy 12-13 dni
The HPE FlexFabric 20Gb 2-port 630FLB adapter features the first generation of 20Gb Ethernet offering in a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 2 ports of 20Gb Ethernet. It provides full duplex high performance Ethernet connectivity with support for HPE Virtual Connect FlexFabric blade interconnect technology, allowing each 20GbE port to be divided into four physical NICs and optimize bandwidth management for virtualized servers. The HPE 630FLB FlexFabric network adapter, in conjunction with HPE Virtual Connect FlexFabric technology, helps to extend the benefits of virtualization beyond the server and into the rest of the infrastructure.
Producent
Numer produktu
3404757
Model
700065-B21
Do strony producenta
Kontakt do producenta
Opis produktu
HPE FlexFabric 630FLB - adapter sieciowy - PCIe 2.0 x8 - 20 Gigabit Ethernet x 2
Rodzaj urządzenia
Adapter sieciowy
Typ interfejsu (szyny)
PCI Express 2.0 x8
Porty
20 Gigabit Ethernet x 2
Protokół komunkacyjny danych
20GbE
Szybkość transmisji danych
20 Gbps
Protokół warstwy Sieci / Transportu
TCP/IP, UDP/IP
Procesor
1 x Qlogic BCM57840S
Zgodność z normami
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau
Wymagania systemowe
Microsoft Windows Server 2008 SP2, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 SP1 (32/64-bit), Red Hat Enterprise Linux 5.9, Citrix XenServer 6.1, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, VMware vSphere 5.5, Oracle Solaris x64 11, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, Oracle Solaris 10 aktualizacja 10, Red Hat Enterprise Linux 5.10, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2
Zaprojektowany dla
ProLiant BL460c Gen10, BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance, BL465c Gen8, BL660c Gen8, BL660c Gen8 Entry, BL660c Gen8 Performance, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
Ogólne
Rodzaj urządzenia
Adapter sieciowy
Typ interfejsu (szyny)
PCI Express 2.0 x8
Praca w sieci
Porty
20 Gigabit Ethernet x 2
Technologia podłączania
Przewodowa
Protokół komunkacyjny danych
20 Gigabit Ethernet
Szybkość transmisji danych
20 Gbps
Protokół warstwy Sieci / Transportu
TCP/IP, UDP/IP
Protokół zdalnego zarządzania
SNMP
Cechy
Obsługa VLAN, akceleracja iSCSI, QoS, obsługa Jumbo Frames, obsługuje PXE, LSO, RSS, SR-IOV, TSO, MSI-X, TOE, technologia HP Virtual Connect FlexFabric, uruchamianie iSCSI, suma kontrolna TCP/IP, suma kontrolna UDP/IP
Zgodność z normami
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau
Procesor / Pamięć
Procesor
1 x Qlogic BCM57840S
Rozszerzenie / połączenie
Gniazda rozszerzeń
1 x FlexibleLOM
Różne
Zgodność z normami
Certyfikat FCC Class A, UL, BSMI, BSMI CNS 13438 Class A, ICES-003, EN55024, FCC Part 15, RoHS, VCCI V-3 Class A ITE, EN 61000-3-2:2006, KN24, EN 61000-3-2:2008, KN22 Class A, EN55022:2006 Class A
Zasilanie
Zużycie energii w trybie aktywności
12 wat
Oprogramowanie / Wymagania systemowe
Wymagany system operacyjny
Microsoft Windows Server 2008 SP2, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 SP1 (32/64-bit), Red Hat Enterprise Linux 5.9, Citrix XenServer 6.1, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, VMware vSphere 5.5, Oracle Solaris x64 11, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, Oracle Solaris 10 aktualizacja 10, Red Hat Enterprise Linux 5.10, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2
Parametry środowiska
Minimalna temperatura pracy
0 °C
Maksymalna temperatura pracy
55 °C
Dopuszczalna wilgotność
10-90% nieskroplone
Informacja o kompatybilnosci
Zaprojektowany dla
HPE ProLiant BL460c Gen10, BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance, BL465c Gen8, BL660c Gen8, BL660c Gen8 Entry, BL660c Gen8 Performance, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
