Numer produktu : 2514310

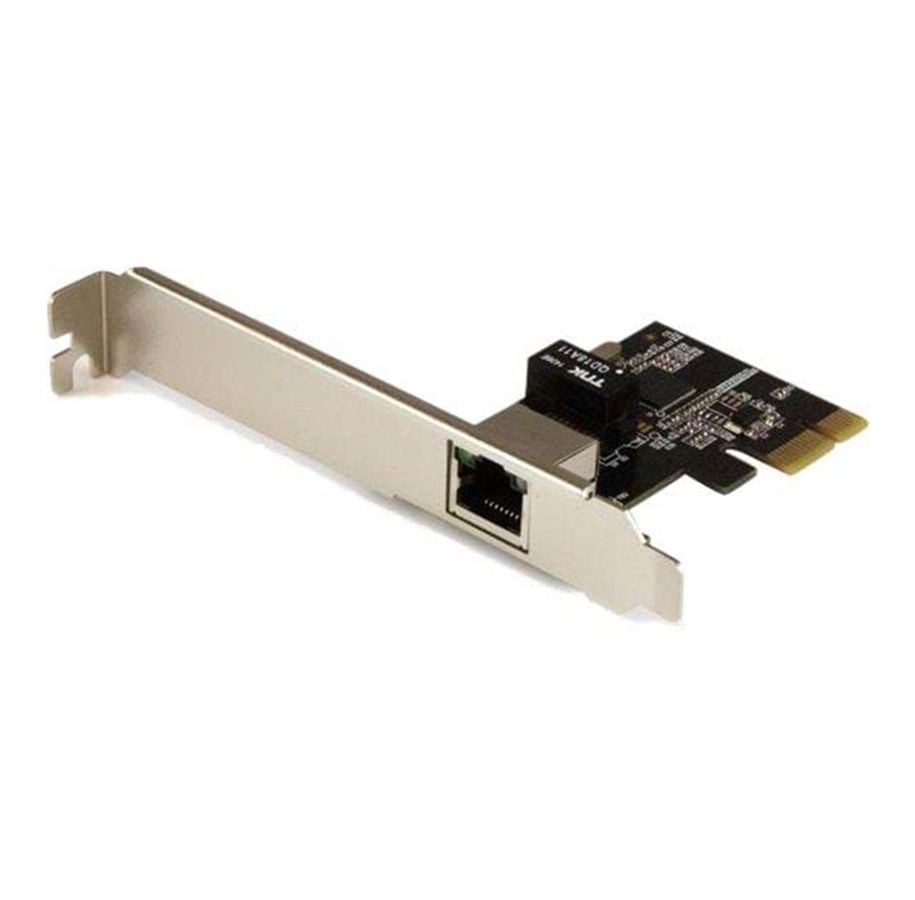

StarTech.com 1-Port Gigabit Ethernet Network Card
PCI Express, Intel I210 NIC, Adapter sieciowy, PCIe niski profil, GigE, 1000Base-T, czarny
187,00 zł
152,03 zł netto
Koszt wysyłki od 19,00 zł
W magazynie zewnętrznym, czas dostawy 4-5 dni
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot. Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.This Gigabit Ethernet network card utilizes the Intel I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed.
Producent
Numer produktu
2514310
Model
ST1000SPEXI
Ean
0065030861038
Do strony producenta
Opis produktu
Startech 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) - adapter sieciowy - PCI Express x1
Rodzaj urządzenia
Adapter sieciowy
Typ obudowy
Karta wkładana do gniazda - niski profil
Typ interfejsu (szyny)
PCI Express x1
Wymiary (szer./głęb./wys.)
6.6 cm x 12 cm x 1.8 cm
Waga
35 g
Rodzaj okablowania
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Protokół komunkacyjny danych
1GbE
Szybkość transmisji danych
1 Gbps
Wykonanie
Przekazywanie (pełen duplex): 2 Gb/s
Pojemność
Wielkość ramki Jumbo: 9000
Procesor
Intel I210-AT
Zgodność z normami
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Kolor
Czarny
Wymagania systemowe
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Ogólne
Rodzaj urządzenia
Adapter sieciowy
Typ obudowy
Karta wkładana do gniazda - niski profil
Typ interfejsu (szyny)
PCI Express x1
Praca w sieci
Technologia podłączania
Przewodowa
Rodzaj okablowania
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Protokół komunkacyjny danych
Gigabit Ethernet
Szybkość transmisji danych
1 Gbps
Wykonanie
Przekazywanie (pełen duplex): 2 Gb/s
Pojemność
Wielkość ramki Jumbo: 9000
Wskaźniki statusu
Status portu, łącze/aktywność
Cechy
Możliwy pełen dupleks, automatyczna funkcja uplink (auto MDI/MDI-X), obsługa Jumbo Frames
Zgodność z normami
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Procesor / Pamięć
Procesor
Intel I210-AT
Rozszerzenie / połączenie
Interfejsy
1 x sieć - RJ-45
Różne
Akcesoria w zestawie
Wspornik niskoprofilowy
Zgodność z normami
FCC, RoHS
Kolor
Czarny
Zasilanie
Zużycie energii w trybie aktywności
0.8 wat
Oprogramowanie / Wymagania systemowe
Wymagany system operacyjny
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Wymiary i waga
Szerokość
6.6 cm
Głębokość
12 cm
Wysokość
1.8 cm
Waga
35 g
Parametry środowiska
Minimalna temperatura pracy
5 °C
Maksymalna temperatura pracy
50 °C
Dopuszczalna wilgotność
20 - 80%
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
