Dorma Kaba Ed 100 swing door operator

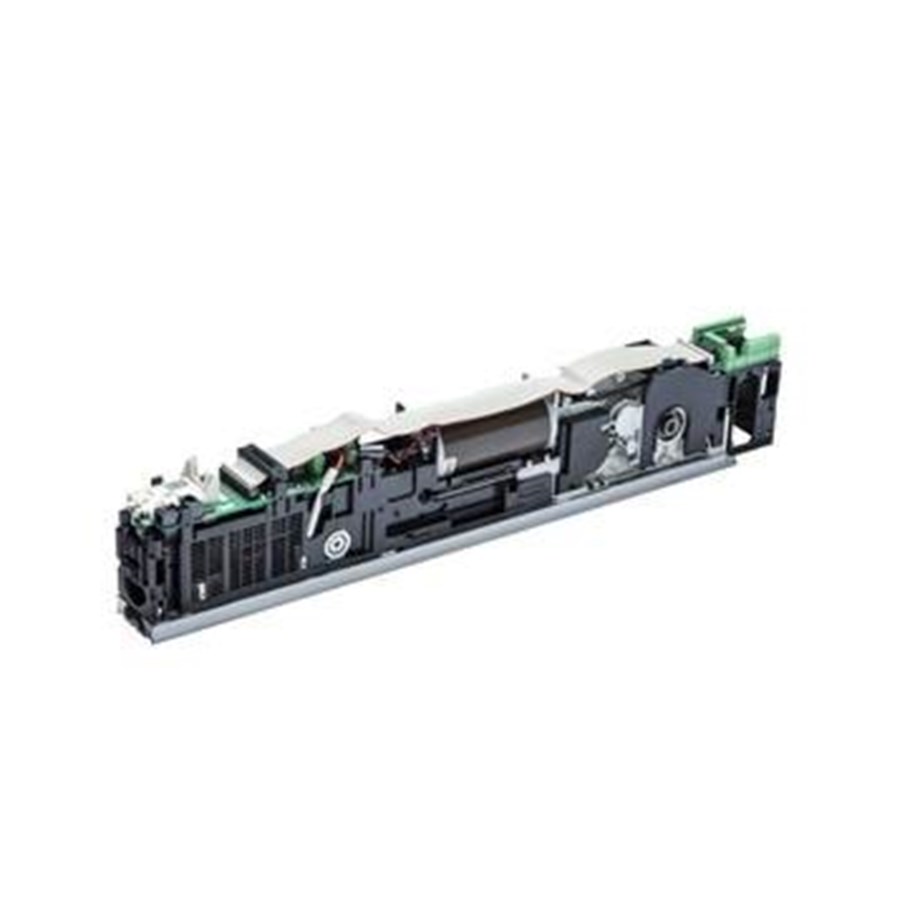

Automatic DORMA ED 100 LE without cover and arm. Product description: DORMA ED 100 LE, electromechanical automation for hinged doors. Opens with motor and closes with motor and spring or spring alone. All movements are controlled and adjustable via settings on the control panel. The automation comes with a mounting plate. DORMA ED 100 LE is a quiet door automation with many functional and adjustment options: reversing upon impact in closing direction, stopping upon impact in opening direction, Push-and-Go, Power-Assist Mode, static frame pressure, adjustable start time for electric lock, pulls the door before opening it, adjustable closing strength (spring), adjustable static open- and close-pressure (motor), adjustable static open- and close-speeds; two different hold-open times; four different types of impulse inputs - including one for voltage impulses; relay for feedback from motor lock; night control of locking mechanism; relay for door status; counter for door activity; four operating functions - automatic - constant open - from - automatic with disconnected input "Night Bank" via NO or NC delayed reaction to function change connection of safety sensor on both hinge sides possibility of upgrading to Full Energy Mode PROFF prepared for connection to ABDL via NO or NC Mechanical closing strength EN 2-4 Maximum door weight 100 kg Door width up to 1,100 mm Weight:12 kg Mounting on hinge side using sliding rail or opposite hinge side using normal arm Dimensions WxHxD:685 x70 x130 mm Electrical connection:230V –10 amp External operating voltage24 VDC –1.5 amp (stab.)
