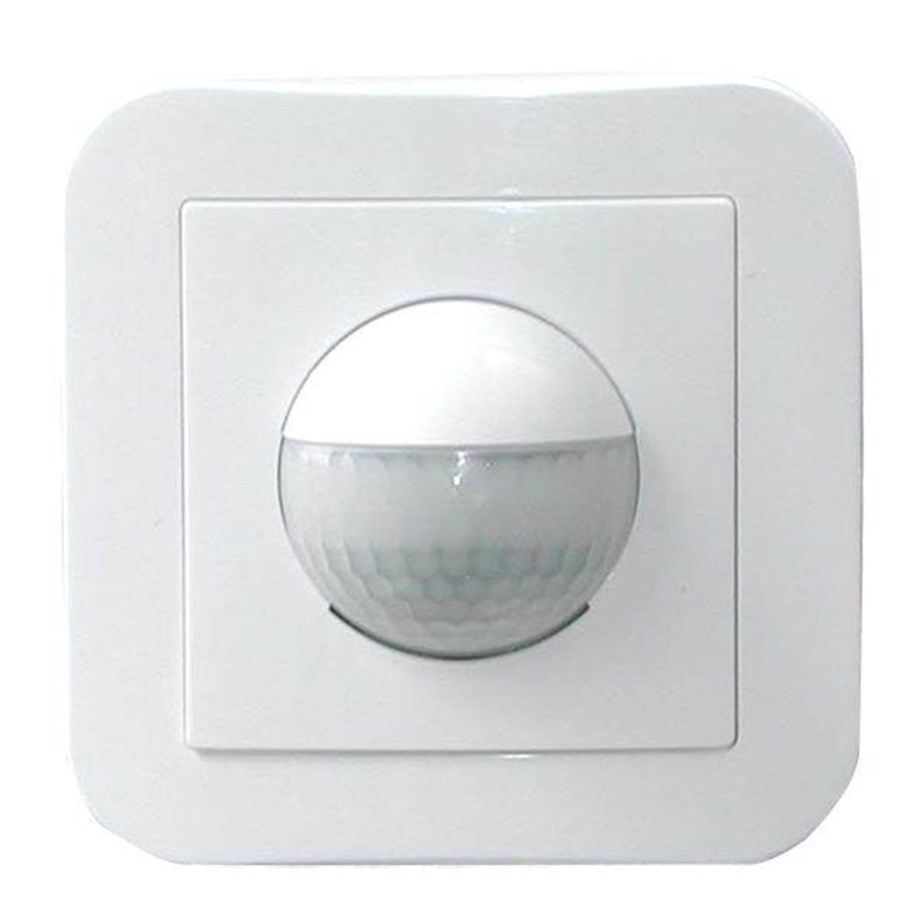

B.E.G. Occupancy detector indoor 180/m-2c-fm white( compl

Product: Indoor 180-M-2C (92136)for installation in EURO canned or on substrates. Fjernbetjenbar presence detectors LUXOMAT® Indoor 180-M-2C Master as wall sensor with 180 ° detection. Can be combined with hedging hits in five different colors. In connection with the frame suitable for all common IP switch products. Two channels, one for switching on the lighting, the other potential free to the ignition of HVAC (heating, air conditioning and ventilation). You can connect an unlimited number of slaves for cheap extension of the detection area! Fixtures IP20 and IP54. Measurement of mixed light, day and artificial light (principle of presence sensor) Brightness level and delay time can be adjusted. For mounting heights from 1.10 to 2.20 m with accessory support (92141) can be mounted on the outside of a wall. Application examples: monitoring of public lavatories, corridors, archive rooms, etc. Covers must be ordered separately! Power supply voltage: 230V ~ ± 10%. Detection range: 180 ° Range (around) m: max. 10,00m, Protection: IP20 / Class II / CE, Dimensions: L 87 x W 87 x D 61 mm Ambient temperature: -25 ° C to + 50 ° C , Housing: UV-resistant polycarbonate high-quality. Remote controllable: IR-PD IR-PD-Mini. Channel 1 (light control) 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5. Time settings: 15 sec. - 30 min. or pulse Brightness Value: 5-2000 Lux, Channel 2 (HVAC): Max Load: Shutter, NO contact, 3A, 230V, power factor measure = 1 Time settings: Alarm pulse, impulse or 5 - 120min. Power consumption:> 0.5W.
