AXAGON 2 × 2.5" SSD / HDD Bracket for 3.5" Bay

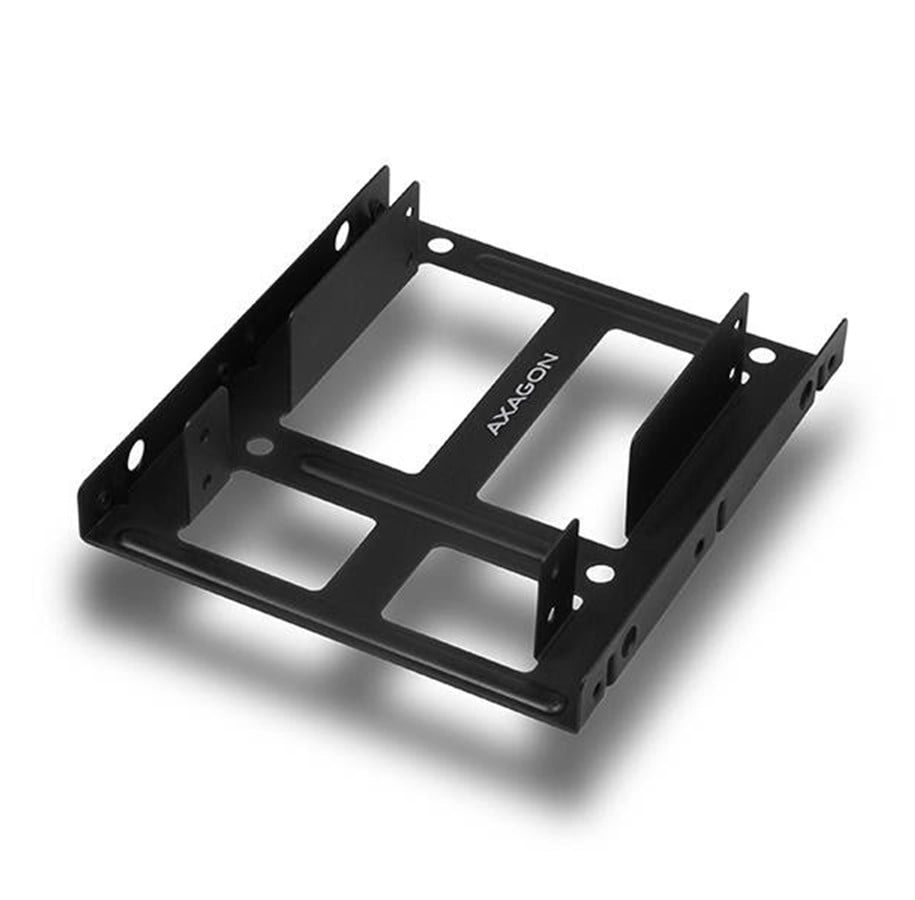

The AXAGON RHD-225 metal frame allows mounting two 2.5" HDDs or SSDs into a standard 3.5" PC case position, supporting drives up to 9.5 mm height and prepared for optional fan installation.
The AXAGON RHD-225 metal frame allows mounting two 2.5" HDDs or SSDs into one 3.5" position of the PC housing.
This provides an easy solution for an internal disk array in compact computers, for example.
To enhance disk cooling, the frame is ready for installation of an extra fan.
Features:
- Supports 2× 2.5" SSDs or hard disks up to 9.5 mm height
- The frame dimensions and mounting holes correspond to the standard 3.5" position of the PC housing
- The frame is pressed from a steel sheet and painted black
- Prepared holes for fan mounting with an 8 cm diameter (fan not included)
- Outside dimensions of the frame: 102 × 115 × 24 mm (W × D × H)
- Weight 58 g
Package contains:
- Frame
- 8 pcs screws for mounting the disks into the frame
- 4 pcs screws for mounting the frame into the housing
- Packed in a cardboard box
