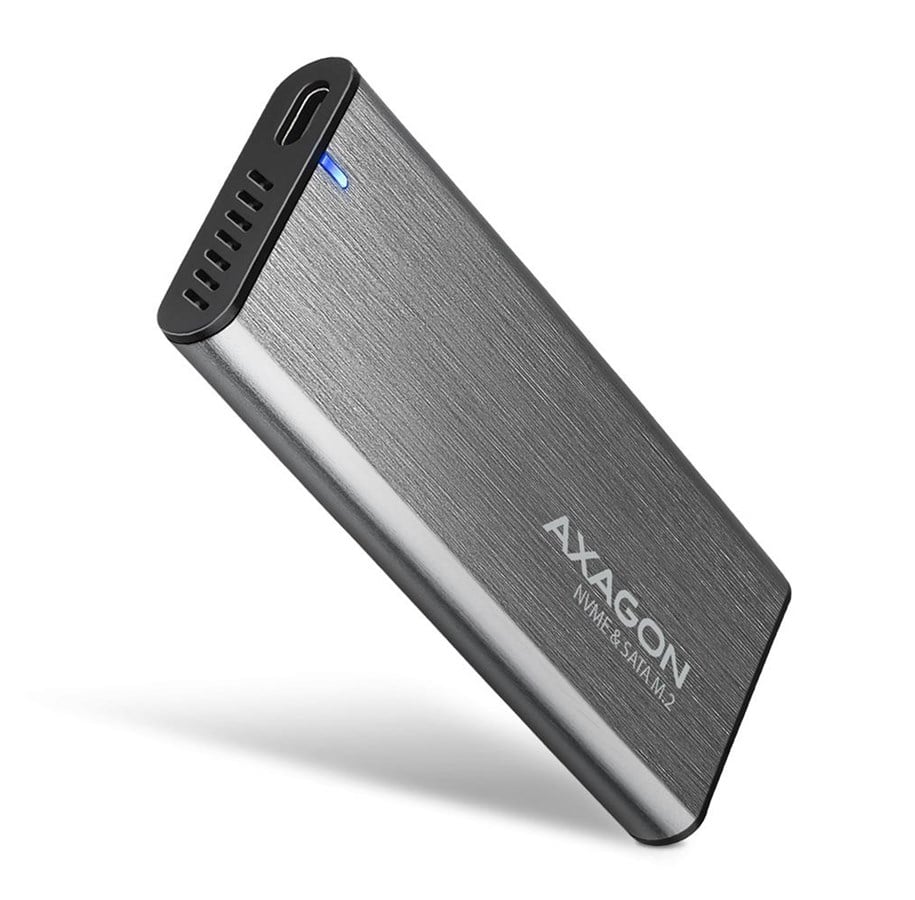

AXAGON SuperSpeed USB-C 10 Gbps Raw Box for NVMe & SATA M.2 SSD

Universal external AXAGON EEM2-SG2 RAW box with USB 3.2 Gen 2 interface is designed for M.2 NVMe or SATA SSD drives. The double-sided USB-C connector ensures a reliable connection. The package includes not only a USB-C → USB-C cable for connecting the box to a computer, but also a USB-C → USB-A adapter, allowing connection to any free USB port on a notebook.

The second-generation fast USB interface allows full use of modern M.2 SSD speeds, with a transfer rate of up to 10 Gb/s. The external M.2 box also supports UASP, TRIM, and reading of S.M.A.R.T. information to monitor disk health. Standby support is provided when idle.

A unique feature, thanks to the new chipset, is compatibility with both M.2 NVMe and SATA drives. You do not need to worry about the type of M.2 drive to use. The box supports three SSD card lengths – 42 mm, 60 mm, and 80 mm. M.2 cards can be single- or double-sided, and there is no limitation on SSD capacity.

Screwless opening simplifies assembly and disassembly of M.2 SSD drives. Drive replacement is quick and easy, expanding the box’s use for data migration, testing, etc. The outer metal housing is titanium silver with an elegant brushed finish to prevent fingerprints. The rounded design ensures comfortable handling.

The aluminium body, cooling holes, and thermal pad provide excellent cooling of the M.2 SSD, extending its lifespan and preventing performance throttling (Thermal Throttling).

Inserting an M.2 SSD into the box creates a fast, compact external drive suitable for computers, notebooks, mobile phones, and tablets.

Input:

• USB 3.2 Gen 2 (USB 3.1 Gen 2) SuperSpeed USB 10 Gbps
• Transfer speed up to 10 Gbit/s
• Connection via reversible USB type-C female connector

Device support:

• NVMe M.2 SSD drives
• SATA M.2 SSD drives
• Designed for M key and B+M key card formats
• NGFF 75-pin M key slot for M.2 drives

Other features:

• Compatible with USB 3.2 Gen 2, backward compatible with USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) and USB 2.0
• Supports transfer rates of 10 000 / 5 000 / 480 Mbit/s (SuperSpeed+ / SuperSpeed / HighSpeed)
• Supports M key or B+M key NVMe (PCIe) and SATA (AHCI) M.2 SSDs without capacity limits
• Supports M.2 drives of 2242, 2260, 2280 mm
• Supports single- and double-sided M.2 SSDs
• Complies with PCI Express Base Specification Revision 3.1a
• Complies with NVM Express 1.3 specification
• Complies with Serial ATA 3.2 (SATA/600), bit rates up to 6 Gb/s (600 MB/s)
• Complies with USB Mass Storage Class specification
• Total box bandwidth depends on the USB 3.2 Gen 2 interface (theoretical up to 10 Gbit/s)
• Real box bandwidth ~1000 MB/s (1 GB/s), limited by USB 3.2 Gen 2 interface
• Supports BOT (Bulk-Only Transport)
• Supports UASP for faster data transfer in Windows 8 and later
• Supports TRIM to reduce SSD performance degradation over time
• Supports S.M.A.R.T. monitoring of disk condition
• SSD boot support in external box
• Hot Plug support for connection while running
• Full Plug & Play support
• Standby support – drive sleeps after 5 minutes of inactivity
• Power via USB bus up to 900 mA is sufficient
• Blue LED indicates connection to computer USB and data transmission
• Durable aluminium body, cooling holes, and thermal pad improve M.2 SSD cooling
• Higher surface temperature is normal – aluminium body dissipates heat effectively
• USB 3.2 Gen 2 type-C female connector
• Includes USB type-C male / USB type-C male 20 cm cable and USB type-C female / USB type-A male adapter

Other data:

• External box dimensions: 94 × 41 × 10 mm
• External box weight: 35 g (without cable and M.2 SSD)

Supported operating systems:

• Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 and later (all 32-bit and 64-bit versions)
• Mac OS X 10.x and higher
• Linux with kernel 2.6.x and higher
• Android (OS and device support required)
• Note: For Windows 7, check OS support and drivers with M.2 SSD manufacturer

Package contains:

• USB-C 3.2 Gen 2 external box for SATA M.2 SSD
• USB-C → USB-C 20 cm cable
• USB-C → USB-A adapter
• 1 thermal conductive pad
• Mounting material
• Multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA
• Packed in a cardboard box with hanging hole
