Altech C6 valve radiator 22 - 500 x 1000 mm RAL 9016 White

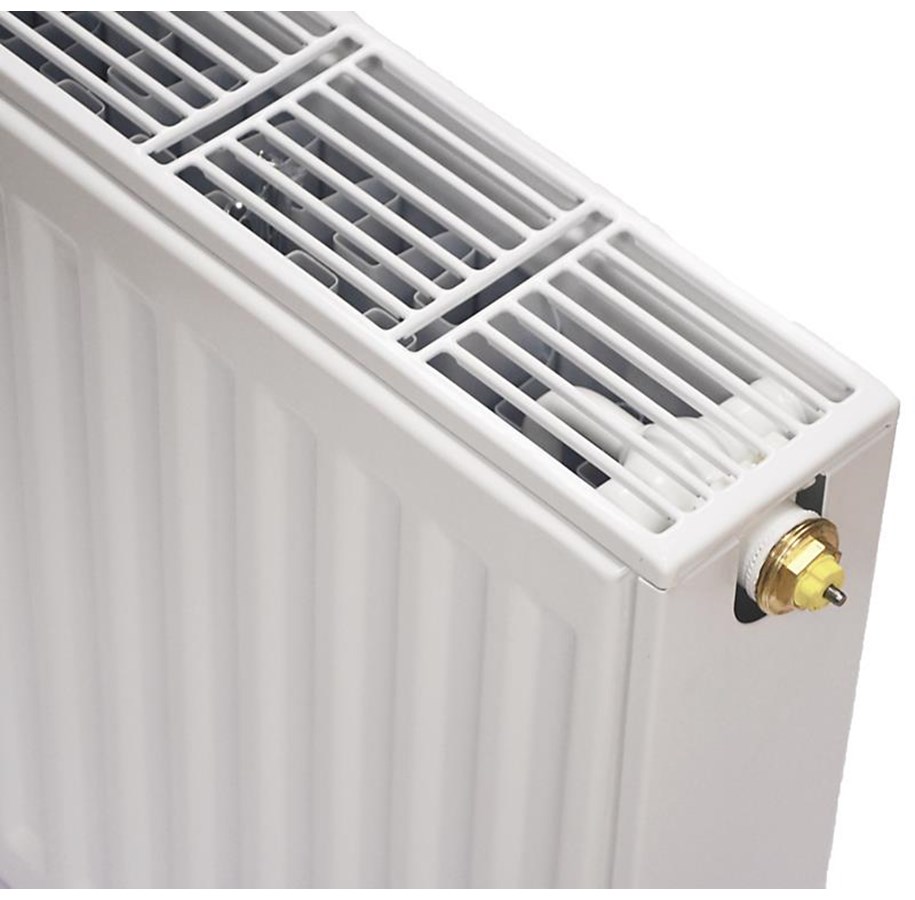

ALTECH C6 valve radiator is the modern interpretation of the classic panel radiator, where gables and top grill are mounted for an aesthetic and compact appearance.

• Valve insert: The radiator is delivered without a fitted valve insert.
• Suitable valve inserts include BD no. 403229315, 403229415 for Danfoss thermostats or 321909006 for IMI and thermostats
• Included: J-bearings, screws, plugs, air screw and assembly instructions.
• Drillings: 6 x ½'' standard (2 x ½'' sideways bottom drillings. The radiator is reversible.
• Carrying straps: No carrying straps.
• Warranty: 10 years, as long as the installation instructions are followed.
• Surface treatment: All radiators are degreased, phosphated, cataphoretically primed and powder coated in RAL white 9016.
• Max. operating pressure: 10 bar (tested at 13 bar).
• Max. operating temperature: 110 °C.
• Center distance: 50 mm
• It is recommended that the minimum distance from the bottom of the radiator to the floor is 120 mm.
• Heat distribution meter: Suitable for heat distribution meters, both electronic and heat evaporation meters according to EN834 & EN835.
• Standard: According to EN442-1:2014.
• Use the transition nipple to get to the 3/4'' external pipe no. 321959833
