Numer produktu : 2760041

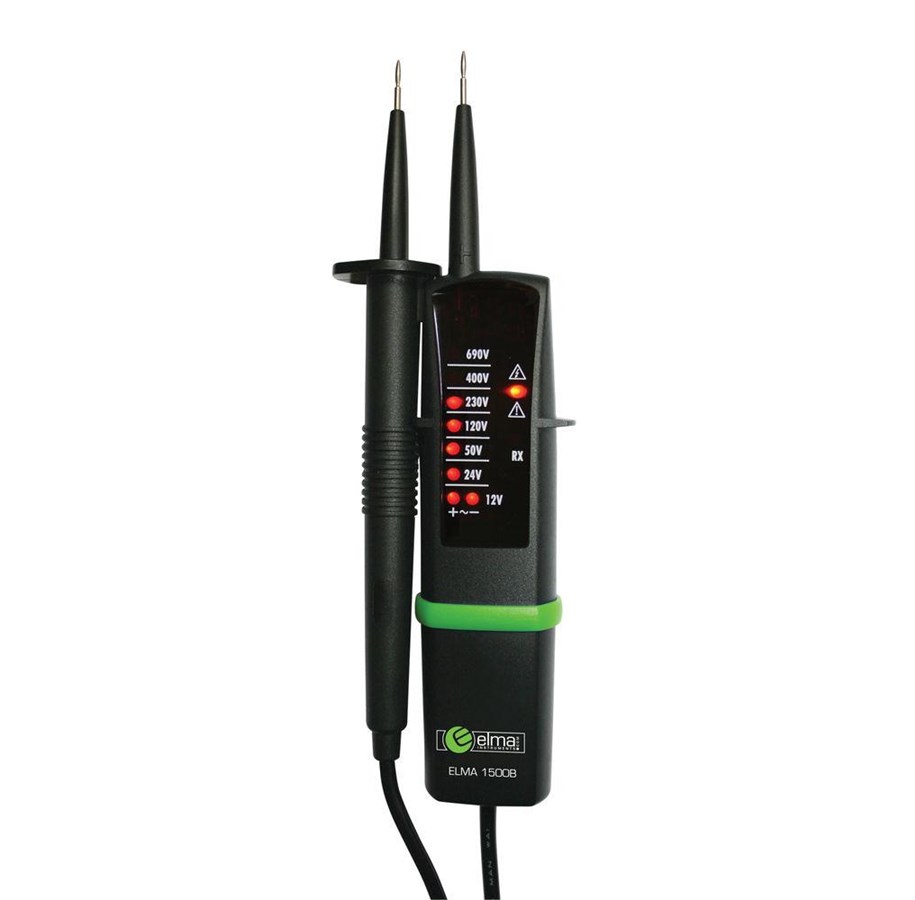

Elma Instruments Elma 1500b - voltage and contuinity tester

Elma1500B is a new small and handy tester with 3 Features: - Test voltage 12-690 V AC / DC, 2-pole with LED indication - Analysis Test with both audible and visual indication - Unipolar phase indication The tester has smart fastening testprobes with 19mm spacing to fit directly into the socket and enables one-hand operation. The instrument has no buttons and switches automatically between the different functions so that it can not be error controlled. Elma 1500B uses standard batteries, and for extra security work voltage test function even without batteries. Elma 1500B are in abundance class IP 54 and meet particular IEC 61010-1 CAT IV 300V and CAT III 600V and EN 61243-3. Technical data: Voltage test: 12, 24, 50 and 120, 230, 400 and 690 V AC / DC Frequency: 0-65 Hz Continuity: 0-200 k Voltage: 100-690 V Battery: 2 x 1,5V LR03 (Inclusive) Dimensions: 205x67x27 mm. Weight: 130 g

Czytaj wiecej
Na stanie
254,00 zł 206,50 zł netto
Koszt wysyłki od 19,00 zł
2 szt. Na stanie - czas dostawy 2-3 dni

GElma 1500B Voltage Tester Product Description: The Elma 1500B is a tester with three functions:- Voltage test 12-690 V AC/DC, two-pole with LED indication- Continuity test with both acoustic and optical indication- Pole finder, single-pole phase indicationThe instrument has no buttons and automatically switches between the different functions so that it cannot be operated incorrectly. The instrument uses standard batteries, and for extra safety, the voltage tester also works without batteries.The instrument is in protection class IP54 and complies with IEC 61010-1 CAT III 690V as well as EN 61243-3.TECHNICAL DATASVoltage indication: 12,24,50,120,230 ,400,and690 V AC/DCFrequencies:0 -65 HzContinuity:0 -200 kOhmPole finder :100 -690 VBattery :2x1.5V LR03 (included)Dimensions :210x40x23 mmWeight :125 g

Producent
Numer produktu
2760041
Model
5706445140145
Ean
5706445140145

Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
