Numer produktu : 2835650

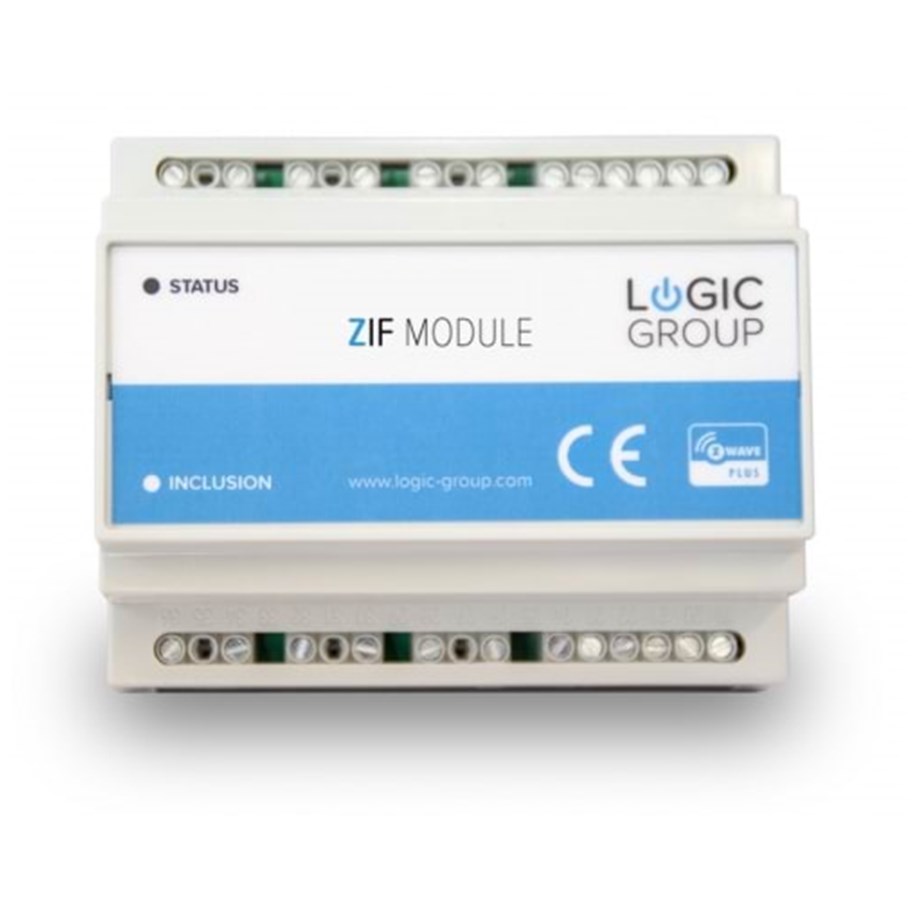

Logic Group ZIF5020 Z-Wave DIN-Rail Smart Module for Automation Systems

ZIF5020 a Z-Wave based device with 10 outputs and 4 inputs designed for mounting on a standard M36 DIN rail (EN50022). The 10 digital outputs (low-side switch) can be controlled freely over the Z-Wave network and used for various purposes. The 4 digital inputs can be connected to potential-free contacts, open-collector outputs, thereby enabling control of other Z-Wave based devices, such as relay modules, dimmers, curtain modules, etc. The 4 inputs of ZIF5020 enable activation of predefined scenes in a Z-Wave Controller unit. ZIF5020 can be powered with 10 – 24Vdc. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5020 has a LED indicator on the front for status indication.

Czytaj wiecej
829,00 zł 673,98 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 3-4 dni

ZIF5020 a Z-Wave based device with 10 outputs and 4 inputs designed for mounting on a standard M36 DIN rail (EN50022). The 10 digital outputs (low-side switch) can be controlled freely over the Z-Wave network and used for various purposes. The 4 digital inputs can be connected to potential-free contacts, open-collector outputs, thereby enabling control of other Z-Wave based devices, such as relay modules, dimmers, curtain modules, etc. The 4 inputs of ZIF5020 enable activation of predefined scenes in a Z-Wave Controller unit. ZIF5020 can be powered with 10 â?? 24Vdc. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5020 has a LED indicator on the front for status indication.

Producent
Numer produktu
2835650
Model
ZIF5020
Ean
5714090000080
Do strony producenta

Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
