Numer produktu : 2764820

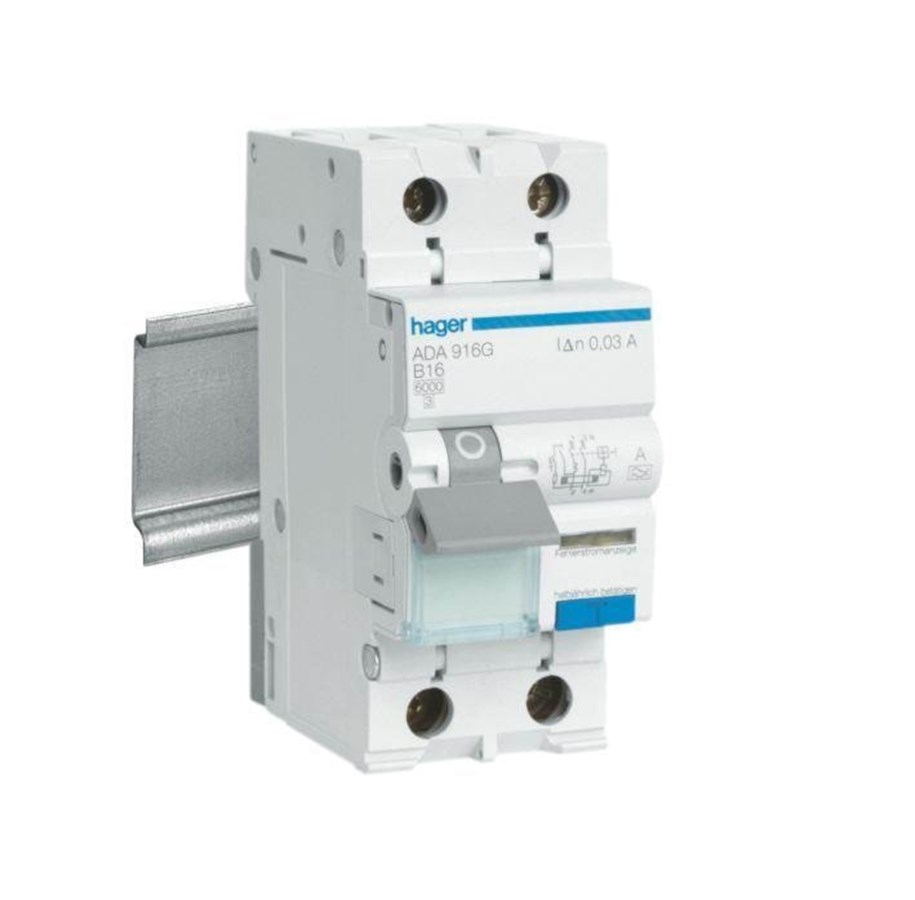

Hager Rcbo 1p+n 6ka c-16a 30ma a
RCBO 1P+N 6kA C-16A 30mA A Dane techniczne:Krzywa wyzwalania: CPole: 2 pola.Nominalne obciążenie (in): 16 ARated Voltage (Un): 230V +10%/-15%Nominalny prąd wyjściowy (Idn): 30mAKlasa czułości AFrequency:50HzRated breakdown:6kA in h.t. EN61009-1Ochrona IP: IP2x zamontowana w obudowie.Temperatura :30°C in h.t. EN61009-1Stopień zanieczyszczenia :2 in h.t. EN61009-1
471,00 zł
382,93 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 3-4 dni
HPFI / circuit breaker combo 1P+N 16A/C Product description: HPFI ADA966G / circuit breaker combo. 1P+N 16A/CKombi-automaten is a compact unit that ensures protection against overload, short-circuit and ground fault. It protects people and animals from electric shock in residential and commercial buildings. It also protects property from fire in case of insulation failure.Technical data:Trip curve: C Poles: 2 poles.The neutral is located on the right side.Rated current (In): 16 ARated voltage (Un): 230V +10%/-15%Rated tripping current (Idn): 30mA Sensitivity Class AFrequency:50Hz Rated breaking capacity :6kA according to EN61009-1IP protection : IP2x mounted in enclosure.Temperature :30°C according to EN61009-1Pollution degree :2 according to EN61009-1The combination breakers are all with one pole and neutral - in a width of two modules (36mm) Technical specifications: Rated current(A) :16 Trip curve:C Number of poles :1P+NFault tripping current(mA) :30
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
