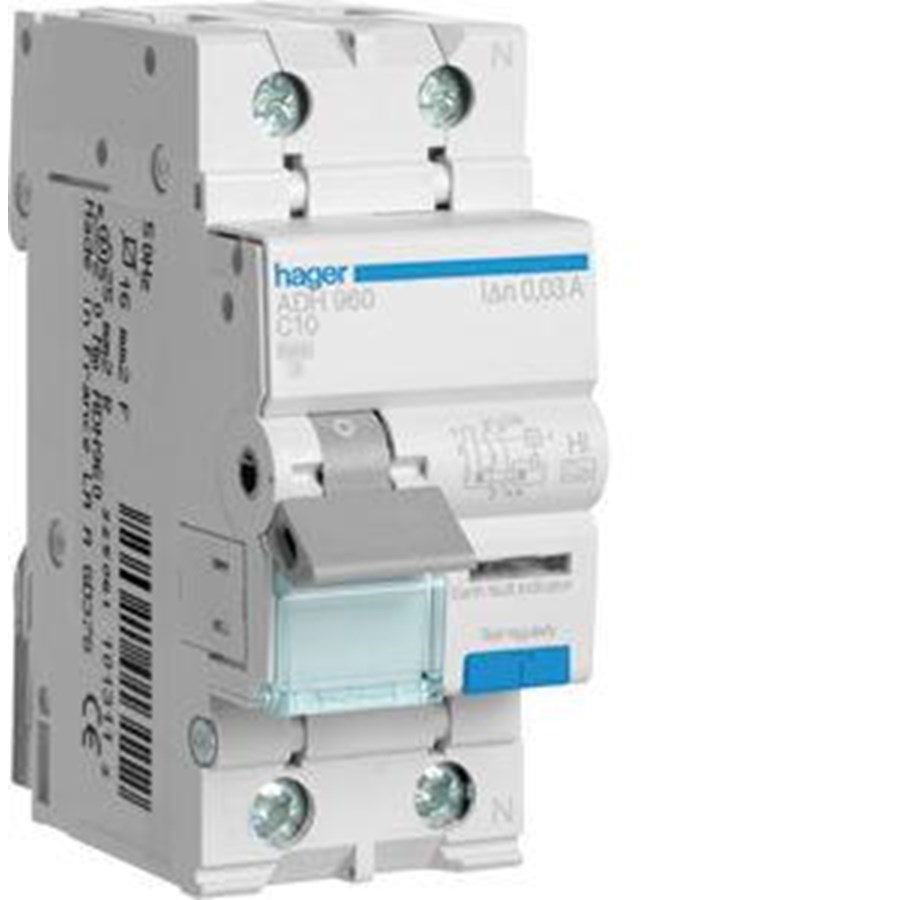

Hager Rcbo electronic rcd 1p+n 13a/c hi

HPFI / Combination circuit breaker 1P+N 13A/C Hi Product description: The combination circuit breaker is a compact unit that ensures protection against overload, short-circuit, and ground fault. It protects people and animals from electric shock in residential and commercial buildings. It also protects property from fire in case of insulation faults. Additionally, the Hi version protects against unwanted operational disturbances from pulsating and transient leakage currents from capacitive loads - lightning transients ol Technical data: Trip curve: C Poles: 2 poles The neutral is located on the right side Rated current (In): 13 A Rated voltage (Un): 230V +10%/-15% Nominal tripping current (Idn): 30mA Sensitivity Class A Frequency: 50Hz Nominal breaking capacity: 6kA according to EN61009-1 IP protection rating: IP2x mounted in enclosure Temperature: 30°C according to EN61009-1 Pollution degree :2 according to EN61009-1 The combination circuit breakers are all with one pole and neutral - in a two-module width (36mm) Technical specifications:Rated current (A):13Trip curve:CNumber of poles :1P+NFault tripping current(mA) :30
