Schneider Electric Acti9 switch isw 2p 40a 415vac 36mm

Acti9 iSW Switch Disconnectors
iSW switch-disconnectors for control of opening and closing of circuits under load
Rating: 20 to 125 A
VisiSafe for safe operation and maintenance work on circuit protection
Available options: state indication; sealable terminal shield, rotary handle, padlocking device

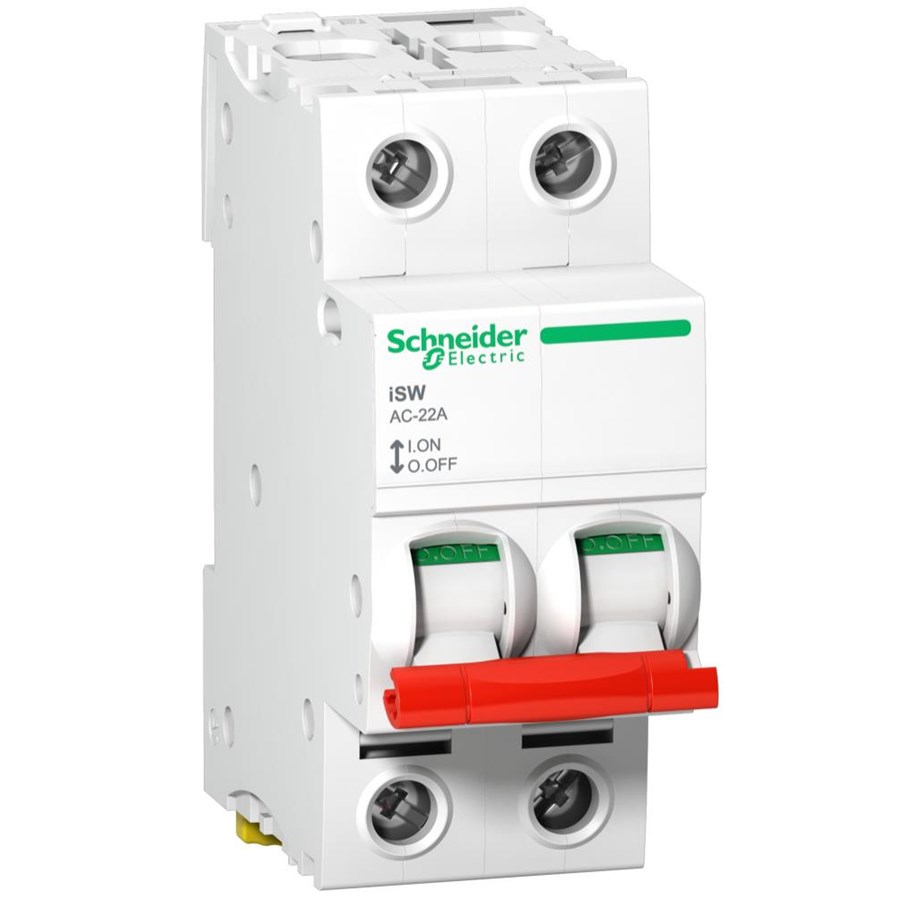

Schneider Electric Isolator Switch, 415V AC Operational Voltage, 82 (H) x 36 (W) x 75.5mm (D
) - Acti9 iSW Series
- A9S65240
When it comes to keeping things safe, this Schneider Electric isolator switch is your trusty sidekick. Just flick the lever to sever the connection between two circuits and the power source, preparing your equipment for maintenance and repairs. A highly visible on/off indicator ensures you know the unit's status at a glance. This switch-disconnector protects people and machinery through unexpected surges thanks to its rated impulse withstand voltage of 6kV. An IP20 rating means the enclosure is touch-proof and keeps out objects larger than 12mm.
Features & Benefits
- Delivers a long service life of 20,000 mechanical and 15,000 electrical cycles
- Mounts on a DIN rail for easy installation
- Operating temperature range of -25В°C to +60В°C for performance in extreme settings
- 40A current rating supports demanding systems
Applications
- Production lines
- Electrical distribution systems
- Leisure centres
Is this switch environmentally friendly
?
Yes, this product is free from toxic heavy metals, halogen, mercury and substances of very high concern, helping limit exposure to those potentially harmful elements.
