Numer produktu : 2953390
Schneider Electric Rccb earth leakage protection 4p 40a 30ma b-class speciel design for ev-electrical vehicle charger ac/dc
Schneider Electric A9Z51440 bez kategorii
Na stanie
1 192,01 zł
969,11 zł netto
Koszt wysyłki od 20,00 zł
1 szt.
Na stanie - czas dostawy 2-3 dni

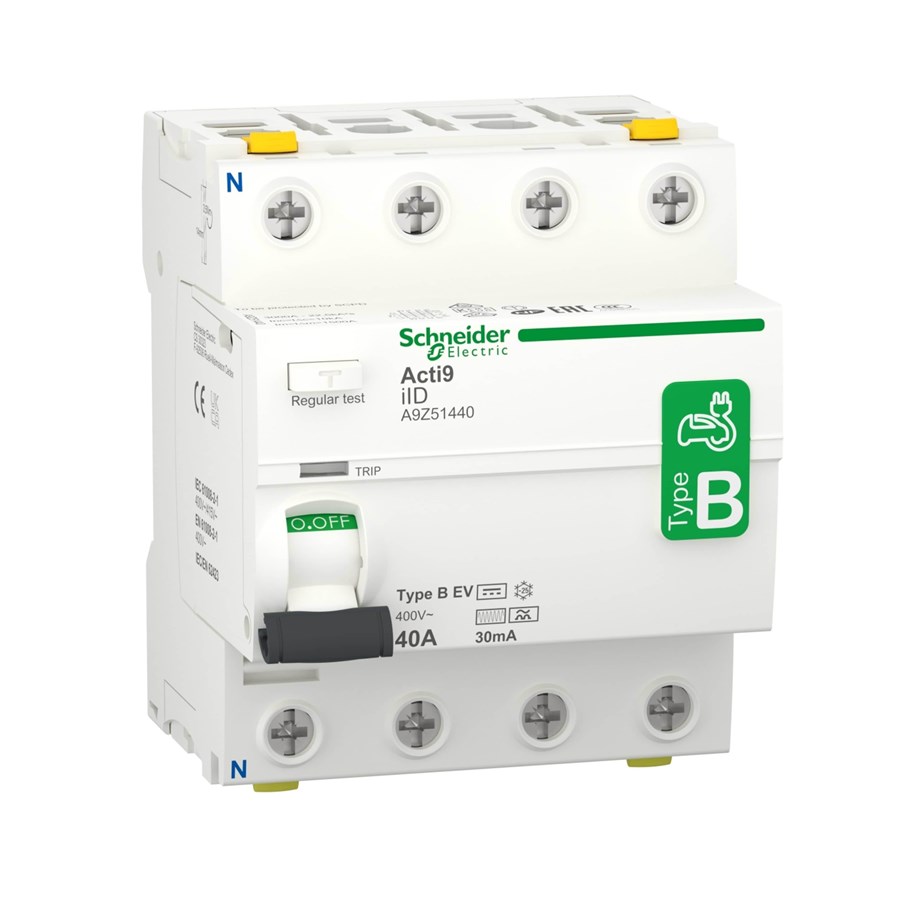

Schneider Electric RCCB, 40A Current Rating, 400V Voltage Rating - A9Z51440
This RCCB (Residual Current Circuit Breaker) is part of the Acti9 range, providing effective earth leakage protection primarily for electric vehicle charging applications. With dimensions of 79x72x88mm, this compact unit is designed for easy DIN rail mounting, enhancing accessibility and installation efficiency.
Features & Benefits
- 40A current rating for demanding applications
- 4-pole configuration allows for complex circuit arrangements
- Provides instantaneous tripping for immediate safety response
- Rated for 400V AC, compatible with high voltage standards
- Double terminals allow for flexible wire connections
Applications
- Suitable for installation with electric vehicle chargers
- Used in environments requiring enhanced electrical safety
- Effective in areas with moisture and dust exposure
Can it operate in varying temperature ranges?
Yes, it operates effectively within -25В°C to 60В°C.
Will it withstand extreme electrical conditions?
Yes, it has a high breaking capacity of up to 10kA for added protection.
Can it handle multiple types of wire connections?
Yes, it supports both rigid and flexible wire connections.
This RCCB (Residual Current Circuit Breaker) is part of the Acti9 range, providing effective earth leakage protection primarily for electric vehicle charging applications. With dimensions of 79x72x88mm, this compact unit is designed for easy DIN rail mounting, enhancing accessibility and installation efficiency.
Features & Benefits
- 40A current rating for demanding applications
- 4-pole configuration allows for complex circuit arrangements
- Provides instantaneous tripping for immediate safety response
- Rated for 400V AC, compatible with high voltage standards
- Double terminals allow for flexible wire connections
Applications
- Suitable for installation with electric vehicle chargers
- Used in environments requiring enhanced electrical safety
- Effective in areas with moisture and dust exposure
Can it operate in varying temperature ranges?
Yes, it operates effectively within -25В°C to 60В°C.
Will it withstand extreme electrical conditions?
Yes, it has a high breaking capacity of up to 10kA for added protection.
Can it handle multiple types of wire connections?
Yes, it supports both rigid and flexible wire connections.
Producent
Numer produktu
2953390
Model
A9Z51440
Ean
3606489502799
