Numer produktu : 2952331

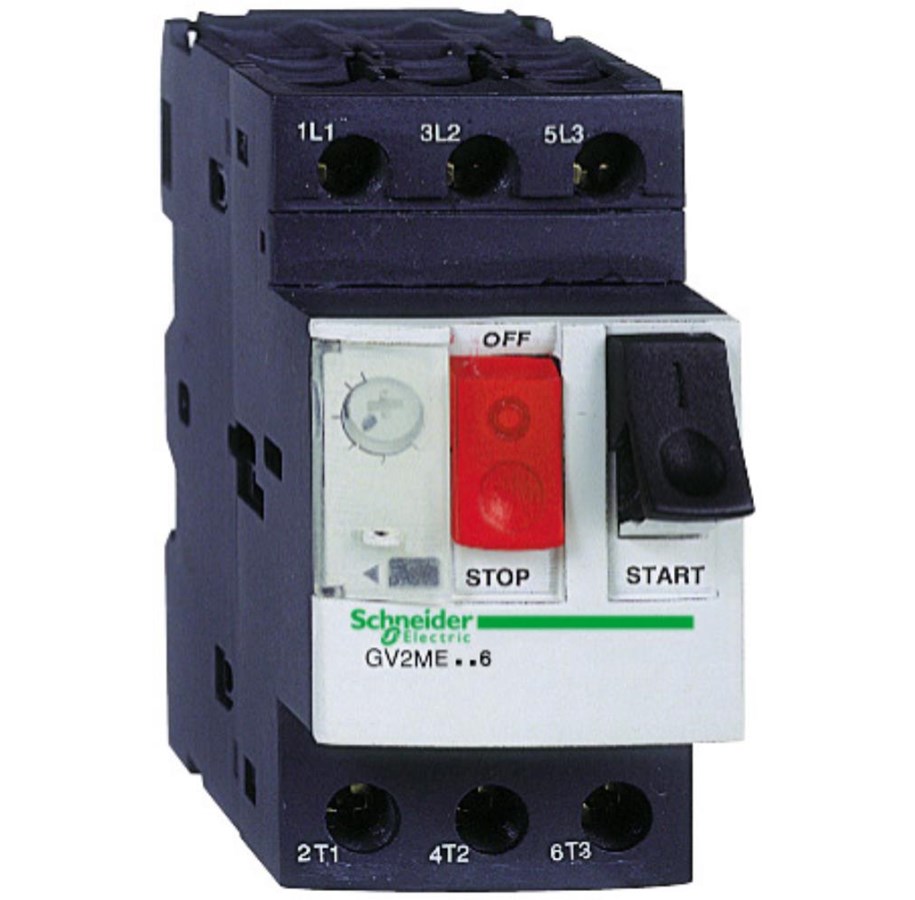

Schneider Electric Tesys gv motor circuit breaker gv2me10 thermal-magnetic 4-6.3a 2.2kw@400v icu100ka pushbutton
Schneider Electric TeSys GV2 wyłącznik instalacyjny 3
295,00 zł
239,84 zł netto
Koszt wysyłki od 19,00 zł
W magazynie zewnętrznym, czas dostawy 3-4 dni
Manual and local control, when the motor circuit-breaker is used on its own, and automatic and remote control when combined with a contactor
Motor protection provided by thermal-magnetic devices built into the circuit-breaker
No live parts are accessible to direct finger contact
The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost
The addition of a shunt trip enables remote control of tripping
The control for the open or enclosed motor circuit-breaker can be locked in the “N/C" position using 3 padlocks
Connectors: spring terminal, screw clamp
Motor protection provided by thermal-magnetic devices built into the circuit-breaker
No live parts are accessible to direct finger contact
The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost
The addition of a shunt trip enables remote control of tripping
The control for the open or enclosed motor circuit-breaker can be locked in the “N/C" position using 3 padlocks
Connectors: spring terminal, screw clamp
Producent
Numer produktu
2952331
Model
GV2ME10
Ean
3389110343113
Do strony producenta
Liczba biegunów
3
Stopień ochrony IP
IP20
Kolor produktu
Czarny, Biały
Certyfikaty
EN 60204
IEC 60947-1
IEC 60947-2
IEC 60947-4-1
NF C 63-120
NF C 63-650
NF C 79-130
UL 508
VDE 0113
VDE 0660
CSA C22.2
Zakres temperatur (eksploatacja)
-20 - 60 °C
Zakres temperatur (przechowywanie)
-40 - 80 °C
Dopuszczalna wysokość podczas eksploatacji (n.p.m.)
0 - 2000 m
Szerokość produktu
45 mm
Głębokość produktu
78,2 mm
Wysokość produktu
89 mm
Waga produktu
260 g
Certyfikaty zgodności
RoHS
Cechy
Liczba biegunów
3
Stopień ochrony IP
IP20
Kolor produktu
Czarny, Biały
Certyfikaty
EN 60204
IEC 60947-1
IEC 60947-2
IEC 60947-4-1
NF C 63-120
NF C 63-650
NF C 79-130
UL 508
VDE 0113
VDE 0660
CSA C22.2
Warunki pracy
Zakres temperatur (eksploatacja)
-20 - 60 °C
Zakres temperatur (przechowywanie)
-40 - 80 °C
Dopuszczalna wysokość podczas eksploatacji (n.p.m.)
0 - 2000 m
Waga i rozmiary
Szerokość produktu
45 mm
Głębokość produktu
78,2 mm
Wysokość produktu
89 mm
Waga produktu
260 g
Szczegóły techniczne
Certyfikaty zgodności
RoHS
