Schneider Electric Tesys gv motor circuit breaker gv2me14 thermal-magnetic 6

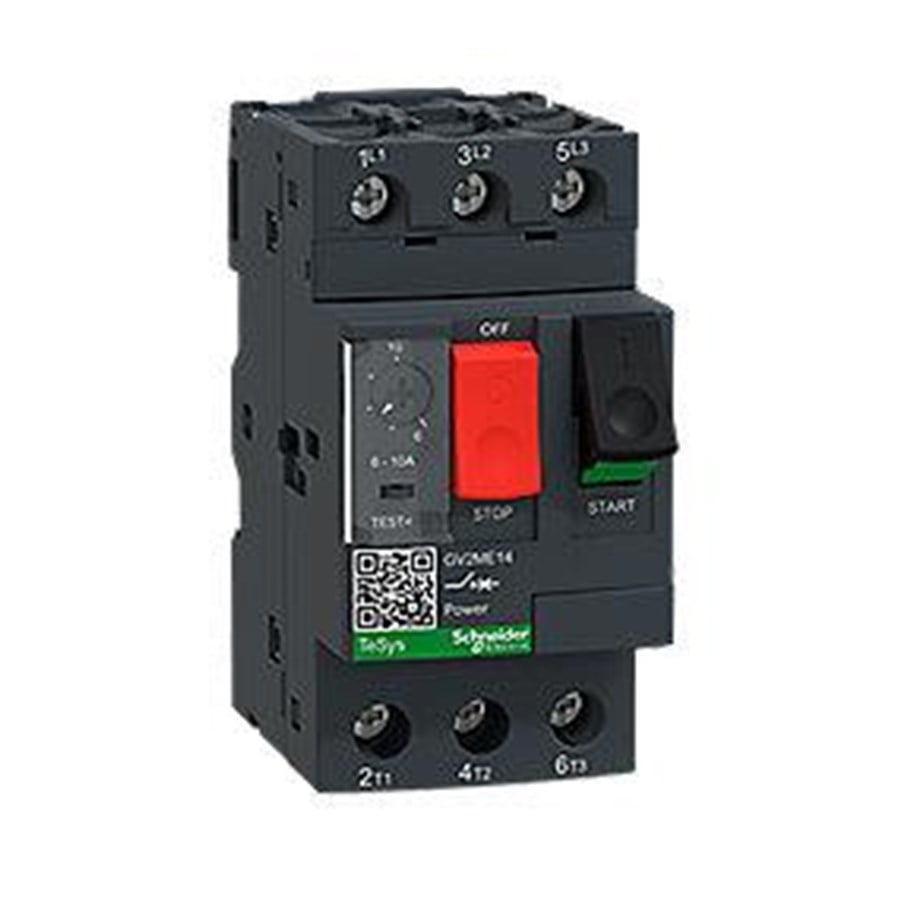

GV2ME14 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 3-4kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 6-10A, magnetic tripping at 12xIn and high breaking capacity Icu 100kA@400V. Start-stop control by push-button guaranteed for 100 000 cycles AC-3 415V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Complete motor protection in a single device : short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution . Light and compact, 45mm wide, for DIN-rail and panel mounting. Manual control with push-buttons for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signalling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with screw clamp terminals, also available with springs and lugs terminals. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV2G)
