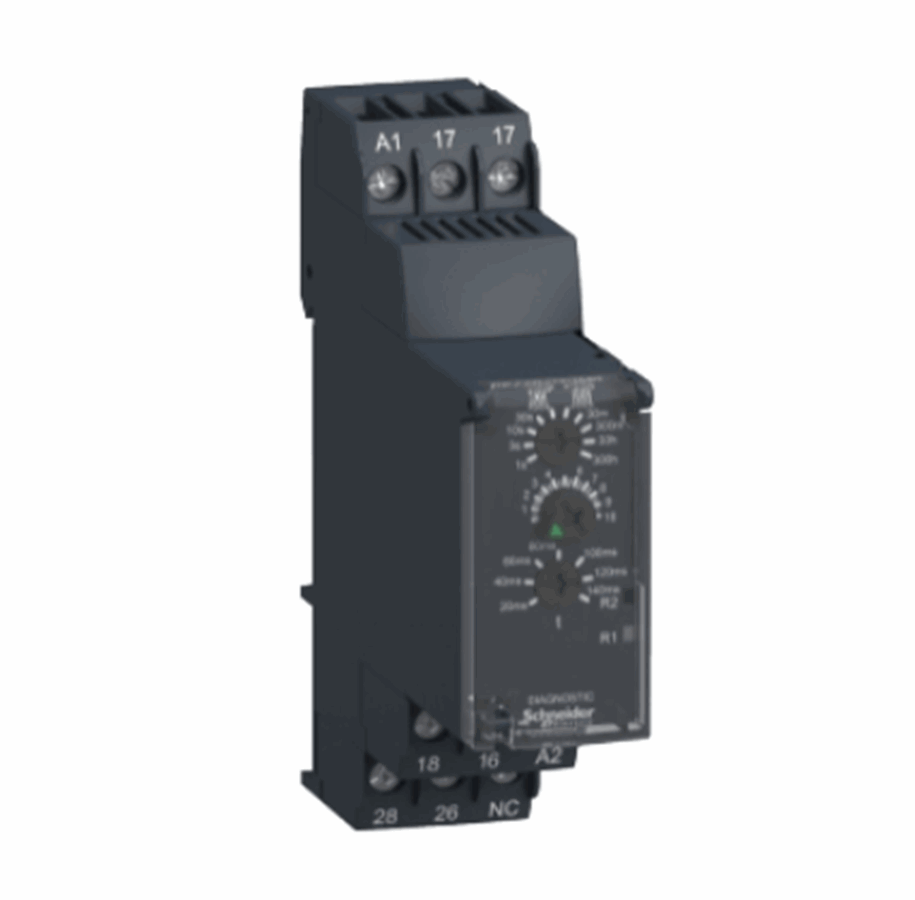

Schneider Electric Timer star-delta 0.5s-300s 2 c/o 8a 24-240v

The Zelio RE22 range brings to market 2 new key improvements.- The backlight LED dials for adjustment makes it easy to use in any condition, even in dusty or poorly lit enviroments. - The built-in testbutton simplifies commissioning and troubleshooting by a push of a button.RE22R2QGMR has a star-delta function and have 2 C/O contacts with an adjustable pause between star and delta state.At power up the timer starts the startup time which can be adjusted on the 2 top dials and R1 changes state.When the startup time is reached, R1 returns to its initial state and the pause time set by the bottom dial is started.When the pause time is reached, R2 changes state. The timer has 2 C/O contactsThe timer is supplied by 24 -240V AC/DC which makes it usable in most applications.The time range can be selected between 10 ranges and adjusted within by the 2 dials on the top of the front.Selectable time ranges:0-1 second0-3 seconds0-10 seconds0-30 seconds0-100 seconds0-300 seconds0-30 minutes0-300 minutes0-30 hours0-300 hoursPause time can be set by the bottom dial and can be between 20 and 140 ms.The LED's on the front shows the status of the contacts.The testbutton force the output when the timer is powered on.
