Numer produktu : 2951264
Siemens Circuit-breaker spring-l. conn. 12.5a 3rv2011-1ka20
Siemens 3RV2011-1KA20 bez kategorii
343,00 zł
278,86 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 3-4 dni

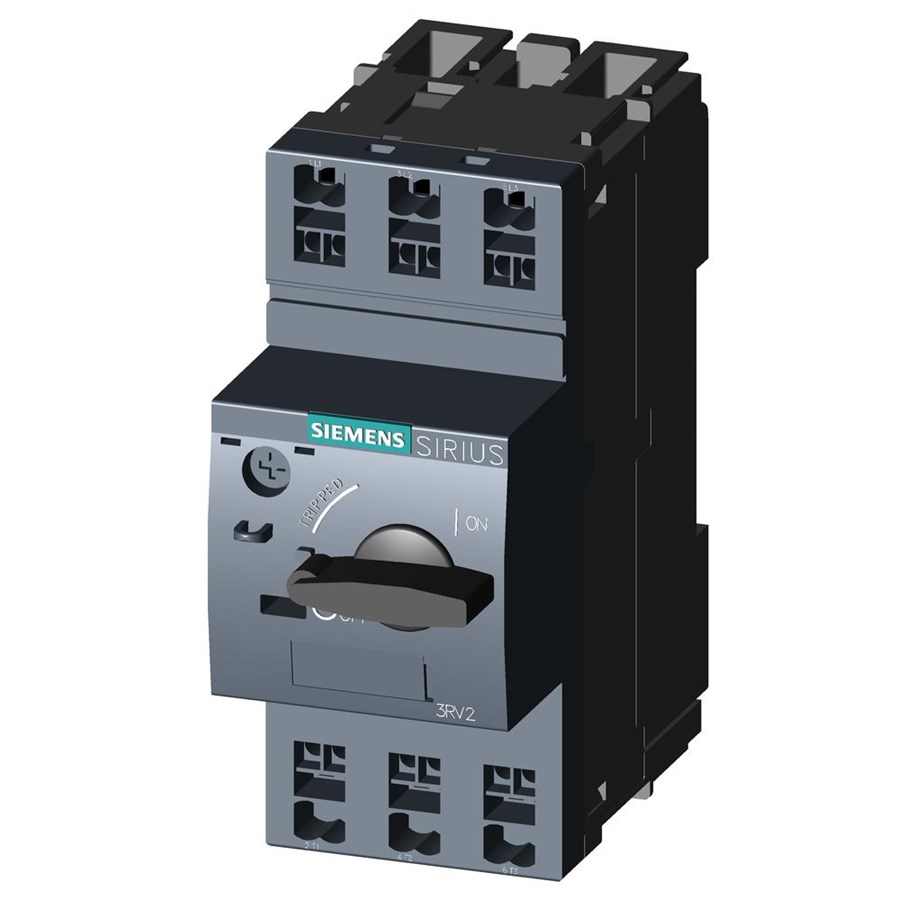

Siemens Motor Protection Circuit Breaker, Rail Mounting, 100kA Maximum Breaking Capacity - SIRIUS Innovation Series - 3RV2011-1KA20
Catch common faults before they reach your motor-driven system with this motor protection circuit breaker from Siemens. Its thermomagnetic trip mechanism breaks the attached circuit when it receives overcurrent or excessive torque, reacting to problems as soon as they crop up. With an adjustable current setting between 9 and 12.5A, the unit flexes to fit its power supply for versatile protection. Mounting is done in no time, as it simply clips onto a DIN rail. By stopping short-circuit current up to 100kA, this device shuts down heavy overloads without a snag. Circuit breakers like this are essential bits of kit in manufacturing setups and the automotive industry.
Features & Benefits
- Trips up to 15 times an hour to handle demanding applications
- Selector switch reset ensures speedy restart after tripping
- Spring-loaded terminals keep a tight hold on conductors if there's movement
- Low power loss of 7W for energy-efficient protection
- Safe for use in a wide temperature range between -20В°C and +60В°C
What service life can I expect from this circuit breaker?
This unit lasts for around 100,000 mechanical cycles, so it's a reliable component for long-lasting motor protection.
Catch common faults before they reach your motor-driven system with this motor protection circuit breaker from Siemens. Its thermomagnetic trip mechanism breaks the attached circuit when it receives overcurrent or excessive torque, reacting to problems as soon as they crop up. With an adjustable current setting between 9 and 12.5A, the unit flexes to fit its power supply for versatile protection. Mounting is done in no time, as it simply clips onto a DIN rail. By stopping short-circuit current up to 100kA, this device shuts down heavy overloads without a snag. Circuit breakers like this are essential bits of kit in manufacturing setups and the automotive industry.
Features & Benefits
- Trips up to 15 times an hour to handle demanding applications
- Selector switch reset ensures speedy restart after tripping
- Spring-loaded terminals keep a tight hold on conductors if there's movement
- Low power loss of 7W for energy-efficient protection
- Safe for use in a wide temperature range between -20В°C and +60В°C
What service life can I expect from this circuit breaker?
This unit lasts for around 100,000 mechanical cycles, so it's a reliable component for long-lasting motor protection.
Producent
Numer produktu
2951264
Model
3RV2011-1KA20
Ean
4011209724389
Do strony producenta
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
