Numer produktu : 3398567
Broadcom HBA 9600W-16e
Kontroler pamięci, 16 kanał, SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe), PCIe 4.0 x16
6 743,00 zł
5 482,11 zł netto
Koszt wysyłki od 20,00 zł
Produkt sprowadzany, czas dostawy 22-24 dni

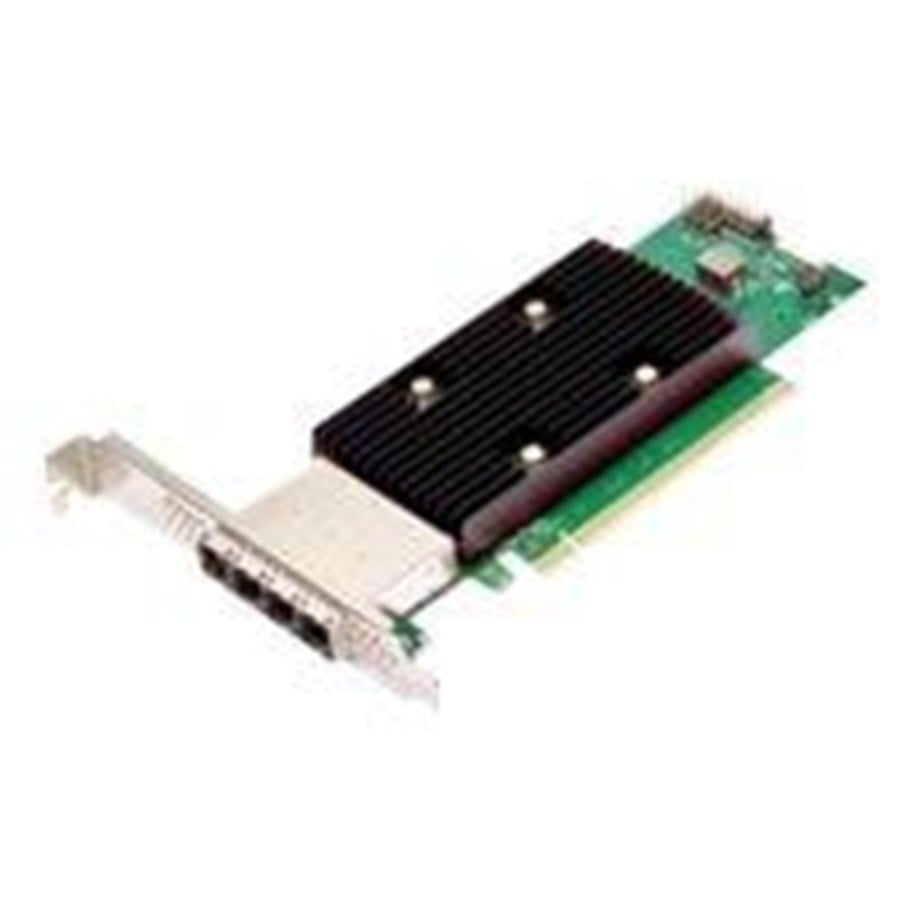

The Broadcom HBA 9600W-16e is a storage controller designed to enhance system performance and reliability. With support for both SATA 6 Gb/s and SAS 12 Gb/s interfaces, this device efficiently manages data transfers, ensuring high-speed connections. The internal SFF-8644 connectors and PCIe 4.0 technology facilitate seamless integration into various systems, making it suitable for storage-intensive applications. Operating in a temperature range of 0°C to 55°C and a humidity range from 5% to 90%, the HBA 9600W-16e is built to function in diverse environments, reinforcing its adaptability for various setups. This storage controller's plug-in card form factor is designed for installation, with 16 channels and a power consumption of 18 W during operation for energy efficiency. The device boasts a Mean Time Between Failures (MTBF) of 5,000,000 hours, providing reliability for critical data operations. Compliance with multiple standards, including FCC Class B and RoHS, reflects a commitment to quality and environmental responsibility.
Producent
Numer produktu
3398567
Model
05-50108-00
Ean
830343007745
Do strony producenta
Opis produktu
Broadcom HBA 9600W-16e - kontroler pamięci - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x16
Rodzaj urządzenia
Kontroler pamięci - karta wkładana do gniazda
Typ magistrali
PCIe 4.0 x16
Interfejs
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Ilość kanałów
16
Wymagania systemowe
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Wymiary (szer./głęb./wys.)
16.765 cm x 6.89 cm
Ogólne
Rodzaj urządzenia
Kontroler pamięci - karta wkładana do gniazda
Host Bus
PCIe 4.0 x16
Kontroler pamięci masowej
Interfejs
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Ilość kanałów
16
Rozszerzenie / połączenie
Interfejsy
4 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - SFF-8644 (wewnętrzny)
Różne
Akcesoria w zestawie
Niskoprofilowy wspornik
MTBF
5 000 000 godziny
Zgodność z normami
Certyfikat FCC Class B, UL, BSMI, EN55024, EMC, RoHS, WEEE, ICES, CNS 13438, KN32, KN35, CISPR 32, EN 55032, CISPR 32:2015 Class A, EN 55035, VCCI-CISPR 32:2016, EN 55032:2015+AC:2016 Class A, CNS 15663, EN 55035:2017/A11:2020, CMIM
Zasilanie
Zużycie energii w trybie aktywności
18 wat
Oprogramowanie / Wymagania systemowe
Wymagany system operacyjny
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Wymiary i waga
Głębokość
16.765 cm
Wysokość
6.89 cm
Parametry środowiska
Minimalna temperatura pracy
0 °C
Maksymalna temperatura pracy
55 °C
Dopuszczalna wilgotność
5–90% (niekondensująca)
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
