Numer produktu : 2860824

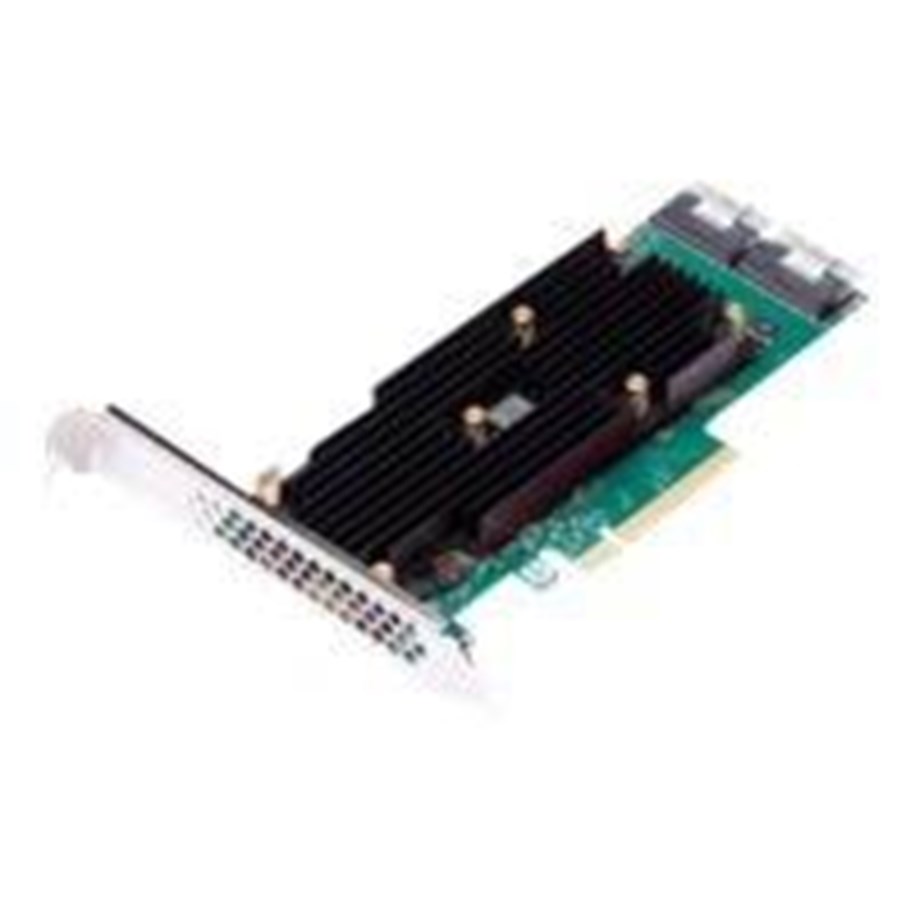

Broadcom MegaRAID 9560-16i
Kontroler pamięci (RAID), 16 kanał, SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe), RAID 0, 1, 5, 6, 10, 50, JBOD, 60, PCIe 4.0 x8
7 848,00 zł
6 380,49 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 6-8 dni
The MegaRAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today's ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes:With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.
Producent
Numer produktu
2860824
Model
05-50077-00
Ean
830343007462
Do strony producenta
Opis produktu
Broadcom MegaRAID 9560-16i - kontroler pamięci (RAID) - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8
Rodzaj urządzenia
Kontroler pamięci (RAID) - karta wkładana do gniazda
Typ magistrali
PCIe 4.0 x8
Interfejs
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Wielkość bufora
8 GB
Obsługiwane urządzenia
Macierz dyskowa (RAID)
Ilość kanałów
16
Maksymalna ilość urządzeń pamięci
240
Poziom RAID
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Wymagania systemowe
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Wymiary (szer./głęb./wys.)
15.565 cm x 6.89 cm
Ogólne
Rodzaj urządzenia
Kontroler pamięci (RAID) - karta wkładana do gniazda
Host Bus
PCIe 4.0 x8
Kontroler pamięci masowej
Interfejs
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Wielkość bufora
8 GB
Obsługiwane urządzenia
Macierz dyskowa (RAID)
Ilość kanałów
16
Maksymalna ilość urządzeń pamięci
240
Poziom RAID
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Rozszerzenie / połączenie
Interfejsy
2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (wewnętrzny)
Różne
Cechy
Technologia Tri-Mode SerDes
MTBF
3,000,000 godziny
Zgodność z normami
Certyfikat FCC Class B, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438
Zasilanie
Zużycie energii w trybie aktywności
13.21 wat
Oprogramowanie / Wymagania systemowe
Wymagany system operacyjny
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Wymiary i waga
Głębokość
15.565 cm
Wysokość
6.89 cm
Parametry środowiska
Minimalna temperatura pracy
0 °C
Maksymalna temperatura pracy
55 °C
Dopuszczalna wilgotność
5–90% (niekondensująca)
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
