Numer produktu : 2436435

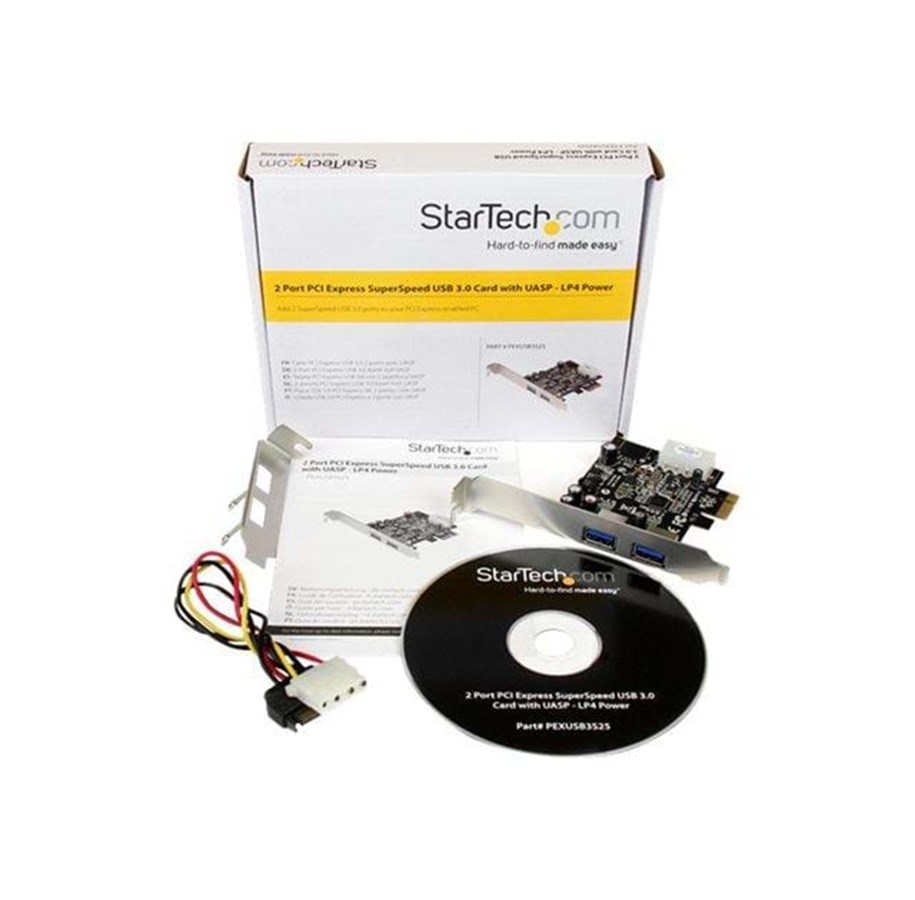

StarTech.com 2 Port PCI Express (PCIe) USB 3.0 Card with UASP
LP4 Power, Adapter USB, PCIe, USB 3.0 x 2, dla P/N: USB3S2ESATA3
144,00 zł
117,07 zł netto
Koszt wysyłki od 19,00 zł
W magazynie zewnętrznym, czas dostawy 4-5 dni
Add 2 SuperSpeed USB 3.0 ports to your PCI Express-enabled PC. The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Producent
Numer produktu
2436435
Model
PEXUSB3S25
Ean
0065030854603
Do strony producenta
Opis produktu
Startech 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power - Dual Port USB 3 PCIe Controller (PEXUSB3S25) - adapter USB - PCI Express x1 - USB 3.0 x 2
Rodzaj urządzenia
Adapter USB
Typ obudowy
Karta wkładana do gniazda
Typ interfejsu (szyny)
PCI Express x1
Porty
USB 3.0 x 2
Wymiary (szer./głęb./wys.)
1.9 cm x 6.7 cm x 12.1 cm
Waga
90 g
Protokół komunkacyjny danych
USB, USB 2.0, USB 3.0
Szybkość transmisji danych
5 Gbps
Zgodność z normami
USB 1.1, USB 2.0, USB 3.0
Wymagania systemowe
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux, tylko wersje 2.6.31-4.11.x LTS
Zaprojektowany dla
P/N: CFASTRWU3, S251SMU33EP, ST103008U2C, ST3300GU3B, ST4300U3C1, ST4300U3C1B, ST4300U3C3, ST53004U1C, ST7300U3M, ST93007U2C, UNI251BMU33, USB3S2ESATA3
Ogólne
Rodzaj urządzenia
Adapter USB
Typ obudowy
Karta wkładana do gniazda
Typ interfejsu (szyny)
PCI Express x1
Praca w sieci
Porty
USB 3.0 x 2
Technologia podłączania
Przewodowa
Protokół komunkacyjny danych
USB, USB 2.0, SuperSpeed USB 3.0
Szybkość transmisji danych
5 Gbps
Zgodność z normami
USB 1.1, USB 2.0, USB 3.0
Rozszerzenie / połączenie
Interfejsy
2 x USB 3.0 - USB 9 pin Typ A (zewnętrzny)
Różne
Akcesoria w zestawie
Wspornik niskoprofilowy
Zgodność z normami
FCC, RoHS
Oprogramowanie / Wymagania systemowe
Dołączone oprogramowanie
Sterowniki i programy użytkowe
Wymagany system operacyjny
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux, tylko wersje 2.6.31-4.11.x LTS
Wymiary i waga
Szerokość
1.9 cm
Głębokość
6.7 cm
Wysokość
12.1 cm
Waga
90 g
Parametry środowiska
Minimalna temperatura pracy
0 °C
Maksymalna temperatura pracy
50 °C
Dopuszczalna wilgotność
5 - 85%
Informacja o kompatybilnosci
Zaprojektowany dla
P/N: CFASTRWU3, S251SMU33EP, ST103008U2C, ST3300GU3B, ST4300U3C1, ST4300U3C1B, ST4300U3C3, ST53004U1C, ST7300U3M, ST93007U2C, UNI251BMU33, USB3S2ESATA3
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
