Numer produktu : 2293322

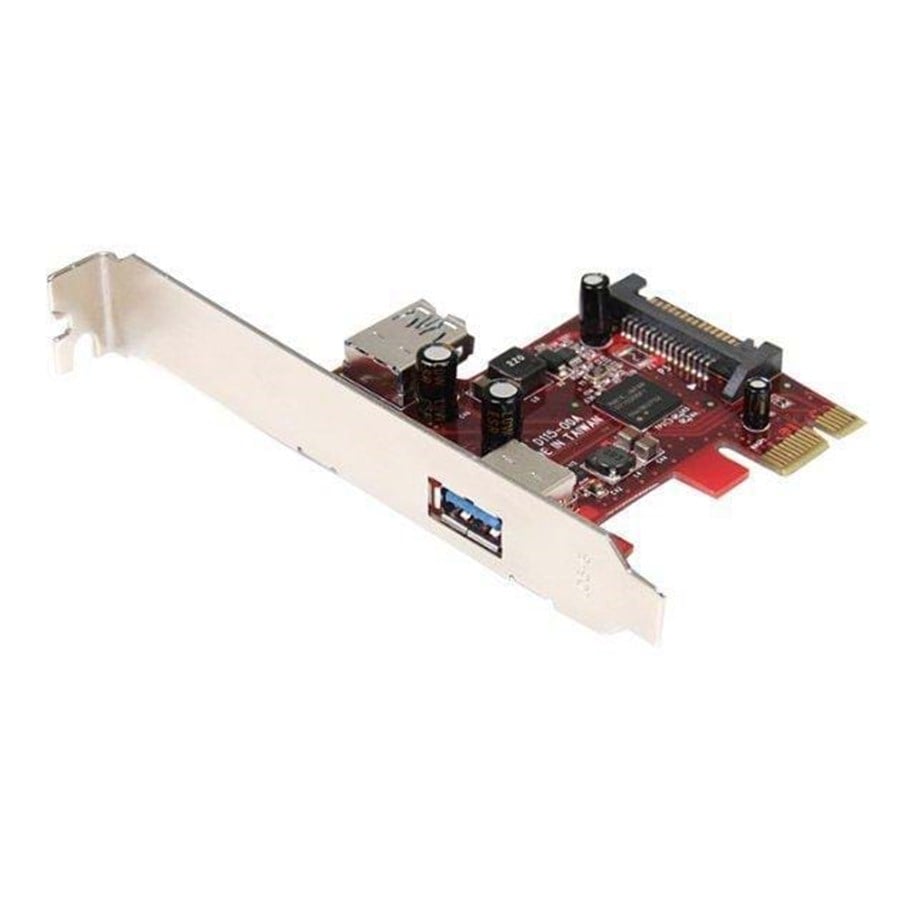

StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card
1 Internal 1 External, Adapter USB, PCIe 2.0 niski profil, USB, USB 2.0, USB 3.0, 2 porty, dla P/N: SM2NGFFMBU33
209,00 zł
169,92 zł netto
Koszt wysyłki od 19,00 zł
W magazynie zewnętrznym, czas dostawy 6-7 dni
Add one internal and one external SuperSpeed USB 3.0 to your PC. The PEXUSB3S11 PCI Express USB 3.0 Card lets you add one internal, and one external USB 3.0 port to your PC through a PCI Express slot.Featuring a native NEC PCI Express host controller chipset, the new USB 3.0 standard supports transfer rates of up to 5Gbps, while still providing backward compatibility with older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices. The inclusion of an internal USB 3.0 connection provides the added benefit of compatibility with USB 3.0-based internal storage solutions or front-bay hubs.Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.For bus-powered USB devices, this PCIe USB 3.0 card includes an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 devices (500mA for USB 2.0).UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Producent
Numer produktu
2293322
Model
PEXUSB3S11
Ean
0065030840040
Do strony producenta
Opis produktu
Startech 2 port PCI Express SuperSpeed USB 3.0 Card with UASP Support - 1 Internal 1 External - Dual Port PCIe USB 3.0 Adapter (PEXUSB3S11) - adapter USB - PCIe 2.0 - 2 porty
Rodzaj urządzenia
Adapter USB
Typ obudowy
Karta wkładana do gniazda - niski profil
Typ interfejsu (szyny)
PCI Express 2.0
Wymiary (szer./głęb./wys.)
7.6 cm x 12.1 cm x 1.9 cm
Waga
40 g
Ilość portów
2 porty
Protokół komunkacyjny danych
USB, USB 2.0, USB 3.0
Szybkość transmisji danych
5 Gbps
Zgodność z normami
USB 1.1, USB 2.0, USB 3.0
Wymagania systemowe
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2
Zaprojektowany dla
Startech 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD and Surge Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expansion Hub with Locking Ports - Metal Construction (5G4AINDNP-USB-A-HUB)
Ogólne
Rodzaj urządzenia
Adapter USB - 2 porty
Typ obudowy
Karta wkładana do gniazda - niski profil
Typ interfejsu (szyny)
PCI Express 2.0
Praca w sieci
Technologia podłączania
Przewodowa
Protokół komunkacyjny danych
USB, USB 2.0, SuperSpeed USB 3.0
Szybkość transmisji danych
5 Gbps
Zgodność z normami
USB 1.1, USB 2.0, USB 3.0
Rozszerzenie / połączenie
Interfejsy
1 x USB 3.0 - USB 9 pin Typ A (zewnętrzny)
1 x USB 3.0 - USB 9 pin Typ A (wewnętrzny)
1 x USB 3.0 - USB 9 pin Typ A (wewnętrzny)
Zgodne sloty
1 x PCI Express 2.0
Różne
Akcesoria w zestawie
Wspornik niskoprofilowy
Zgodność z normami
FCC, RoHS
Oprogramowanie / Wymagania systemowe
Wymagany system operacyjny
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2
Wymiary i waga
Szerokość
7.6 cm
Głębokość
12.1 cm
Wysokość
1.9 cm
Waga
40 g
Parametry środowiska
Minimalna temperatura pracy
0 °C
Maksymalna temperatura pracy
50 °C
Dopuszczalna wilgotność
0 - 85%
Informacja o kompatybilnosci
Zaprojektowany dla
Startech 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD and Surge Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expansion Hub with Locking Ports - Metal Construction (5G4AINDNP-USB-A-HUB)
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
