Numer produktu : 2506746

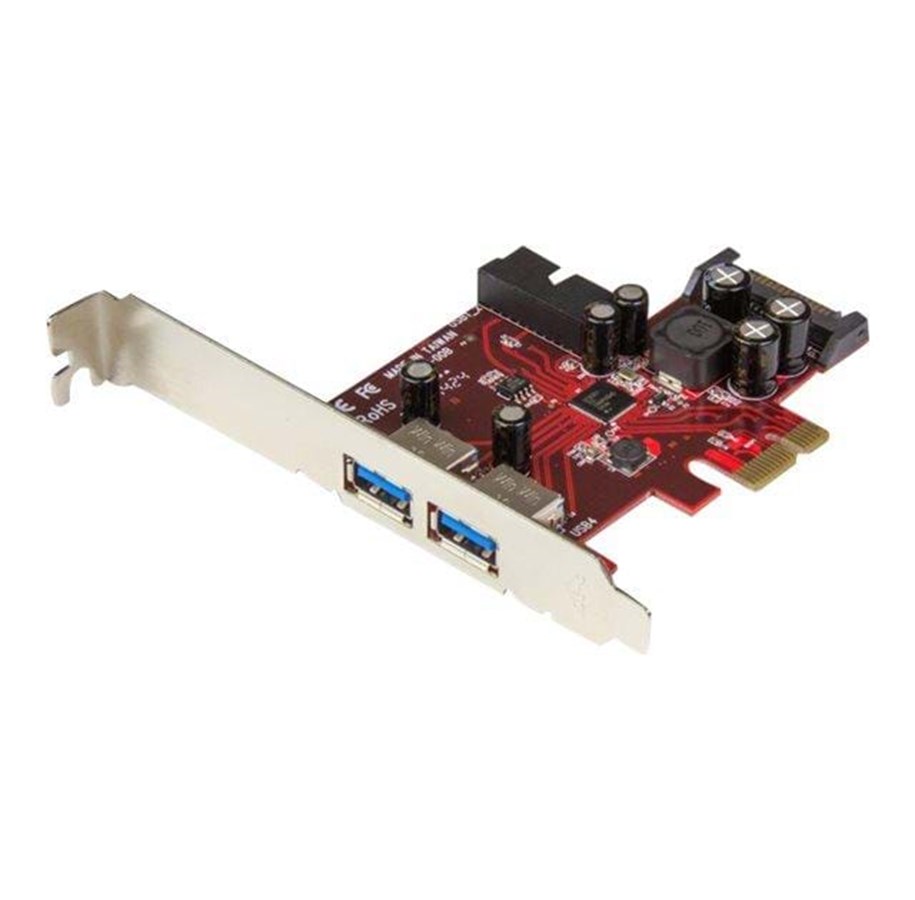

StarTech.com 4-port PCI Express USB 3.0 card

2 external, 2 internal, SATA power, Adapter USB, PCIe 2.0 niski profil, USB 3.0 x 4

210,00 zł 170,73 zł netto
Koszt wysyłki od 19,00 zł
W magazynie zewnętrznym, czas dostawy 6-7 dni

Add front or rear panel USB 3.0 ports to your computer case using USB 3.0 motherboard-style headers. This PCI Express USB 3.0 card offers a cost-effective upgrade that lets you add four USB 3.0 ports to your computer through a PCIe slot. It offers two external ports plus two internal USB 3.0 headers to help adapt your desktop or server to support a variety of USB 3.0 devices.With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with aNote: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.

Producent
Numer produktu
2506746
Model
PEXUSB3S2EI
Ean
0065030860338
Do strony producenta
Opis produktu
Startech 4 Port PCI Express USB 3.0 Card - 2 Ext & 2 Int (IDC) - SATA Power - adapter USB - PCIe 2.0 - USB 3.0 x 4
Rodzaj urządzenia
Adapter USB
Typ obudowy
Karta wkładana do gniazda - niski profil
Typ interfejsu (szyny)
PCI Express 2.0 x1
Porty
USB 3.0 x 4
Wymiary (szer./głęb./wys.)
1.8 cm x 12.2 cm x 9.2 cm
Waga
55 g
Protokół komunkacyjny danych
USB, USB 2.0, USB 3.0
Szybkość transmisji danych
5 Gbps
Procesor
Renesas uPD720201
Zgodność z normami
USB 1.1, USB 2.0, USB 3.0
Wymagania systemowe
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 lub nowszy, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Zaprojektowany dla
P/N: ST1030USBM, ST7300USBME

Ogólne

Rodzaj urządzenia
Adapter USB
Typ obudowy
Karta wkładana do gniazda - niski profil
Typ interfejsu (szyny)
PCI Express 2.0 x1

Praca w sieci

Porty
USB 3.0 x 4
Technologia podłączania
Przewodowa
Protokół komunkacyjny danych
USB, USB 2.0, SuperSpeed USB 3.0
Szybkość transmisji danych
5 Gbps
Cechy
Wbudowane złącze zasilania SATA, UASP
Zgodność z normami
USB 1.1, USB 2.0, USB 3.0

Procesor / Pamięć

Procesor
Renesas uPD720201

Rozszerzenie / połączenie

Interfejsy
2 x USB 3.0 - USB 9 pin Typ A (zewnętrzny)
2 x USB 3.0 - główka 20 pin HUB 3.0 (wewnętrzny)

Różne

Akcesoria w zestawie
Wspornik niskoprofilowy
MTBF
1,920,042 godzina(y)
Zgodność z normami
FCC, RoHS

Oprogramowanie / Wymagania systemowe

Dołączone oprogramowanie
Sterowniki i programy użytkowe
Wymagany system operacyjny
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 lub nowszy, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)

Wymiary i waga

Szerokość
1.8 cm
Głębokość
12.2 cm
Wysokość
9.2 cm
Waga
55 g

Parametry środowiska

Minimalna temperatura pracy
5 °C
Maksymalna temperatura pracy
50 °C
Dopuszczalna wilgotność
20 - 80%

Informacja o kompatybilnosci

Zaprojektowany dla
P/N: ST1030USBM, ST7300USBME

Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
