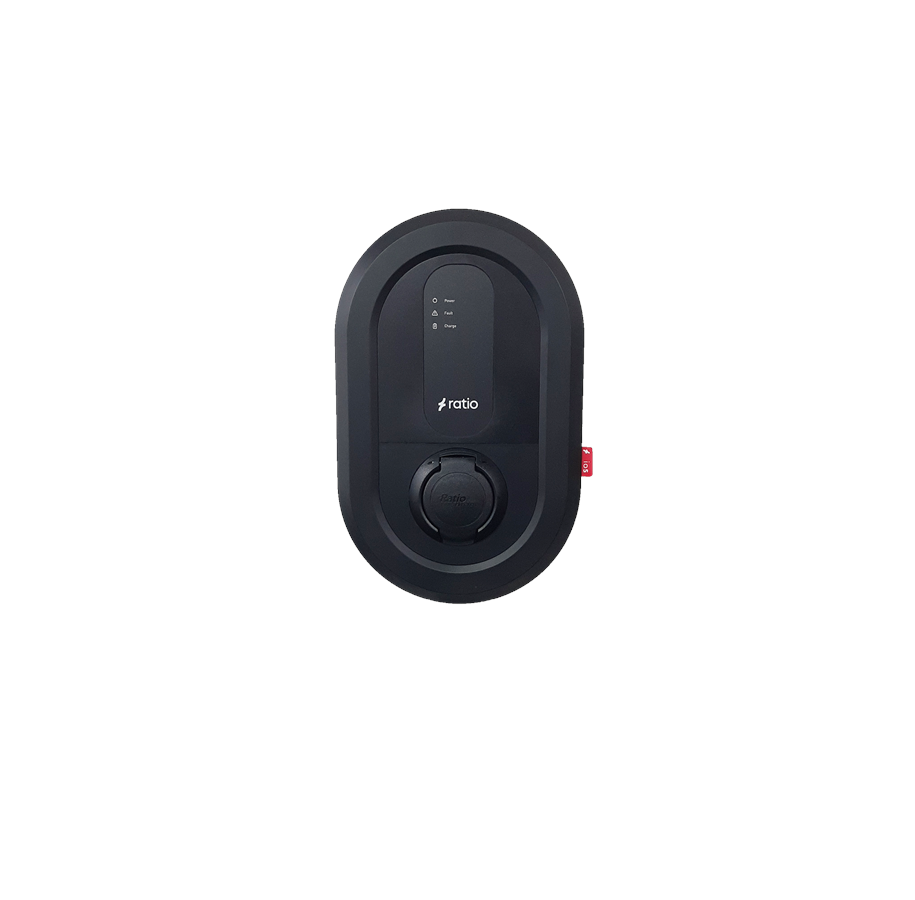

Ratio Smart 22kW 7,5m
Ratio Smart delivers an seamless charging experience for your EV.
Please note that the charging box must be installed and removed by an authorized installer, otherwise the warranty will be void.
The Smart Electric Vehicle Charging Box
The Smart Charging Box from Ratio represents the latest breakthrough in EV charging technology. Combining sleek design with powerful performance, it’s the ideal solution for efficient and intelligent vehicle charging.
Fast and Reliable Performance
The Smart is engineered for rapid and efficient EV charging. With a capacity of up to 22 kW, it ensures your vehicle is charged and ready to go in no time.
It supports charging for both electric and hybrid vehicles, regardless of whether your vehicle uses 1-, 2-, or 3-phase power.
Key Features
Bluetooth, WiFi & Ethernet Connectivity
Stay connected with multiple options for smart and seamless control.Dynamic Load Balancing
Upgrade with SenseKit to enable Dynamic Load Balancing and solar charging integration.Solar Compatibility
Take advantage of your solar panels by pairing the Smart with optional SenseKit modules – allowing you to charge using free, green energy.DC 6mA Protection
Advanced safety features include DC fault current protection to safeguard both user and vehicle during charging.OCPP 1.6j Compatible
Future-ready and compliant with the Open Charge Point Protocol, ensuring your charger stays up to date with evolving EV tech.
Why Choose Ratio's Smart Charger?
Ratio has been a pioneer in the EV charging industry. We proudly design and produce all electronic and plastic components in-house, with final assembly taking place just outside Amsterdam, Netherlands. This allows us to maintain top-tier quality standards and minimize environmental impact across our product line.
Specifications
Charging capacity up to 22 kW
400V, AC ±10% (3-phase)
PowerSharing, Dynamic Load Balancing, and Solar-ready with SenseKit
Adjustable charging current: 6A to 32A
Integrated DC 6mA protection
Dimensions: 400mm x 250mm x 105mm
CE certified
Connectivity: Bluetooth, WiFi, and Ethernet
Schedule charging and monitor usage via the Ratio app
OCPP 1.6j support
5-year limited factory warranty
