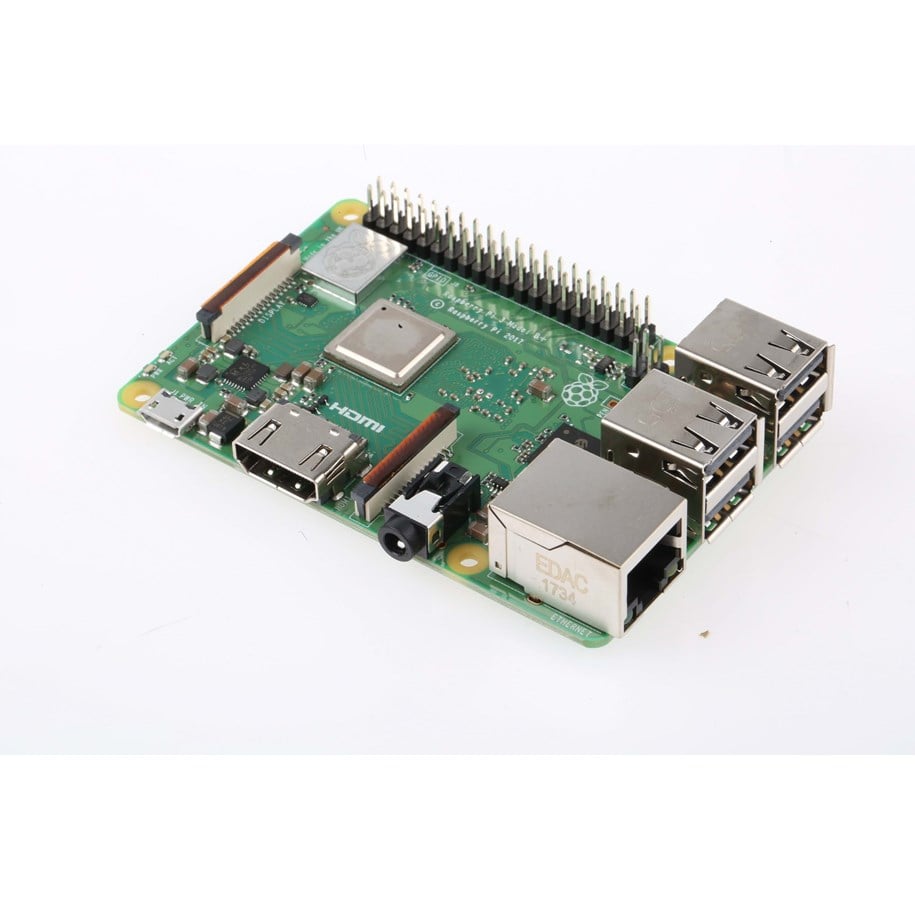

Raspberry Pi 3 Model B+
Linux Mini PC, 1.4 GHz Quad Core ARM Cortex A53 CPU (Broadcom BCM2837B0), 1GB LPDDR2 RAM, Without memory (supports up to 32GB MicroSDHC), Built-in Broadcom Dual Core VideoCore IV graphics card, 100/1000 MBIT network with PoE option via PoE HAT, 802.11 b/g/n/ac Dual Band wireless network & Bluetooth 4.2, HDMI 1.4 / Composite RCA / 3.5mm MiniJack / 4 x USB 2.0 A connections.
OBS! requires min. 2.5 A power supply.
Raspberry Pi 3 Model B+ has the same size and functionality as the previous Pi versions, but now comes with better wireless network (802.11ac) and Bluetooth 4.2. You can use cases that fit Pi Model B+ and Pi 2 - however, be aware that the LED diodes have been re-positioned and will therefore not be visible when using previous cabinets - see the new cabinets under "Accessories". Pi 3 Model B+ works with various Linux systems as well as Windows 10 IoT.
Kodi (also known as XBMC) installation guide can be found under "Description/Video" on the product.
Read more and watch the video in the description.
This is the newest version of the Raspberry Pi family, the Pi 3 Model B+. Pi 3 Model B+ is improved and an upgrade from the Pi 3 Model B with better WiFi and support for PoE (Power over Ethernet) with PoE HAT. Pi 3 Model B+ is built around ARM Cortex CPU with 1.4GHz and now integrated 802.11ac WiFi and Bluetooth 4.2 as standard. Like previously Raspberry Pi's, Pi 3 Model B+ is perfect as a mediacenter with Kodi, but also fanastic with other applications like Windows 10 IoT (Internet of Things) - and also suitable for programming here you can code your own programs and run them on the Raspberry Pi 3 Model B+...
Pi 3 Model B+ is a simple PC developed by Raspberry Pi Foundation to grant for more people to start learning more about computertechnology and programming without a high entry cost. Raspberry Pi is a small computer with the size of a creditcard, and can be connected to a monitor/TV, keyboard and mice. Raspberry Pi is a miniature ARM-based PC and can be used for much of the tasks as a "normal" desktop PC can, such as spreadsheet, word processing and games. The Pi is also able to play HD video without any problems.
There are multiple ready-to-use programs for Raspberry Pi and there is more coming all the time from users around the world. One of the more popular programs for Raspberry Pi's is Kodi, which is an open-source multimediacenter software. And there are even options to run Android OS on the Raspberry Pi.
Specifications:
- Broadcom BCM2837B0 1.4 GHz Quad Core Processor with Dual Core Videocore 4 Graphics Card - The graphics card uses Open GL ES 2.0, hardware-accelerated OpenVG and 1080p H.264 at 30 frames per second.
- 1GB LPDDR2 RAM
- microSD card reader must be used as a hard drive. - Downloads for Kodi mediacenter, Linux or Windows 10 IoT operating systems to has to be installed on the microSD card before Pi 3 Model+ is ready to use.
- 100/1000 Mbit Ethernet
- 802.11 b/g/n/ac wireless network and Bluetooth 4.2
- HDMI output - HDMI 1.4 version
- 3.5mm MiniJack audio output
- 4 x USB 2.0 connector
- RCA composite video jack
- Gets power from microUSB connection - requires minimum 2.5 A
- GPIO connection - allows for programming and control of other devices
- Connection to Raspberry Pi HD camcorder
- Size: 85 x 56 x 17 mm
Raspberry Pi is an open source product that is designed to be supported by Internet-based user forums. Please refer to the official website at raspberrypi.org.
OpenElec Kodi (also known as XBMC) installation guide
There is not yet a version for Raspberry Pi 3 Model B+, as soon as this exists, it will be posted here. We recommend either OpenElec's version of Kodi or OSMC
Obudowa komputerowa - akcesoria
-
dezen ESD / Antystatyczny pasek na nadgarstek
Na stanie - czas dostawy 2-3 dni39,00 zł
Ogólne
Procesor
RAM
Pamięć fleszowa
System graficzny
Praca w sieci
Wyposażony w interfejs
CSI - ZIF
4 x USB 2.0 - Type A
GPIO - IDC 40 pin
DSI - ZIF
Wyjście kompozytowe wideo/audio - złącze mini jack z 4 biegunami
Wyjście HDMI - Type A
Wejście PoE HAT - IDC 4 pin
Zasilacz
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
