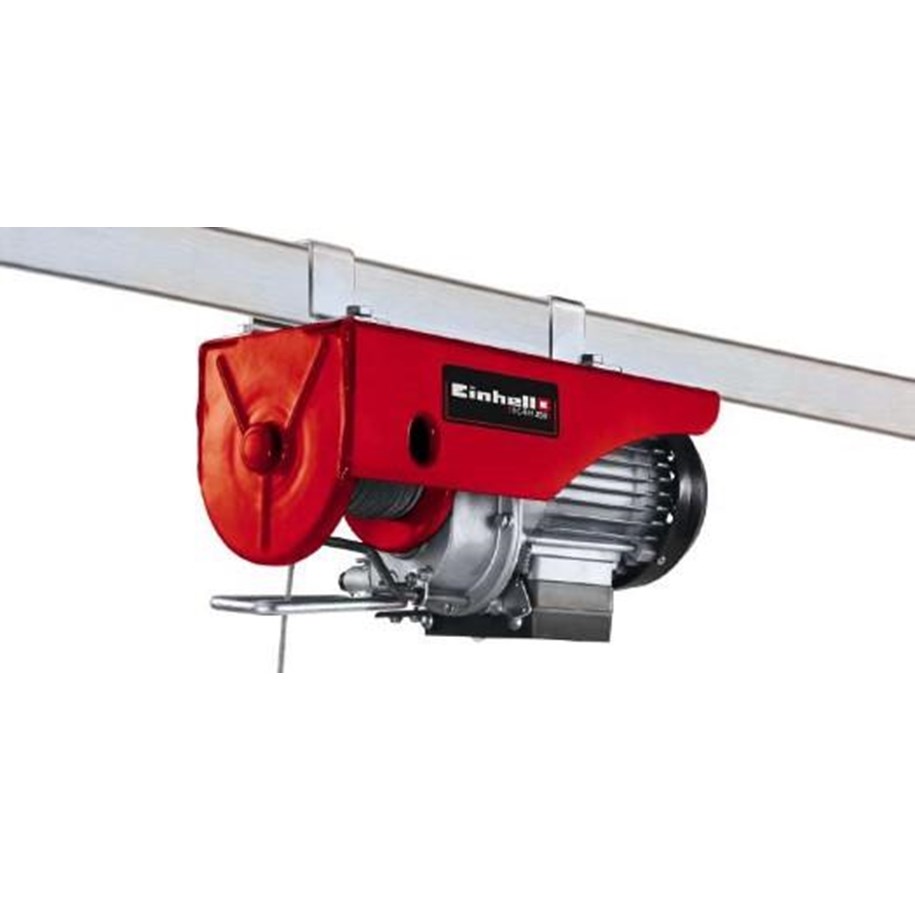

Einhell TC-EH 250 Electric Hoist

- 12m wire cable (twist-free, Ø 3mm).
- Guide roller with load hook.
- Operator switch with emergency stop function.
- Motor with thermal switch.
- Load hook with safety catch.
- Automatic brake secures the load in every position.
- Automatic limit cut-out.
- Fastening with two double clamps.

The TC-EH 250 electric hoist enables the safe lifting of loads everywhere in the home, garden and workshop, simply by pressing a switch. With its numerous features this cable winch reflects the state of the art. The 12 meter wire cable with a cross-section of 3 mm can be used with a guide roller and load hook to lift a maximum load of 250 kg to a height of 5.7 m. Without the guide roller the maximum load is halved but the lifting height is increased to 11.5 m. The BT-EH 250 comes with numerous safety features. A totally insulated ON switch has an emergency OFF function which stops the winch immediately. The robust motor is protected from overheating by a thermostatic switch. The twist-free wire cable prevents the load from twisting while it is being lifted. A safety catch on the load hook prevents the load from dropping unintentionally, while an automatic brake is ready to secure the load in any position. For reliable switching off in the end position there is a positively actuated, automatic limit cut-out. Two double clamps are provided for securing the cable winch. Separately available for the TC-EH 250 is a matching swing arm for lifting loads to higher levels and floors in multi-storey buildings.
