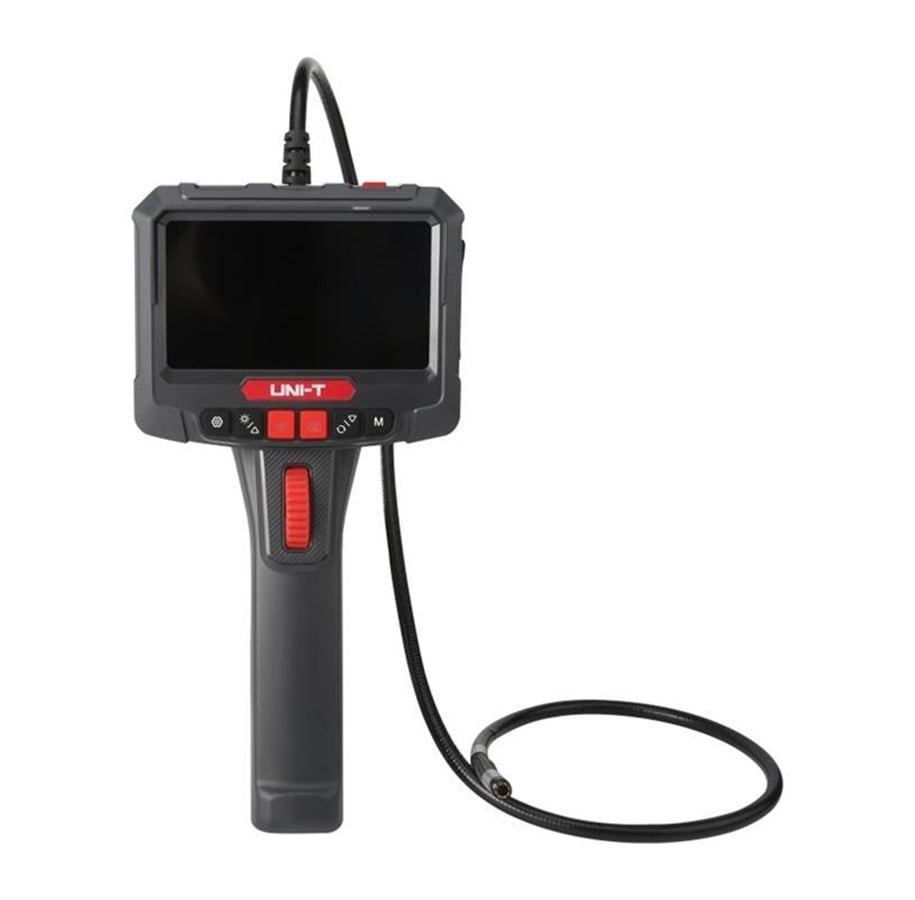

UNI-T UT663B-2m Borescope
The Uni-T UT663B-2m is an industrial borescope designed for inspecting narrow, curved, and hard-to-reach areas without dismantling components. It features a 5.0-inch display, an 8 mm CMOS camera, and a 2-meter rigid metal cable for extended reach. The camera head supports 180° bidirectional rotation, allowing the viewing angle to be adjusted during inspection. The borescope captures 1920 × 1080 photos and records 1920 × 1080 AVI video, while eight LEDs with adjustable brightness provide clear illumination in dark areas. An IP67-rated camera, 3000 mAh battery, and 32 GB TF card make it suitable for technical and maintenance inspections.
The 8 mm CMOS camera has a 70° field of view and a depth of field from 20 to 100 mm. A 5.0-inch display provides a clear view of the inspection area, while the camera supports 1920 × 1080 photo capture and 1920 × 1080 AVI video recording. Additional functions include image rotation, playback, audio recording, and high-temperature alerts.
Eight integrated LEDs with four brightness levels provide illumination inside dark spaces. The camera is protected to IP67, while the 3.7 V / 3000 mAh battery provides up to 4 hours of operating time. A 32 GB TF card allows inspection photos and videos to be stored directly on the device.
