Numer produktu : 2861093

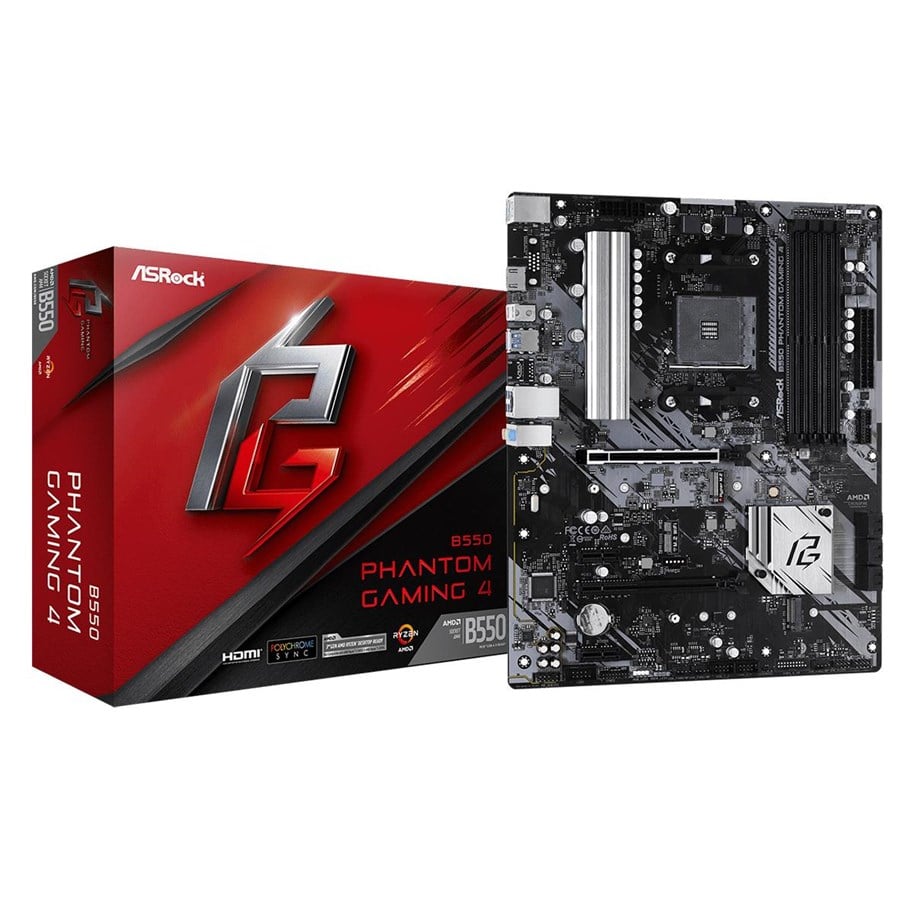

ASRock B550 PHANTOM GAMING 4 Płyta główna - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX

Płyta główna, rozmiar: ATX, AMD AM4 socket, AMD B550 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 4 x DIMM slots, porty pamięci: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 1 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A, połączenie ekranu: 1 x HDMI 2.1, Realtek RTL8111H 1 Gigabit sieć (LAN), AMD Vega Graphics utrzymany (Wymagany procesor z VGA), Realtek ALC887 HD Audio (8-Kanały) karta dźwiękowa, ASRock Polychrome SYNC software

Ten zestaw zawiera

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Wartość 199,00 zł Obowiązuje od 07-10-2024 00:00 - aż do wyczerpania zapasów
Koszt wysyłki od 20,00 zł
10 szt. Na stanie - czas dostawy 2-3 dni

PG Velocita is a brand new high end product line under the Phantom Gaming family, the PG Velocita motherboard series packed full with uncompromised performance as well as relentless appearance. "Velocità" is Italian for "Velocity", destined to give a fast and unbeatable gaming experience to the gamers!

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include extra anchor points, stronger latch, ensure signal stability, make sure heavy graphics cards to be well-installed.

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

Extra-large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

RAM

Producent
Numer produktu
2861093
Model
90-MXBCY0-A0UAYZ
Ean
4710483931499
Opis produktu
ASRock B550 Phantom Gaming 4 - płyta główna - ATX - Socket AM4 - AMD B550
Typ produktu
Płyta główna - ATX
Typ chipsetu
AMD B550
Port procesora
1 x Socket AM4
Zgodne rodzaje procesorów
Ryzen (obsługa 3. Generacji procesora Ryzen i Nowej Generacji Procesorów Ryzen z Radeon Graphics)
Max rozmiar RAM
128 GB
Obsługiwany RAM
4 sloty DIMM - DDR4, bez ECC, ECC (praca w trybie innym niż ECC), niebuforowana
Porty pamięci
6 x SATA-600 (RAID), 2 x M.2
Porty USB / FireWire
6 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 za pomocą nagłówków)
Maksymalny rozmiar alokowanej pamięci RAM
2 GB
Audio
High Definition Audio (8-kanałów)
LAN
Gigabit Ethernet

Ogólne

Typ produktu
Płyta główna - ATX
Typ chipsetu
AMD B550
Port procesora
Socket AM4
Max ilość procesorów
1
Zgodne rodzaje procesorów
Ryzen (obsługa 3. Generacji procesora Ryzen i Nowej Generacji Procesorów Ryzen z Radeon Graphics)

Obsługiwany RAM

Rozmiar maksymalny
128 GB
Technologia
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
Sprawdzanie integralności obsługiwanej pamięci RAM
Bez ECC, ECC (praca w trybie innym niż ECC)
Rejestrowana lub buforowana
Niebuforowana
Charakterystyka
Dwa kanały DDR, AMD Memory Profile (AMP), obsługiwane moduły ECC działają w trybie innym niż ECC

Grafika

Maksymalny rozmiar alokowanej pamięci RAM
2 GB

Audio

Typ
High Definition Audio (8-kanałów)
Audio Codec
Realtek ALC1200
Zgodność z normami
Dźwięk Wysokiej Rozdzielczości, obsługuje audio Premium Blu-ray

LAN

Kontroler sieciowy
Realtek RTL8111H
Interfejsy sieciowe
Gigabit Ethernet

Rozszerzenie / połączenie

Gniazda rozszerzeń
1 x CPU
4 x 288-pin DIMM
1 x PCIe 4.0 x16 (PCIe 4.0 tryb x16 (procesor serii Ryzen Matisse), PCIe 3.0 tryb x16 (Ryzen serii APU))
1 x PCIe 3.0 x16 (tryb x4)
2 x PCIe 3.0 x1
1 x M.2 socket (gniazdo 2230 M.2 Key E)
Interfejsy pamięci masowej
SATA-600 -złącza: 6 x szer. ATA 7 pin - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -złącza: 1 x M.2
PCIe 4.0 -złącza: 1 x M.2
Interfejsy
1 x LAN (Gigabit Ethernet)
1 x HDMI
6 x USB 3.2 Gen 1
1 x mikrofon - mini jack
1 x wejście audio - mini jack
1 x wyjście audio - mini jack
1 x klawiatura PS/2 / mysz
Wewnętrzne interfejsy
4 x USB 2.0 - nagłówek
2 x USB 3.2 Gen 1 - nagłówek
1 x dźwięk - nagłówek
1 x szeregowy - nagłówek
Złącza zasilania
Łączówka 4-pin ATX12V, łączówka 24-pin głównego zasilania, złączka ATX12V 8-stykowa

Charakterystyka

Typ BIOS
AMI
Cechy BIOSu
JumperFree, obsługa SMBIOS 2.3, UEFI BIOS, obsługa ACPI 5,1
Monitorowanie hardware
Temperatura rdzenia CPU, temperatura obudowy, tachometr wentylatora na procesorze, tachometr wentylatora obudowy, napięcie systemu, napięcie zasilania rdzenia CPU
Uśpienie / budzenie
Uaktywnienie z LAN
Cechy harware
8 Phase Power Design, ASRock Instant Flash, przystosowany do HDCP, 15µ Gold Contact, obsługuje technologię AMD CrossFireX, obsługuje technologię AMD Quad CrossFireX, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, ASRock Live Update, Premium 50A Power Choke, PCB Isolate Shielding, 2oz Copper PCB, ASRock POST Status Checker (PSC), ASRock Steel Slot Gen4, ASRock Hyper M.2

Różne

Akcesoria w zestawie
Płytka tylna We/Wy, 3 wkręty M2
Dołączone przewody
2 x kabel Serial ATA
Dołączone oprogramowanie
Sterowniki i programy narzędziowe, antywirus (wersja próbna), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC
Zgodność z normami
Plug and Play, FCC, EuP Ready, ErP Ready, HDCP 2.3
Szerokość
30.5 cm
Głębokość
24.4 cm

Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
