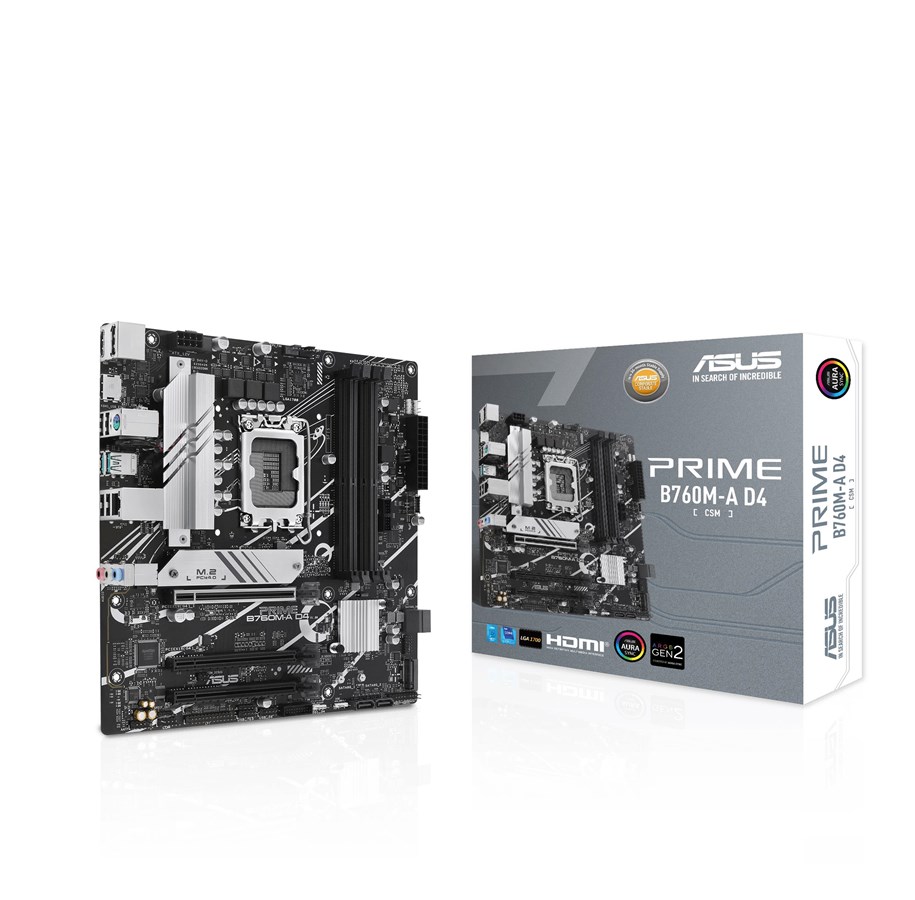

ASUS PRIME B760M-A D4-CSM (V2) Płyta główna - Intel B760 - Intel LGA1700 socket - DDR4 RAM - Micro-ATX
Płyta główna, rozmiar: Micro-ATX, Intel LGA1700 socket, Intel B760 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 4 x DIMM slots (Intel XMP support), porty pamięci: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A, połączenie ekranu: 1 x Displayport 1.4 / 2 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit sieć (LAN), Intel Xe Graphics utrzymany (Wymagany procesor z VGA), Realtek HD Audio (8-Kanały) karta dźwiękowa, ASUS AURA Sync software
Gotowy na procesor Intel 14. generacji
Ten zestaw zawiera
This motherboard is equipped with a comprehensive cooling setup, including ASUS Fan Xpert 2+ and a VRM heatsink design, ensuring that your system remains cool and stable under load. The dual M.2 sockets and 4 x SATA-600 (RAID) storage interfaces allow for fast data transfer and flexible storage options, including RAID configurations for enhanced data integrity and speed. Networking is handled by a 2.5 Gigabit Ethernet port, offering a significant upgrade over standard Gigabit connections for faster, more reliable network performance.
For those looking to personalize their setup, ASUS Aura Sync provides a vast ecosystem of compatible devices for synchronized RGB lighting effects across your entire gaming environment. The motherboard's durability is bolstered by ASUS 5X Protection III, including overvoltage protection and a stainless steel back I/O, ensuring long-term reliability and stability. Whether you're building a high-performance gaming rig or a powerful workstation, the ASUS PRIME B760M-A D4-CSM offers a solid foundation with a balance of features and performance.
Ogólne
Obsługiwany RAM
Audio
LAN
Rozszerzenie / połączenie
4 x 288-pin DIMM
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (tryb x4)
1 x PCIe 4.0 x16 (tryb x1)
2 x M.2 socket (gniazdo 2242/2260/2280 M.2 Key M)
PCIe 4.0 -złącza: 2 x M.2
1 x DisplayPort
2 x USB 3.2 Gen 2
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x klawiatura PS/2 / mysz
1 x mikrofon - mini jack
1 x wejście audio - mini jack
1 x wyjście audio - mini jack
1 x USB-C 3.2 Gen 1 - nagłówek
4 x USB 3.2 Gen 1 - nagłówek
1 x szeregowy - nagłówek
1 x SPI - nagłówek
1 x wyjście SPDIF - nagłówek
1 x dźwięk - nagłówek
Charakterystyka
Różne
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
