Numer produktu : 2898901

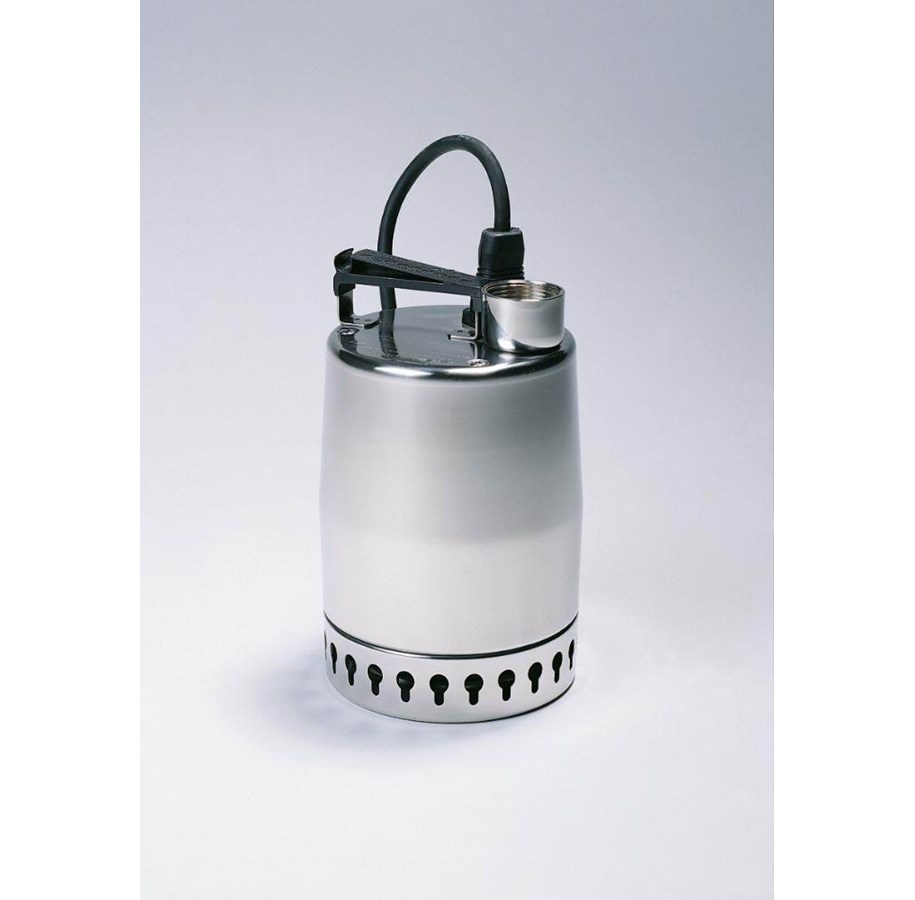

Grundfos unilift kp250-m-1 1x220-230v 50hz 10m sch

Unilift KP 250 M 1Submersible drainage pumpVertical single-stage stainless steel submersiblepump with vertical discharge port and integratedsubmersible 1-phase canned motor ininsulation class F with thermal overloadprotection. The pump is fitted with a suction strainer, acarrying handle and is supplied with a 10 mmains cable.The impeller is a semi-open impeller for 10 mmfree passage suitable for pumping groundwater,surface water, rain water and similar liquids.The pump has a double shaft seal consisting oftwo lip seals with grease in-between.The pump has an outer casing ensuring continuouscooling of the motor by the pumped liquid.The rotor shaft operates in two maintenance-freecarbon bearings cooled by the pumped liquidThe motor is filled with a non-toxic motor liquid.Liquid:Liquid temperature range:0 .. 50 °CTechnical:Maximum particle size:10 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4031Impeller:AISI 304Installation:Pump outlet:Rp 1 1/4Maximum installation depth:10 mElectrical data:Power input - P1:480 WRated voltage:1 x 220-230 VRated current:2.3 ACapacitor size - run:8 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug SchukoOthers:Net weight:7 kgGross weight:7.3 kgShipping volume:0.013 m3

Czytaj wiecej
2 166,01 zł 1 760,98 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 3-4 dni

Grundfos UNILIFT basement pump KP 250M-1 with 10m cable SCH Product description: Unilift KP 250 M 1 Basement and drainage pump Vertical single-stage submersible pump made of stainless steel with vertical outlet and built-in single-phase split pipe motor in insulation class F with thermal protection. The pump has an inlet sieve and lifting handle and comes with a 10 m power cable. The impeller is a semi-open impeller with free passage of 10 mm suitable for pumping groundwater, surface water, rainwater, and similar media. The pump has double shaft seals consisting of two lip seals with grease in between. The outer casing of the pump ensures constant cooling of the motor by means of the pumped medium. The rotor shaft runs on two maintenance-free ball bearings cooled by the pumped medium. The motor is filled with a non-toxic liquid.Liquid:Liquid temperature range:0 ..50 °CTechnical:Maximum particle size:10 mmMaterials:Pump housing: Stainless steelPump housing:DIN W.-Nr.1.4301Pump housing:AISI304 Impeller:Stainless steel Impeller:DIN W.-Nr .1 .4031 Impeller:AISI304 Installation:Pump outlet :Rp11/4 Maximum installation depth :10 mElectrical data :Power input - P1 :480 W Rated voltage :l x220-230 V Rated current :2 .3 A Capacitor size - run :8 F/400 V Enclosure class (IEC34-5)68 Insulation class (IEC85):F Lengthofcable:l0m Typeofcableplug:SCHUKO Others :Net weight:7 kg Gross weight:7 .3 kg Shipping volume:.013 m3

Producent
Numer produktu
2898901
Model
012H1300
Ean
5700391116506

Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
