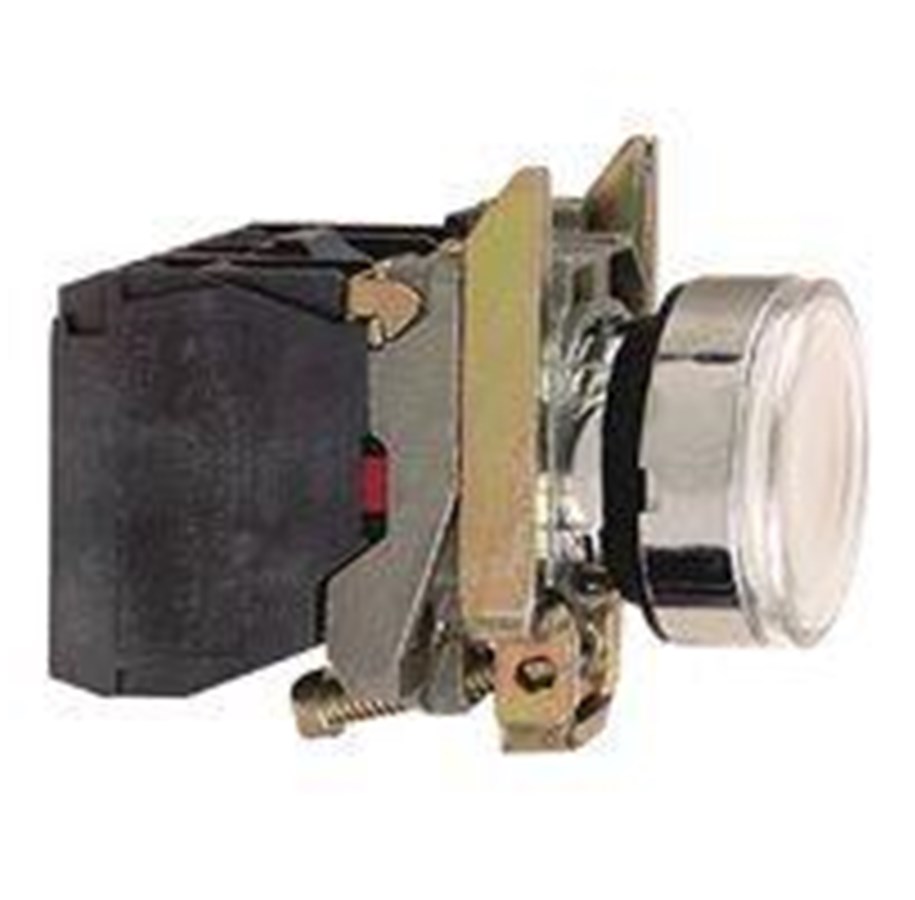

Schneider Electric Immuminated pushbotton

Lamp switch white 230VAC with LED 1NO+NCProduct description: Push buttons, switches and diodes with front ring in chrome-plated metal, Ø 22 mm. Very wide range of products including push buttons, impulse switches, multi-function push buttons in the same Ø22 hole, switches and key handles. Diodes (LED-, glow- or neon bulbs) are also available.Combined functions include contact + signal (lamp switch). Finished products (XB**) or loose parts (ZB**) can be assembled by the customer. Connection to contact element is via screw terminal with self-tightening feature, plug-in-with connector or finished cables and spade connectors.High power contacts (10A) normally rated at 6A. Gold contacts for early closing and late breaking are available for robustness and safety purposes.Certified and approved to meet requirements on all continents: EN/IEC, UL, CSA CCC Gost JIS NEMA...CE marked Up to IP66 IP69K Electric contact with low load/high power Rattle-proof connection screws that do not require tightening after installation.There is a complete set of accessories designed for use in harsh environments that are subjected to high-pressure cleaning dust extreme temperatures etc. More information can be found under "More links".Simple and fast installation requires only one installation program secured by a single locking screw which prevents rotation of the device during operation.Technical specifications:Color: WhiteVoltage(V): 230-240V ACContacts: NO+NC
