Schneider Electric Pushbutton operator head

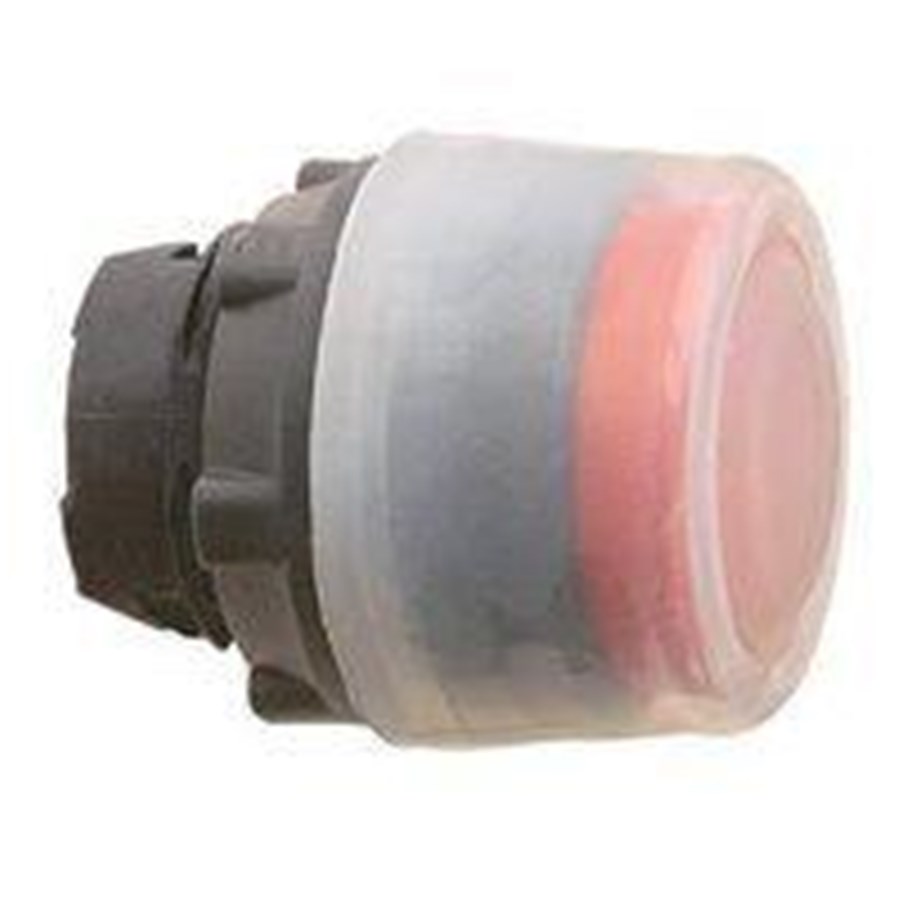

Push button ZB5AP4 with red silicone cap Product description: Push buttons, rotary and key switches Harmony Style 5 (Series XB5) plastic Ø 22 mm - Complete units - Paddle push, black Ø40mm Push button program Harmony style 5 The push button program Harmony style 5 refers to the series of push buttons, signal lamps and lamp pushes with plastic front rings. The series type numbers start with XB5 and replace the Ø22 mm XA2-B series. However, the XA2-B series is still used with the XAC pendant switch program and is therefore included in this catalog. See section on pendant switches. Signal lamps and lamp pushes now use Protected LED technology, which provides up to 100,000 hours of maintenance-free operation. Some advantages of the new LEDs compared to traditional incandescent bulbs include: less maintenance no need for bulb testing all colors available (including blue and white) large voltage range with same light intensity: 12V and 230V (see limit values ​​on page 311). Connection can be made either via screws with locking washers, plugs or pins for printed circuit boards.The program consists of:Complete units XB5-AComponents for assembly ZB5-ALoose parts and accessories ZB5-AThe complete units consist of:Flush-mounted push buttons, flush-mounted with silicone cap , raised and paddle-pushes , double-push buttons , emergency stop (push-pull , press-turningand emergency stopwith key according to EN418), rotary switches,keyswitches.Signal lamps(3 types):With built-in LEDfor BA9s incandescent bulbswith direct supplyand transformer.Lamp pushes(5 types):Roundwith built-in LEDfor BA9sincandescent bulbswith direct supplyand transformer.Doublelamp pushe sithbuilt-inLEDandrotaryswitcheswithbuilt-inLED.Signs(commontoXB4andXB5series)The signs can be designed by the user using design software provided on a diskette.Ø 22 mm timers, sounders and fuse holdersAmong other products from the Harmony style 5 series are:timers from 0 to 9999.9 hourssounders,80DBfuse holders for5x20mmfuses Technical specifications: Color: RedType: with clear silicone cap
