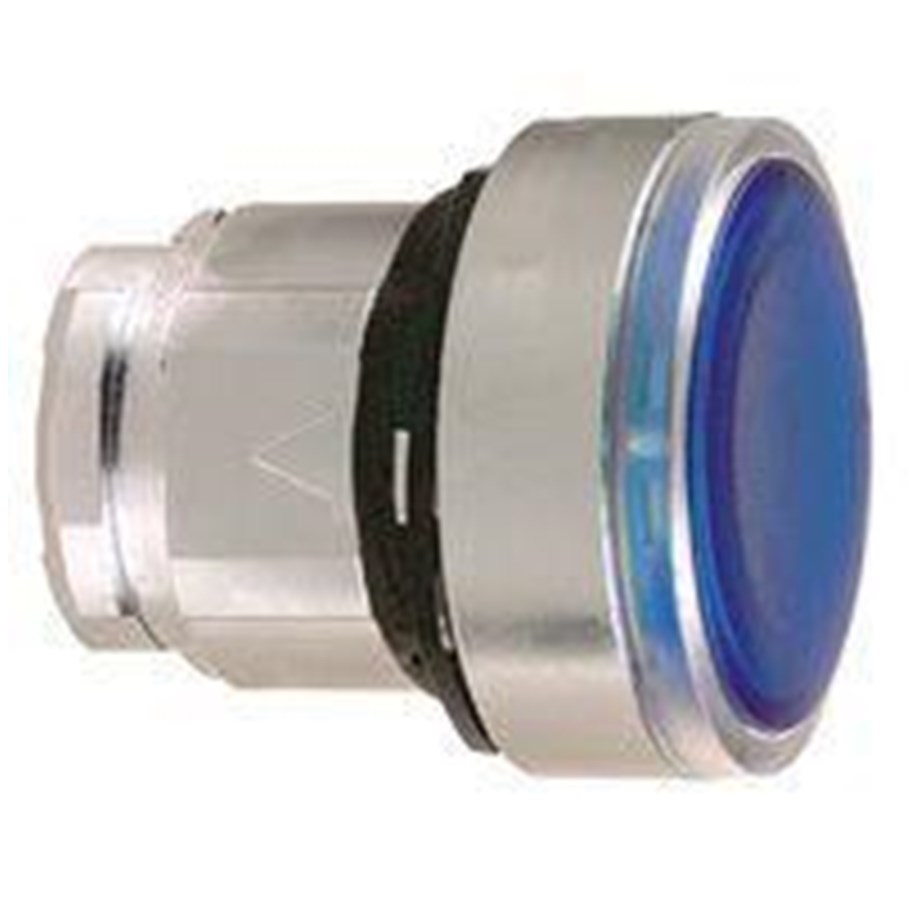

Schneider Electric Pushbutton operator head

Push button plan blue for signsProduct description: Push buttons, switches and diodes with front ring in chrome-plated metal, Ø 22 mm. Very wide range of products including impulse push buttons, multi-function push buttons in the same Ø22 hole, switches and key grips, diodes (LED-, glow- or neon bulbs), combined functions such as contact + signal (lamp press). Finished products (XB**) or loose parts (ZB**) are assembled at the customer's site. Connection to contact element: screw terminal with self-tightening, plug-in-with connector or ready-made cables, spade connectors and spring terminals. High-power contacts (10A) normally 6A with gold contacts that close early and break late. Robust and safe certified to meet requirements on all continents: EN/IEC UL CSA CCC Gost JIS NEMA... CE marked up to IP66 IP69K electric contact with low load and high power.Vibration-resistant connection screws do not need tightening; also available for use in harsh environments.There is a complete set of accessories designed for applications that are subjected daily to high-pressure cleaning dust extreme temperatures; more information can be found under More Links.Simple and fast installation requires only one installation program secured by a single locking screw that prevents rotation. Common accessories.Technical specifications:Color: Blue f/signsType: Plan
