Schneider Electric Pushbutton

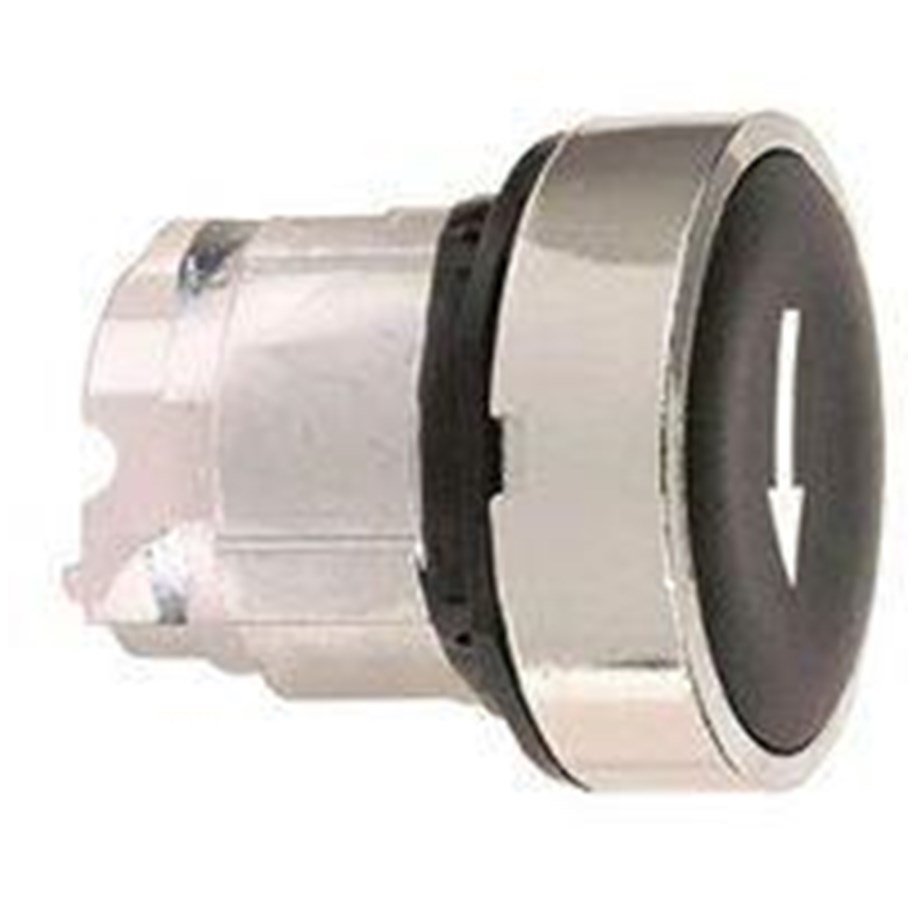

Push button plan black with white arrowProduct description:Push buttons, switches and diodes with front ring in chrome-plated metal, Ø 22 mm. Very wide range of products. Push buttons, impulse. Push buttons with multiple functions in the same Ø22 hole. Switches and key handles. Diodes (LED-, filament- or neon bulbs). Combined functions: contact + signal (lamp press). Finished products (XB**) or loose parts (ZB**) assembled at customer's site.Connection to contact element: screw terminal with self-tightening, plug-in-with connector or ready-made cables, spade connectors, spring terminals.High power contacts (10A) normally 6A.Gold contacts, early closing and late breaking.Robust and safeCertified and approved to meet requirements on all continents: EN/IEC, UL, CSA CCC Gost JIS NEMA... CE marked Up to IP 66 IP69K Electric contact with low load and high power.Vibration-resistant connection screws (no need for retightening).Also available for use in harsh environments.There is a complete set of accessories designed for applications that are subjected daily to high-pressure cleaning dusts and extreme temperatures.You will find more information under More links.Simple and fast installationOnly one installation program is required.Secured by a single locking screw (rotation-proof).Common accessories.Technical specifications:Color: BlackType: PlanContacts: With white arrow
