Numer produktu : 3291291

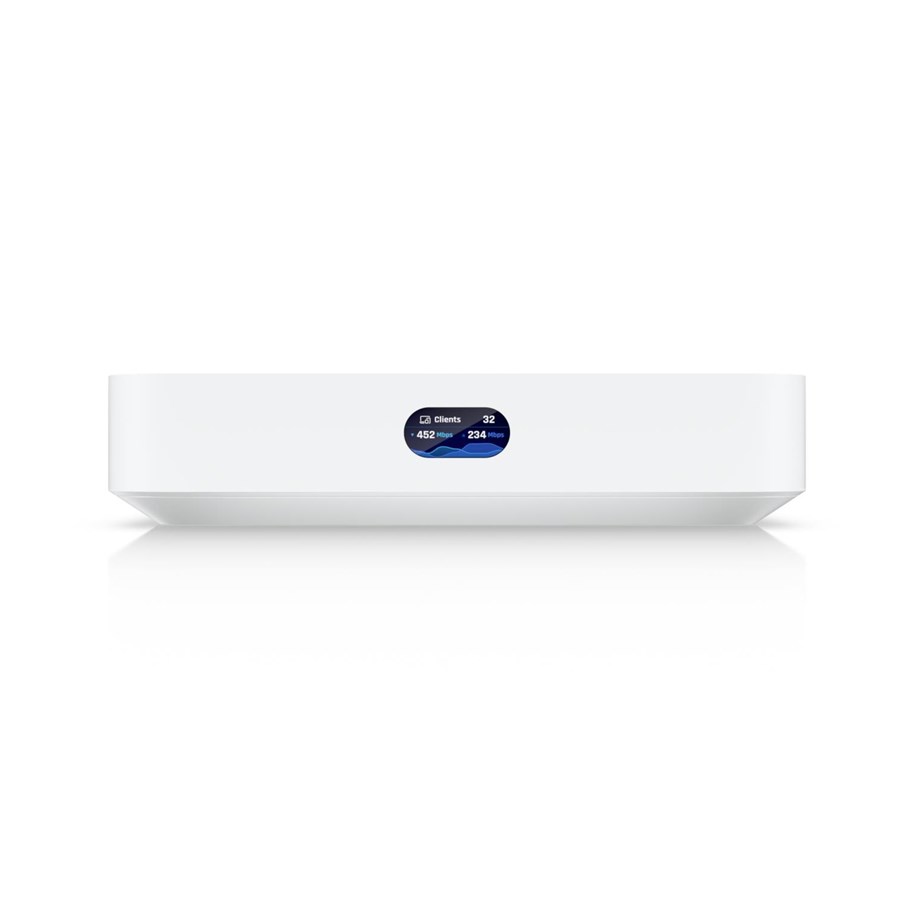

Ubiquiti UniFi Cloud Gateway Max (512GB) - Router

Ubiquiti Cloud Gateway Max gateway/kontroler 10, 100, 1000 Mbit/s

Na stanie
1 472,00 zł 1 196,75 zł netto
Koszt wysyłki od 20,00 zł
5 szt. na stanie - czas dostawy 2-4 dni
Ładowarka w zestawie
Charger included

Mechanical
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight: 519 g (1.1 lb)
Enclosure material: Polycarbonate

Hardware
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory: 3 GB DDR4
On-board storage: 512 GB NVMe SSD
Management interface: Ethernet, Bluetooth
Networking interface:
    LAN: (4) 1/2.5 GbE RJ45 ports
    WAN: (1) 1/2.5 GbE RJ45 port
IDS/IPS throughput: 1.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method: USB type C (5V DC/5A)
Supported voltage range: 100–240V AC
Max. power consumption: 16.1W
LCM display: 0.96" status display
Button: Factory reset
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Gateway Features
Performance:
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security:
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking:
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

Producent
Numer produktu
3291291
Model
UCG-Max
Ean
0810084697122
Do strony producenta
Kontakt do producenta
Opis produktu
Ubiquiti - brama - zarządzanie w chmurze
Rodzaj urządzenia
Brama
Rodzaj obudowy
Pulpit
Procesor
1 x ARM Quad Core A53 - 1.5 GHz
RAM
3 GB
Dysk twardy
512 GB x 1
Protokół komunkacyjny danych
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Wykonanie
Przepustowość IDS/IPS: 1 Gb/s
Akcesoria w zestawie
Adapter zasilania
Zasilanie
AC 100-240 V
Wymiary (szer./głęb./wys.)
14.18 cm x 12.76 cm x 3 cm
Waga
519 g

Ogólne

Rodzaj urządzenia
Brama
Szerokość
14.18 cm
Głębokość
12.76 cm
Wysokość
3 cm
Waga
519 g

Procesor / Pamięć / Pamięć

Zainstalowane procesory
1 x ARM Quad Core A53 1.5 GHz
RAM
3 GB DDR4 SDRAM
Dysk twardy
SSD 512 GB x 1 - NVMe

Praca w sieci

Typ obudowy
Pulpit
Technologia podłączania
Przewodowa, bezprzewodowa
Protokół komunkacyjny danych
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Protokół warstwy Sieci / Transportu
OpenVPN, IPSec, DHCP, IPv6
Zarządzanie w Chmurze
Tak
Wykonanie
Przepustowość IDS/IPS: 1 Gb/s
Cechy
Obudowa z poliwęglanu, przycisk resetu, proxy IGMP, serwer DHCP, przekaźnik DHCP, WAN na bazie polityki, trasowanie VPN, klient OpenVPN, serwer OpenVPN, klient L2TP VPN, obsługa SD-WAN, filtrowanie zawartości, filtrowanie krajów, filtr domen, filtrowanie reklam, zgłaszanie awarii, Jakość internetu, QoS

Rozszerzenie / połączenie

Interfejsy
4 x 1/2.5Gb Ethernet - RJ-45
1 x 1/2.5GBase-T - RJ-45

Różne

Akcesoria w zestawie
Adapter zasilania
Zgodność z normami
FCC, IC

Zasilanie

Zasilacz
Adapter mocy zewnętrznej
Wymagane napięcie
AC 100-240 V
Zużycie energii w trybie aktywności
16.1 wat

Oprogramowanie / Wymagania systemowe

Dołączone oprogramowanie
Ubiquiti UniFi Software

Parametry środowiska

Minimalna temperatura pracy
-10 °C
Maksymalna temperatura pracy
40 °C
Dopuszczalna wilgotność
5–95% (niekondensująca)

Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
