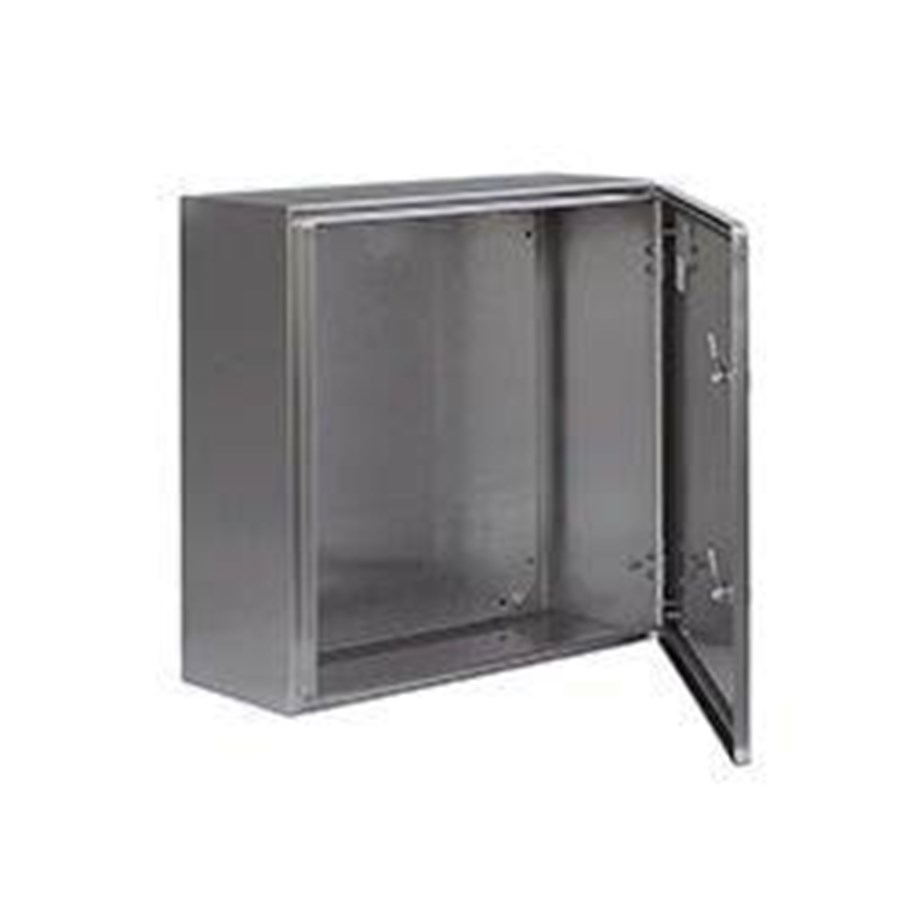

ELDON Wall mounted 180x240x150

Wall cabinet 180x240x150 ASR0182415 Product description: Description: RFt wall cabinet 180x240x150 Material: AISI 304 / AISI 316L polished stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Folded and fully welded. Door opening angle of 130°. Pre-polished AISI304. Hinges with removable split pin for right or left opening doors. Polyurethane gasket in one piece. The inside of the door has four welded threaded studs for mounting accessories.Locks : Chrome-plated DIN lock with a movement of up to 90° with anti-vibration mechanism, Locks in stainless steel and other versions can be supplied as accessories.Mounting plate : Fixed on M8 screws welded to the back wall of the cabinet.In cabinets with a height of 800 mm or more, the mounting plate has a bend on all four sides for extra stability.When using AMG accessories, the mounting plate can be adjusted in depth.Cable entry : No flange openings as standard to maximize sealing and clean lines.Degree of protection : In accordance with IP66 and NEMA4X,12,and13.IK10 Surface treatment : Polished for an average duration of 240 seconds (0.5 microns).Delivery includes : Mounting plate complete with fixing accessories and grounding connection.Packed in recycled packaging.Additional information : Use temperature control, ventilation,and rain cover recommended for demanding outdoor use.Please see section on general accessoriesand technical chapterfor further information.Technical specifications Color Stainless SteelWidth240Height180Depth150
