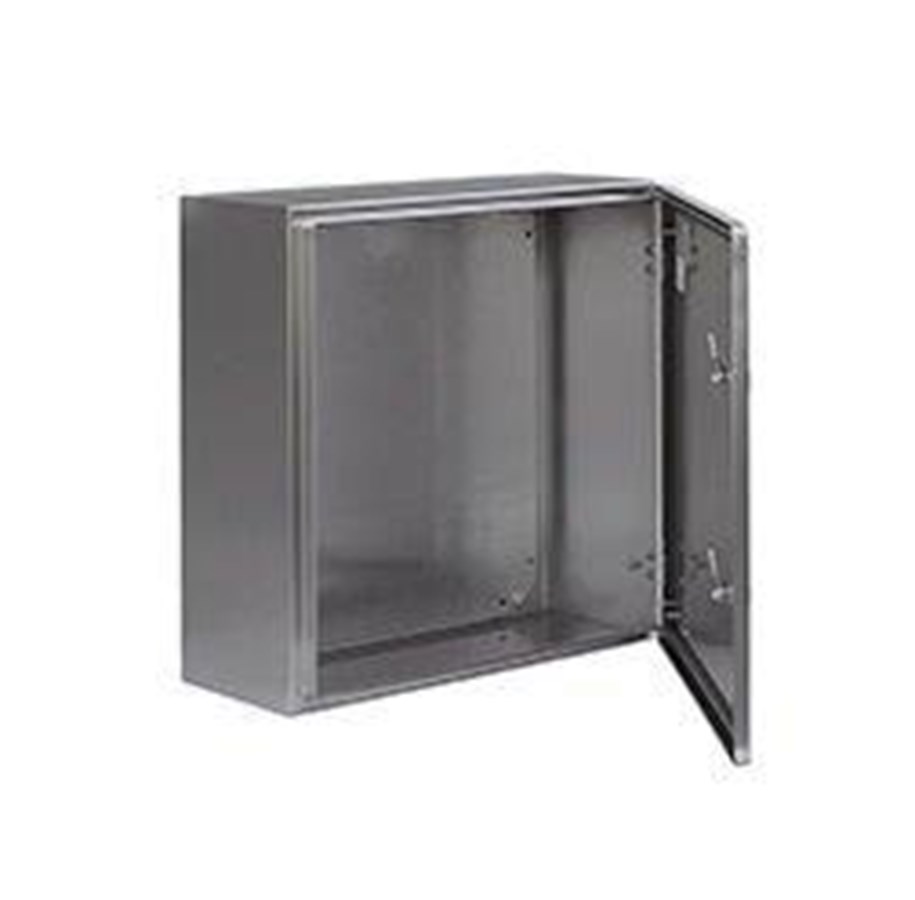

ELDON Wall mounted 400x400x210

Wall cabinet 400x400x210 ASR0404021 Product description: Description: RFt wall cabinet 400x400x210 Material: AISI 304 polished stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Edge-folded and fully welded. Door: 130° opening angle. Pre-polished AISI304. Hinges with removable split pin. Right or left-hand opening option available. Polyurethane gasket in one piece on the door frame for a perfect seal against dust and water ingress, IP66 rated protection class according to EN60529 standard, NEMA4X,12 &13 rating according to UL50E standard Impact resistance IK10 Locks : Chrome plated DIN lock with anti-vibration mechanism (3 mm thick). Stainless steel locks or other versions are available as an accessory Mounting plate : Welded on M8 screws on the back of the cabinet In cabinets over height of800 mm mounting plate has a fold all around for extra stability Cable entry : No flange openings as standard to maximize sealing and clean lines Surface treatment : Polished (240s average roughness Ra=0,5 microns) Delivery includes mounting plate complete with mounting accessories packed in recycled packaging material Additional information Use of temperature control , ventilation , rain hood is recommended for demanding outdoor applications Please refer to general accessories section & technical chapter for further information Technical specifications Color Stainless Steel Width [Inch]15 .75 Height [Inch]15 .75 Depth [Inch]8 .27
