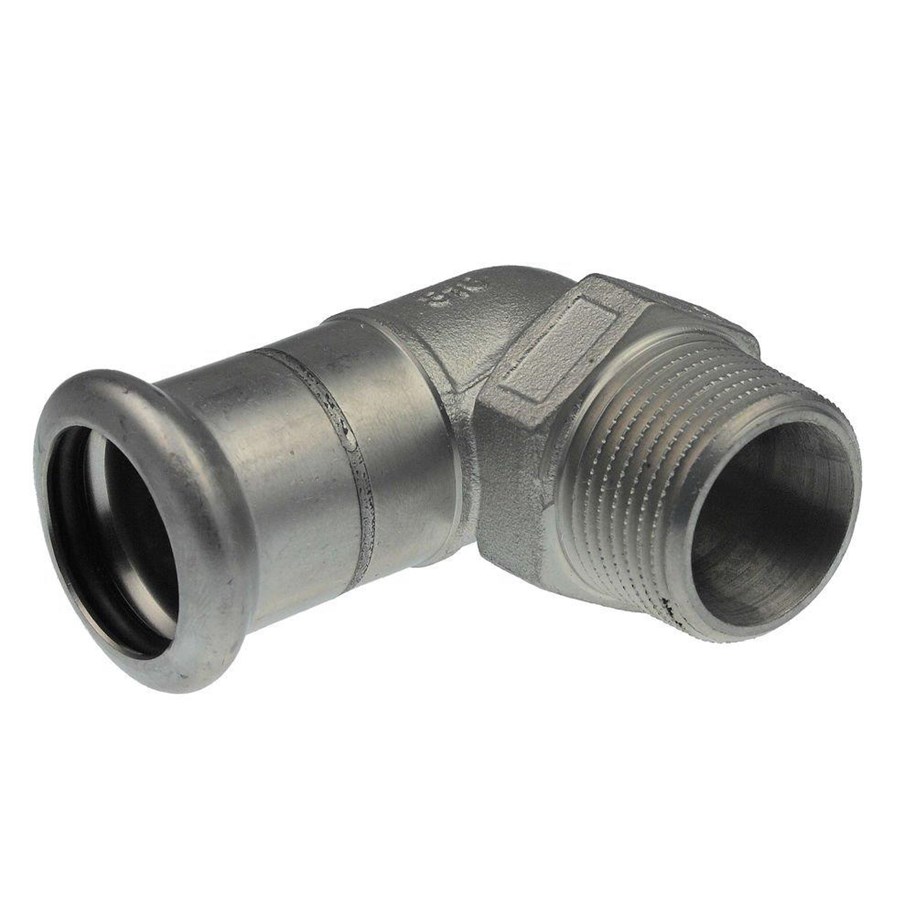

Vsh Fabrieken Xpr stainless angl ad 90 deg. fm 35xr5/4

VSH bend 90° socket/nipple 35 mm X 1 1/4" stainless steel. Product description: VSH X Press in stainless steel is a complete system with fittings and pipes from 15 mm -108 mm for installations for domestic water, rainwater, softened water, desalinated water, distilled water, heating systems and cooling systems. Benefits: Can be pressed with most brands of universal M-profile pressing tools. Complete system program with fittings, pipes and valves. Approved in accordance with DVGW working diagram W534. Very precise tolerances make the pipe easy to insert into fittings. Pressure testing of all welded parts. VA approved. Suitable for all pipe types that comply with DIN 17455.Technical characteristics:Material:Pipe and fittings: AISI 316 (1.4401)O-ring: EPDM (LBP) Leak Before PressedApplication area:Medium: WaterTemperature: -20/+110 CPressure: Max.16 bar Approval : VA Product family:VSH XPress in galvanized steel is a complete system with fittings and pipes ranging from12mm-108mm for heating and cooling systems.Benefits:Can be pressed with most brands of universal M-profile pressing tools.Complete system program including fittings,pipes,and valves.O-ring leak before pressed(LBP).Laser-welded joints.All welded joints are pressure tested.Very precise tolerances make the pipe easy to insert into fitting.Suitable for all types of tubes that complywith EN10305-3(formerly DIN2394).Technical characteristics :Material:Fittings Galvanized Steel RSt34-2 Packing EPDM leak before pressed(LBP)Application area :Medium :Water Temperature:-20/+110C Pressure :Max .16bar Technical specifications Weight :0 ,320 Dimension :35mmX11/4"
