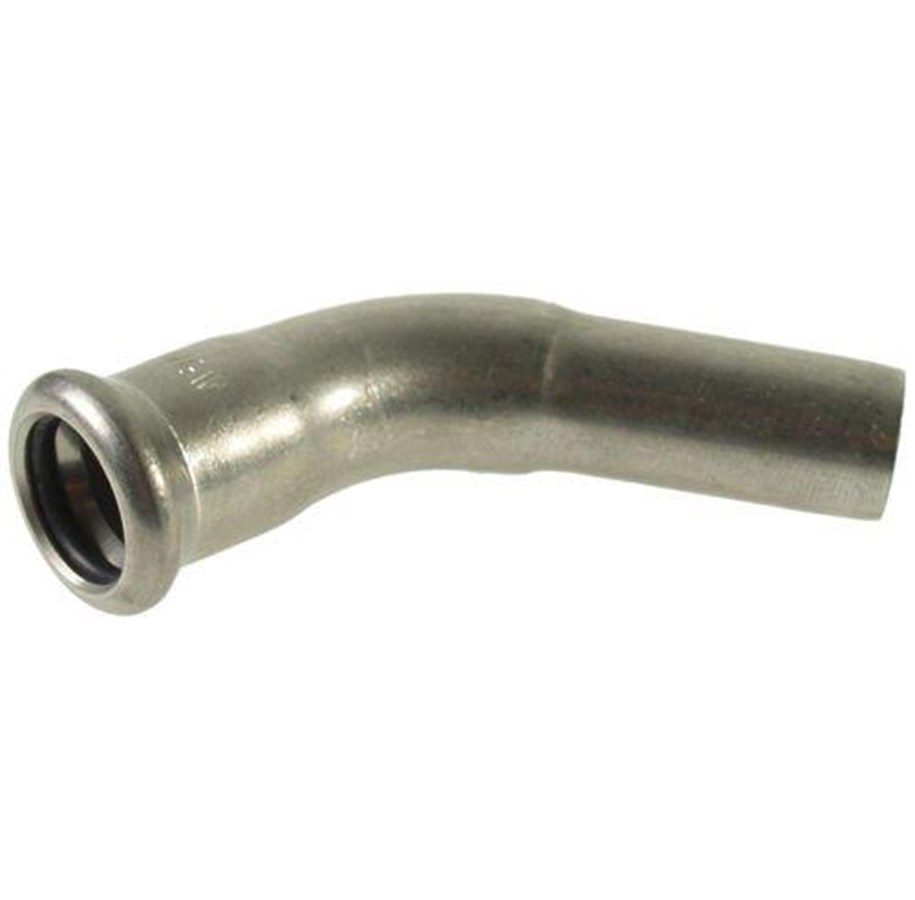

Vsh Fabrieken Xpr stainless elbow 45 deg. øf 88.9

VSH 45° bend nipple/muff in acid-resistant steel with a diameter of 88.9mm. The VSH X Press system in stainless steel is a complete system of fittings and pipes ranging from 15mm to 108mm for installations used for domestic water, rainwater, softened/decalcified water, desalinated water, distilled water, heating systems and cooling systems. Benefits include compatibility with most universal M-profile pressing tools, a complete range of fittings, pipes and valves approved according to DVGW work diagram W534 standards; precise tolerances allowing easy insertion of the pipe into the fitting; pressure testing on all welded parts; VA approval; compatibility with all pipe types complying with DIN17455 standards. Technical specifications include AISI316 (1.4401) material for both pipes and fittings; EPDM (LBP) leak before pressed O-ring sealant suitable for media such as water at temperatures ranging from -20/+110 C under maximum pressure up to16 bar.The VSH XPress family in galvanized steel is also available as a complete system comprising fittings and pipes ranging from12 mm-108 mm designed specifically for heating/cooling systems applications. Benefits include compatibility with most universal M-profile pressing tools; O-ring seals featuring leak before pressed technology ensuring tightness even if not fully pressed down during installation process ; laser-welded joints ensuring high quality welding results ; precise tolerances allowing easy insertion of the pipe into the fitting ; pressure testing on all welded parts . Compatibility extends to all pipe types complying with EN10305-3 (formerly DIN2394). Technical specifications feature RSt34-2 galvanized steel material used for fittings , EPDM leak before pressed(LBP) packing suitable for media such as water at temperatures ranging from -20/+110 C under maximum pressure up to16 bar . This product has dimensions measuring 88.9mm in diameter weighing approximately1.021 kg.
