Numer produktu : 2551491

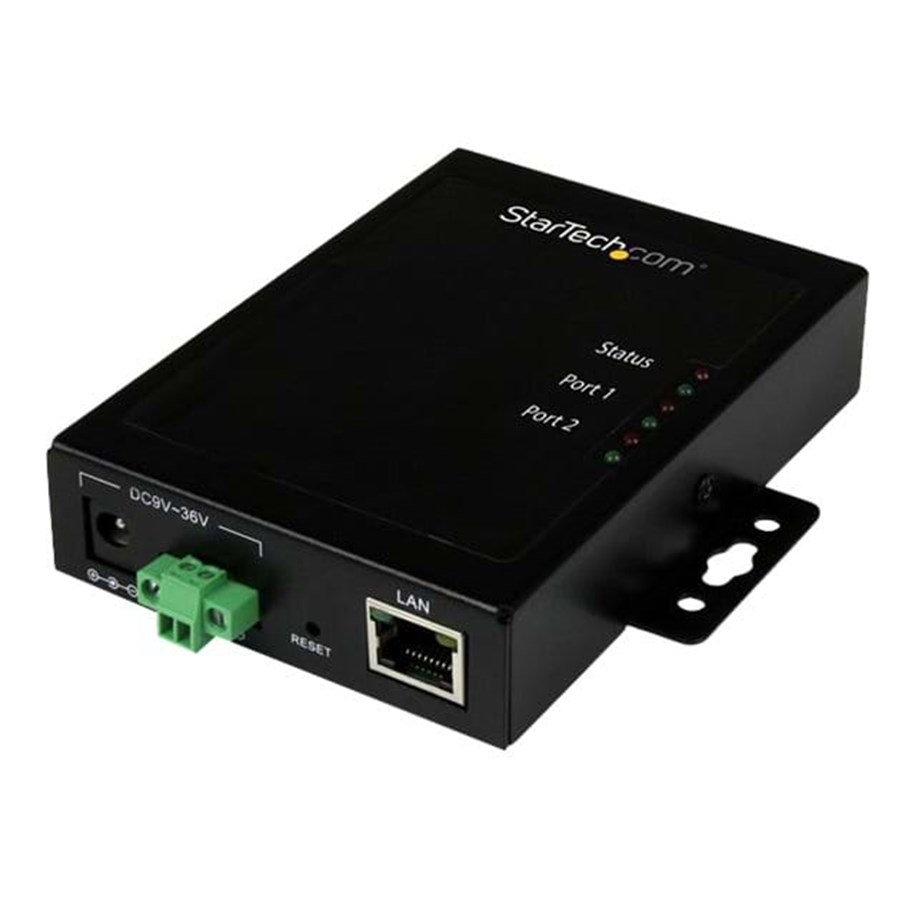

StarTech.com 2 Port Serial-to-IP Ethernet Device Server
RS232, Serwer urządzeń, 2 porty, 100Mb LAN, RS-232, AC 120/230 V / DC 9, 36 V, w ścianie
1 141,00 zł
927,64 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 6-7 dni
Ładowarka w zestawie
Connect, configure and manage two remote RS232 serial devices, over an IP network. This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it's perfect for factory and industrial settings.If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
Producent
Numer produktu
2551491
Model
NETRS2322P
Ean
0065030864145
Do strony producenta
Opis produktu
Startech 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - serwer urządzeń
Rodzaj urządzenia
Serwer urządzeń
Rodzaj obudowy
Montowany w ścianie
Lokalizacja
Australia, Ameryka Północna, Wielka Brytania, Europa
Ilość portów
2
Protokół komunkacyjny danych
Ethernet, Fast Ethernet, RS-232
Akcesoria w zestawie
Blok zacisków zasilania
Wymagany system operacyjny
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Zasilanie
AC 120/230 V / DC 9 - 36 V
Zasilanie nadmiarowe
Tak
Wymiary (szer./głęb./wys.)
8 cm x 11.3 cm x 2.5 cm
Waga
310 g
Ogólne
Rodzaj urządzenia
Serwer urządzeń
Szerokość
8 cm
Głębokość
11.3 cm
Wysokość
2.5 cm
Waga
310 g
Kolor obudowy
Czarny
Lokalizacja
Australia, Ameryka Północna, Wielka Brytania, Europa
Praca w sieci
Typ obudowy
Montowany w ścianie
Ilość portów
2
Technologia podłączania
Przewodowa
Szybkość transmisji danych
460.8 Kbps
Protokół komunkacyjny danych
Ethernet, Fast Ethernet, RS-232
Protokół warstwy Sieci / Transportu
TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP
Protokół zdalnego zarządzania
Telnet
Wskaźniki statusu
Status, LAN, łącze/aktywność
Cechy
Możliwy pełen dupleks, autonegocjacja, automatyczna funkcja uplink (auto MDI/MDI-X), 15 KV Electrostatic Discharge Protection, przycisk resetu, 8 KV Contact Electrostatic Discharge Protection
Zgodność z normami
IEEE 802.3, IEEE 802.3u
Rozszerzenie / połączenie
Interfejsy
2 x RS-232 - DB-9
1 x 100Base-TX - RJ-45
1 x 100Base-TX - RJ-45
Różne
Akcesoria w zestawie
Blok zacisków zasilania
Zgodność z normami
FCC, RoHS, WEEE, RCM
Zasilanie
Zasilacz
Adapter mocy zewnętrznej
Zasilanie nadmiarowe
Tak
Wymagane napięcie
AC 120/230 V / DC 9 - 36 V
Oprogramowanie / Wymagania systemowe
Dołączone oprogramowanie
Sterowniki i programy użytkowe, oprogramowanie Virtual COM (tylko Windows)
Wymagany system operacyjny
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Parametry środowiska
Minimalna temperatura pracy
0 °C
Maksymalna temperatura pracy
85 °C
