Numer produktu : 2597354

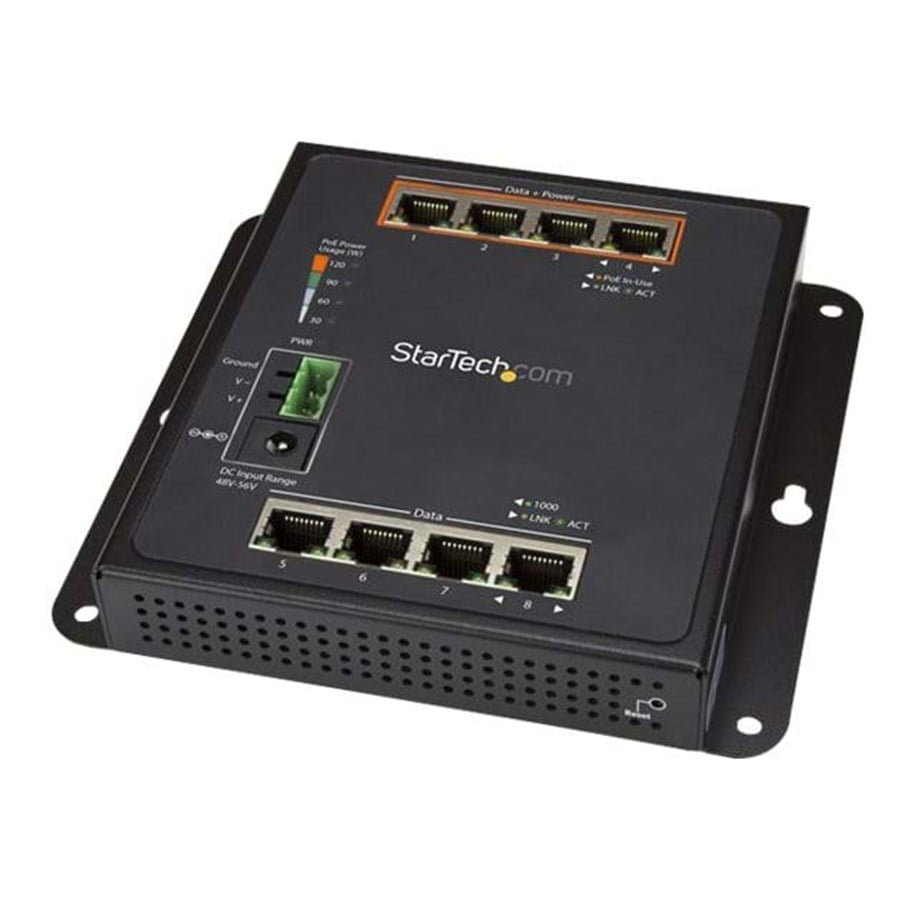

StarTech.com 8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
Managed, Wall Mount with Front Access, Przełącznik, Tak, 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+), montowany na ścianie, PoE+ (120 W), DC power
1 583,99 zł
1 287,80 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 6-7 dni
Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.
Producent
Numer produktu
2597354
Model
IES81GPOEW
Ean
0065030871112
Do strony producenta
Opis produktu
Startech Industrial 8 Port Gigabit PoE Switch, 4 x PoE+ 30W, Power Over Ethernet, Hardened GbE Layer/L2 Managed Switch, Rugged High Power Gigabit Network Switch IP-30/-40C to +75C - Managed Network Switch (IES81GPOEW) - przełącznik - 8 porty - Tak
Rodzaj urządzenia
Przełącznik - 8 porty - Tak
Podtyp
Gigabit Ethernet
Porty
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Zasilanie przez Ethernet
PoE+
Budżet poE
120 W
Wykonanie
Szybkość transferu danych: 2 Gb/s
Pojemność
Zdolność buforowania (MB): 0.512
Obsługiwane ramki Jumbo
9KB
Protokół routingu
IGMP, MLD
Protokół zdalnego zarządzania
HTTP
Cechy
Przełączanie warstwy 2, obsługa IPv6, tryb pełnego dupleksu, możliwość montowania na ścianie, obsługa TFTP, znaczniki VLAN, 6KV ESD Protector, uwierzytelnianie 802.1x, ICMP, protektor 6KV EFT
Zgodność z normami
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Zasilanie
DC 12 - 48 V
Wymiary (szer./głęb./wys.)
14.8 cm x 13.4 cm x 2.5 cm
Waga
625 g
Kolor
Czarny
Ogólne
Rodzaj urządzenia
Przełącznik - 8 porty - Tak
Rodzaj obudowy
Montowany na ścianie
Podtyp
Gigabit Ethernet
Porty
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Zasilanie przez Ethernet
PoE+
Budżet poE
120 W
Wykonanie
Szybkość transferu danych: 2 Gb/s
Pojemność
Zdolność buforowania (MB): 0.512
Obsługiwane ramki Jumbo
9KB
Protokół routingu
IGMP, MLD
Protokół zdalnego zarządzania
HTTP
Cechy
Przełączanie warstwy 2, obsługa IPv6, tryb pełnego dupleksu, możliwość montowania na ścianie, obsługa TFTP, znaczniki VLAN, 6KV ESD Protector, uwierzytelnianie 802.1x, ICMP, protektor 6KV EFT
Zgodność z normami
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Wskaźniki statusu
Zasilanie, PoE
Rozszerzenie / połączenie
Interfejsy
4 x 1000Base-T RJ-45
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x blok terminala
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x blok terminala
Zasilanie
Wymagane napięcie
DC 12 - 48 V
Różne
Kolor
Czarny
Akcesoria w zestawie
4 magnasy, zestaw montażowy szyny DIN, 4 śrubki, bolce montażowe, bolce blokujące, 4 podkładki, 8 zatyczek przeciwkurzowych RJ45
MTBF
>100,000 godziny
Zgodność z normami
FCC, RoHS, WEEE, IP30, RCM
Wymiary i waga
Szerokość
14.8 cm
Głębokość
13.4 cm
Wysokość
2.5 cm
Waga
625 g
Parametry środowiska
Minimalna temperatura pracy
-40 °C
Maksymalna temperatura pracy
75 °C
Dopuszczalna wilgotność
5–95% (niekondensująca)
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
