Numer produktu : 2597355

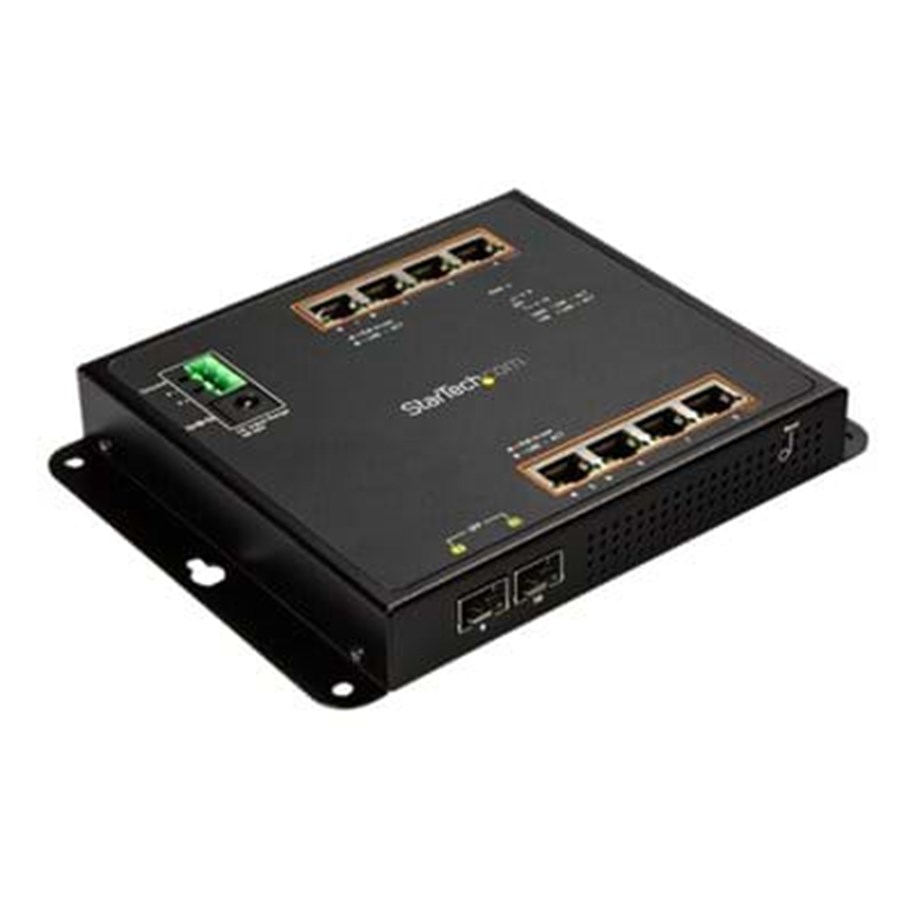

StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access
Managed, Wall Mount with Front Access, Przełącznik, Tak, 8 x 10/100/1000 (PoE+) + 2 x SFP, montowany na szynie DIN, montowany na ścianie, PoE+ (200 W)
2 597,00 zł
2 111,38 zł netto
Koszt wysyłki od 20,00 zł
Produkt sprowadzany, czas dostawy 12-13 dni
Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
Producent
Numer produktu
2597355
Model
IES101GP2SFW
Ean
0065030871198
Do strony producenta
Opis produktu
Startech Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - Managed Network Switch (IES101GP2SFW) - przełącznik - 10 porty - Tak
Rodzaj urządzenia
Przełącznik - 10 porty - Tak
Podtyp
Gigabit Ethernet
Porty
8 x 10/100/1000 (PoE+) + 2 x SFP
Zasilanie przez Ethernet
PoE+
Budżet poE
200 W
Wykonanie
Szybkość transferu danych: 2 Gb/s
Obsługiwane ramki Jumbo
9KB
Protokół routingu
IGMP, MLD
Protokół zdalnego zarządzania
HTTP
Cechy
Sterowanie przepływem, przełączanie warstwy 2, obsługa IPv6, tryb pełnego dupleksu, możliwość montowania na ścianie, obsługa TFTP, znaczniki VLAN, 6KV ESD Protector, uwierzytelnianie 802.1x, ICMP, protektor 6KV EFT
Zgodność z normami
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Wymiary (szer./głęb./wys.)
14.8 cm x 13.4 cm x 2.5 cm
Waga
496 g
Kolor
Czarny
Zaprojektowany dla
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCTEST, GLCTSTTAA, GLCZXSMRGDST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST
Ogólne
Rodzaj urządzenia
Przełącznik - 10 porty - Tak
Rodzaj obudowy
Montowany na szynie DIN, montowany na ścianie
Podtyp
Gigabit Ethernet
Porty
8 x 10/100/1000 (PoE+) + 2 x SFP
Zasilanie przez Ethernet
PoE+
Budżet poE
200 W
Wykonanie
Szybkość transferu danych: 2 Gb/s
Obsługiwane ramki Jumbo
9KB
Protokół routingu
IGMP, MLD
Protokół zdalnego zarządzania
HTTP
Cechy
Sterowanie przepływem, przełączanie warstwy 2, obsługa IPv6, tryb pełnego dupleksu, możliwość montowania na ścianie, obsługa TFTP, znaczniki VLAN, 6KV ESD Protector, uwierzytelnianie 802.1x, ICMP, protektor 6KV EFT
Zgodność z normami
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Wskaźniki statusu
Zasilanie
Rozszerzenie / połączenie
Interfejsy
8 x 1000Base-TX RJ-45 PoE+ - 30 W
2 x 1000Base-TX SFP
1 x blok terminala
2 x 1000Base-TX SFP
1 x blok terminala
Różne
Kolor
Czarny
Akcesoria w zestawie
4 magnasy, zestaw montażowy szyny DIN, 4 śrubki, 2 zatyczki przeciwkurzowe SFP, bolce montażowe, bolce blokujące, 4 podkładki, 8 zatyczek przeciwkurzowych RJ45
MTBF
>100,000 godziny
Zgodność z normami
FCC, RoHS, WEEE, IP30, RCM
Wymiary i waga
Szerokość
14.8 cm
Głębokość
13.4 cm
Wysokość
2.5 cm
Waga
496 g
Parametry środowiska
Minimalna temperatura pracy
-40 °C
Maksymalna temperatura pracy
75 °C
Dopuszczalna wilgotność
5–95% (niekondensująca)
Informacja o kompatybilnosci
Zaprojektowany dla
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
