Numer produktu : 2901904

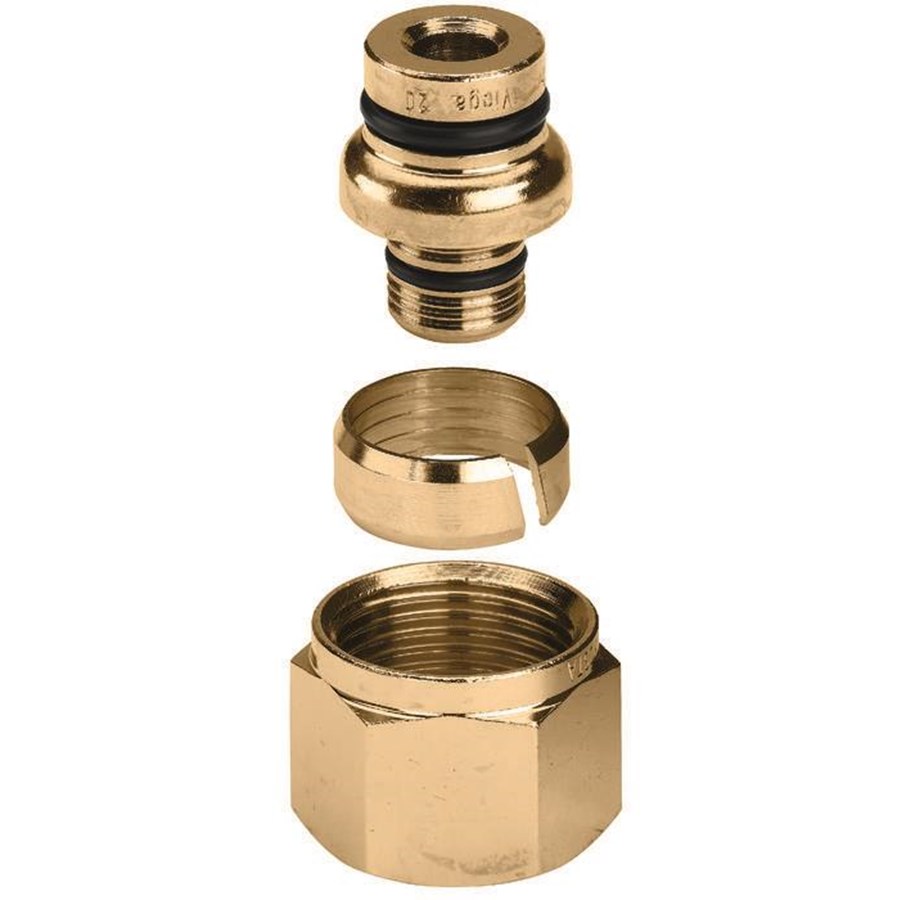

Viega Terminal screw 16 x 1.8 mm gunmetal

Flow-optimised press connector system for drinking water installations in acc. with DIN 1988 and DIN 50930-6 as well as heating installations, tested in acc. with DVGW worksheet W 534.Press connectorsSafe and fast processing without calibration of the pipe ends through O-ring-free press technology in all dimensions. In this way, widening or calibration of the pipe-ends becomes superfluous and reduces the assembly times. The interaction between aerodynamic radii and minimal cross-section narrowings ensure the lowest pressure losses in press systems for multilayer pipes. This allows a smaller dimensioning of drinking water installations and reduces the pipeline volume.SC-ConturAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionPipesRaxofix PE-Xc/Al/PE-Xc•dimensionally stable, oxygen-proof in acc. with DIN 4726, greyRaxofix PE-Xc•flexible, blackDimensionsPress connectors and pipes•Raxofix-PE-Xc/Al/PE-Xc: d 16/20/25/32/40/50/63•Raxofix PE-Xc: d 16/20Areas of application PE-Xc/Al/PE-XcDrinking waterHeatingRainwaterCompressed airAreas of application PE-XcRainwaterDrinking waterUse of the system for application areas other than those described here must be agreed with Viega Service Center.Operating conditionsDrinking water installations•Operating temperature max. 70 °C•Operating pressure max. 1.0 MPaHeating installations•Operating temperature max. 80 °C•Operating pressure max. 1.0 MPaIrrelevant of the direction of flow, mixed installations are permitted.NoteThe DVGW test mark is only valid f

Czytaj wiecej
84,00 zł 68,29 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 3-4 dni

Viega Clamp Fitting 16 x 1.8 Red Brass / Polished Product Description: Flow-optimized press fitting system for drinking water installations according to DIN 1988 and DIN 50930-6 as well as heating installations, controlled according to DVGW work sheet W 534. Press fittings ensure safe and fast processing without calibration of pipe ends using pressing technology, without O-ring, in all dimensions. This makes expensive expansion and calibration of pipe ends unnecessary and reduces installation time. The combination of flow-optimized radii and minimal cross-sectional constrictions ensures low pressure drops in press systems for multilayer pipes. This allows for smaller dimensioning of drinking water installations and reduces pipeline volume.SC ConturAll sizes with SC Contur - fittings that have not been pressed during installation become clearly visible when the system is filled with liquid. SC Contur is certified and meets the requirements of DVGW work sheet W 534, section 12.14, guaranteed leak-proof when not pressed.During leak testing with water, Viega can detect unpressed fittings in the pressure range from 0.1 MPa–0.65 MPa; during dry leak testing with compressed air or inert gases from22 hPa–0 .3 MPa.Labeling•Green dot on press connectionPipeRaxofix-PE-Xc/Al/PE-Xc•dimensionally stable, oxygen-tight according to DIN4726 , grayRaxofix-PE-Xc•flexible , blackDimensionsPress fittingsand pipes•Raxofix-PE-Xc/Al/PE-Xc: d16 /20 /25 /32 /40 /50 /63 • Raxofix - PE - X c : d16/20Applications PE - X c/Al/PE - X cDrinking WaterHeatingRainwaterCompressed AirApplications PE –X cRainwaterDrinking WaterIn case of use for other than the described applications, contact Viega Service Center to coordinate materials.Operating conditionsDrinking water installations•Maximum operating temperature 70 °C•Maximum operating pressure 1.0 MPaHeating installations•Maximum operating temperature 80 °C•Maximum operating pressure 1.0 MPaMixed installations are allowed regardless of flow direction.RemarksDVGW approval applies only to use

Producent
Numer produktu
2901904
Model
701512
Ean
4015211701512

Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
