Numer produktu : 3224871

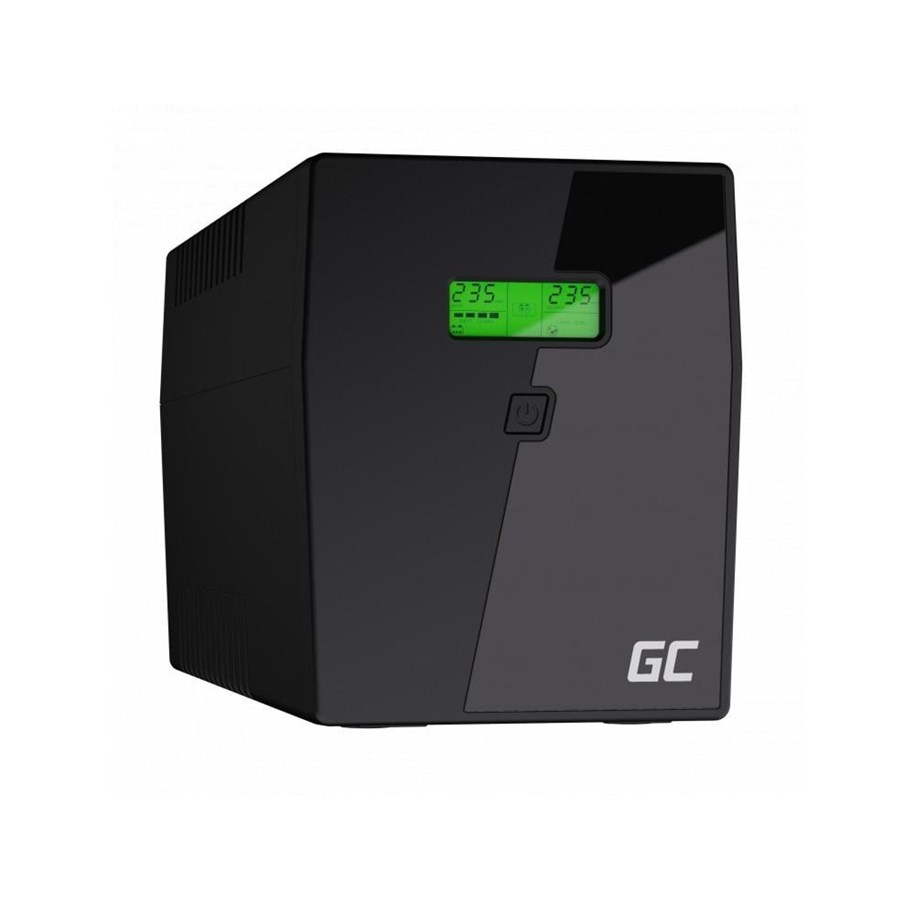

Green Cell PowerProof UPS04 - 1500VA/900W | Line-Interactive | 24V 2x9Ah
Green Cell GC PowerProof UPS04 zasilacz UPS line-interactive z symulowaną sinusoidą na wyjściu podczas pracy na baterii, wyświetlaczem LCD oraz stabilizacją napięcia boost/buck AVR. Jednostka o większej mocy z dwoma akumulatorami, odpowiednia do komputerów PC, NAS i niewielkich konfiguracji serwerowych.
- Topologia: Line-interactive
- Moc: 1500VA / 900W
- Znamionowe napięcie wejściowe: 110/120 lub 220/230/240 Vac
- Zakres napięcia pracy: 81–145 Vac / 162–290 Vac
- Częstotliwość pracy: 50/60Hz (automatyczne wykrywanie)
- Przebieg wyjściowy (tryb bateryjny): Symulowana sinusoida
- Regulacja napięcia AC (tryb bateryjny): ±10%
- Czas przełączenia: Typowo 2–6ms, maks. 10ms
- Akumulator: 24Vdc, 2x 12V/9Ah
- Czas ładowania: 6–8 godzin do 90% pojemności
- Wyświetlacz: LCD (tryb AC/bateryjny, poziom obciążenia, poziom baterii, napięcie wejścia/wyjścia, przeciążenie, błąd, niski poziom baterii)
- Zabezpieczenia: Zwarcie, przeciążenie, przeładowanie, nadmierne rozładowanie
- Komunikacja: USB lub RS232 (Windows, Linux, Unix, macOS)
- Gniazda: 2x Schuko, 2x IEC C13
- Poziom hałasu: Mniej niż 55dB
- Wymiary (D x W x H): 380 x 158 x 198 mm
- Waga: Ok. 10.1 kg
- Wilgotność pracy: 0–90% RH @ 0–40°C, bez kondensacji
- Certyfikaty: IEC/EN62040-1, IEC/EN60950-1, IEC/EN62040-2, IEC/EN62040-3, IEC 61000-4-2/3/4/5/6/8
Wbudowany wentylator chłodzący wspiera pracę przy stałym obciążeniu przy tej wyższej mocy, a dwa akumulatory 12V/9Ah zapewniają wydłużony czas podtrzymania. Gniazda IEC C13 obok gniazd Schuko pasują do sprzętu serwerowego i sieciowego.
Na stanie
405,00 zł
329,27 zł netto
Koszt wysyłki od 20,00 zł
4 szt.
Na stanie - czas dostawy 2-3 dni
What is a UPS?
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
Producent
Numer produktu
3224871
Model
UPS04
Ean
5902701419646
Do strony producenta
Opis produktu
Green Cell UPS Micropower 1500VA - UPS - 900 wat - 1500 VA
Rodzaj urządzenia
UPS - zewnętrzny
Waga
11.1 kg
Napięcie wejściowe
AC 220/230/240 V
Napięcie wyjściowe
AC 230 V
Zasilanie
900 wat / 1500 VA
Złącza wychodzące
4 x power CEE 7/7
Bateria
- 9 Ah
Ilość baterii
2
Praca w sieci
USB, Ethernet
Wymiary (szer./głęb./wys.)
15.8 cm x 38 cm x 19.8 cm
Ogólne
Rodzaj urządzenia
UPS - zewnętrzny
Zasilacz
Technologia UPS
Liniowa interaktywna
Napięcie wejściowe
AC 220/230/240 V
Częstotliwość wyjściowa
50/60 Hz
Wymagana częstotliwość
50/60 Hz
Rodzaje złącz wyjściowych zasilania
4 x power CEE 7/7
Napięcie wyjściowe
AC 230 V 50/60 Hz
Zasilanie
900 wat / 1500 VA
Ochrona przepięciowa łącza danych
Sieć - RJ-45 - 1 linia wchodząca / 1 linia wychodząca
Kształt fali wyjściowej
Sinusoida
Eliminowanie zakłóceń
Tak
Bateria
Ilość
2
Napięcie wyjściowe
12 V
Pojemność
9 Ah
Czas Transferu
6 ms
Praca w sieci
Interfejs do zdalnego zarządzania
USB, Ethernet
Rozszerzenie / połączenie
Interfejsy
1 x obsługa (USB) - USB 4 pin Typ B
Różne
Charakterystyka
Automatyczna regulacja napięcia (AVR)
Wymiary i waga
Szerokość
15.8 cm
Głębokość
38 cm
Wysokość
19.8 cm
Waga
11.1 kg
