AXAGON Combo 5-in-1 USB-C 5 Gbps Hub USB hub - 5 - USB 3.1 - Srebrny

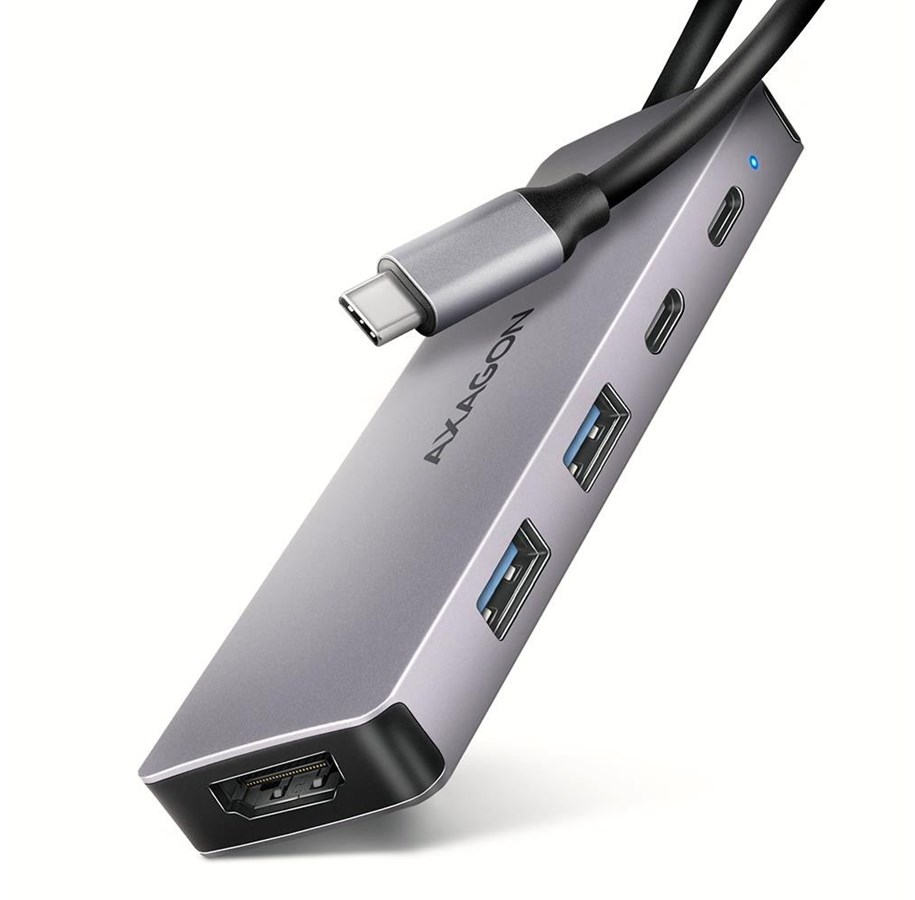

The multi-port USB-C 5 Gbit/s AXAGON HMC-5H60 5-in-1 hub expands your laptop, computer or phone with five ports. Via the double-sided USB-C connector, you can quickly and easily connect a monitor and three USB devices to the computer simultaneously. You also have the option to supply your laptop with power using Power Delivery technology at the same time. The port replicator thus provides a simple and compact 5-in-1 docking station for modern laptops.

The USB hub offers three 5 Gbit/s outputs: two with standard USB-A and one with USB-C data connector. Transfer rates up to 5 Gbit/s are possible thanks to the fast USB 3.2 Gen 1 interface. The hub can permanently connect several external drives simultaneously and allows charging of phones and tablets with up to 1.5 A / 5 V. You can easily charge, for example, Android smartphones, Apple iPhone, Apple iPad, etc.

USB-C Power Delivery port: Another USB-C connector is reserved solely for charging phones or laptops using Power Delivery 3.0 technology with up to 100 W of power. Connect a suitable USB-C Power Delivery charger to the hub and then connect the hub to a laptop that supports Power Delivery, saving one USB-C port.

HDMI output: Provides high-quality image up to 4K / 60 Hz Ultra HD resolution and supports multi-channel audio transmission. High frequencies at popular gaming resolutions of 2K / 120 Hz or Full HD / 240 Hz are also supported. HDR (High Dynamic Range) support expands colour and contrast. For video outputs to work correctly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3, 4 port or higher.

The compact and slim aluminium body not only looks great, but also provides mechanical durability and passive cooling. The finely textured surface resists fingerprints.

Inputs (laptop connection):

• USB 5 Gbit/s (USB 3.2 Gen 1 / USB 3.0), USB-C male connector.
• Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4.

Input (power supply):

• USB Power Delivery 3.0 – 100 W port, USB-C female connector.
• Charging the notebook via USB-C hub from a power adapter.
• PD power must be supported by both the laptop (or phone) and the wall charger.

USB outputs:

• 2× USB 5 Gbit/s ports, USB-A female connector.
• 1× USB 5 Gbit/s port, USB-C female connector.
• Can handle several external drives simultaneously.
• Charging mobile devices (including iPad) with up to 1.5 A / 5 V via USB-A and USB-C ports.

Video output:

• 1× HDMI A port, HDMI A female connector.
• 4K resolution 4096×2160 at up to 60 Hz.
• 2K / WQHD resolution 2560×1440 at up to 120 Hz.
• FHD resolution 1920×1080 at up to 240 Hz.
• Maximum supported resolutions and frequencies require a computer with DisplayPort version 1.4.
• Hub must be connected to a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or Thunderbolt 3/4. Correct OS required; video output unavailable otherwise.
• HDR support (10-bit) – realistic reproduction of light and dark details.
• HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signalling) support.
• Full support for HDCP 1.4 and 2.2.
• Up to 2-channel LPCM audio.
• 2-channel audio sampling up to 192 kHz / 24-bit – depends on source and end device.

Other features:

• Hot Plug support for connecting devices while running.
• Full Plug and Play support.
• Sleep mode support.
• Power via USB bus – from USB bus or PD wall charger.
• Heavy-duty aluminium body for improved cooling.
• LED indicates constant connection to the computer.
• High-quality shielded cable ensures high-speed communication and minimal interference.
• Dimensions 110×32×11 mm.
• Weight 52 g (incl. cable).
• USB cable length 15 cm.

Supported operating systems:

• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS, Android.
• Compatibility depends on OS and device manufacturer support.
• DisplayPort Alternate Mode (DP Alt Mode) requires updated OS and device support.
• Graphics drivers may affect proper operation; latest drivers recommended.

Package contains:

• USB-C hub with fixed 15 cm cable,
• Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
• Packed in a cardboard box with hanging hole.
