AXAGON Dual 4K Display 12-in-1 USB4 40 Gbps HUB USB hub - 12 - Czarny

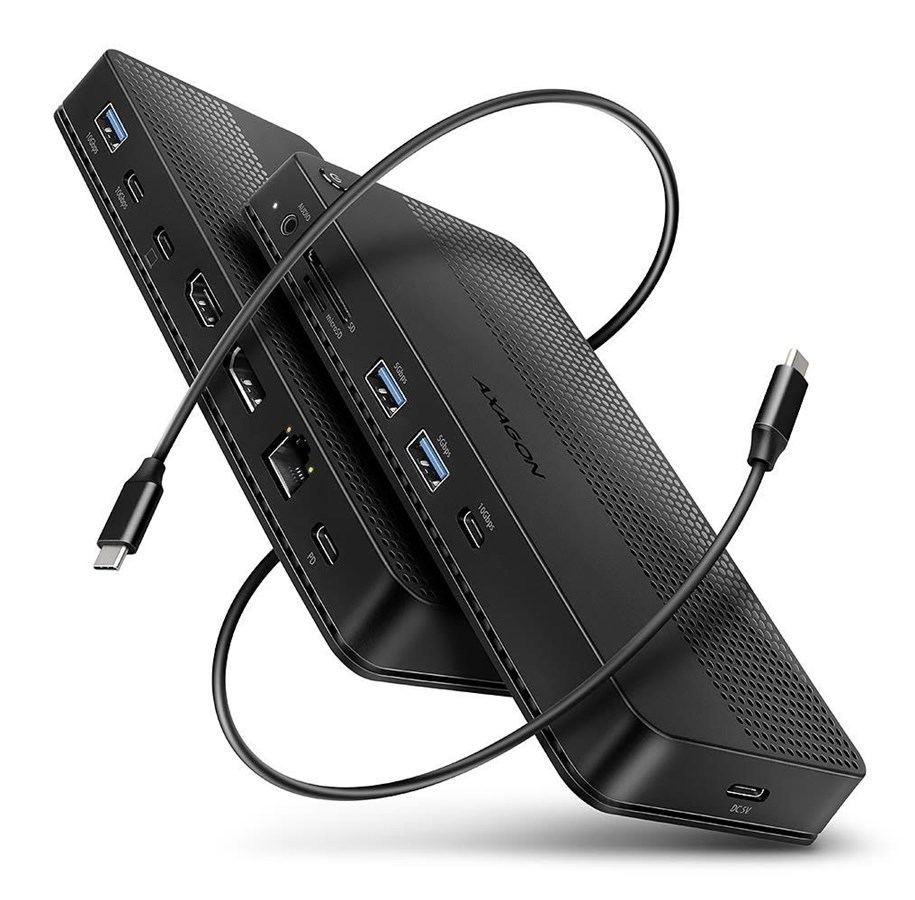

AXAGON HMC-U4 DUAL 4K DISPLAY dock turns your laptop, tablet or phone into a multimedia centre. With next-generation USB4 technology, this docking station offers a total data throughput of up to 40 Gbit/s. You can take full advantage of demanding computer accessories and enjoy a high-end experience. Whether you're watching 8K video or working with two 4K monitors simultaneously, this technology delivers the performance you need. USB4 offers the benefit of Thunderbolt compatibility while supporting backward compatibility with previous generations of USB.

You will connect your laptop to the 12-in-1 docking station via the supplied 80 cm long cable. You have fast SD (UHS-II) and microSD card readers, and connectors for connecting two external monitors, five USB devices, headphones or headset, and Power Delivery power. The USB-C port of your mobile device must support video output (DisplayPort Alternate Mode) and Power Delivery power.

HDMI and DisplayPort outputs allow you to connect an external monitor, TV or projector with up to 8K/30 Hz Ultra HD, 4K/144 Hz Ultra HD or 2K/240 Hz Quad HD resolution, with support for multi-channel audio streaming. With HDR support, you enjoy a richer colour spectrum and sharper contrasts. Connecting two monitors simultaneously gives resolutions up to 4K/144 Hz on the DP output and 4K/60 Hz on the HDMI output. Supported resolutions and features depend on the connected monitor and laptop.

The docking station has three 10 Gbit/s USB ports (2× USB-C, 1× USB-A) and two 5 Gbit/s USB-A ports. These five USB ports allow connection of external drives, flash drives, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with up to 7.5 W of power.

The memory card reader supports reading and writing of SD (UHS-II) and microSD (UHS-I) cards up to 2 TB. UHS-II cards reach speeds up to 156 MB/s (full duplex) or 312 MB/s (half duplex); UHS-I cards up to 104 MB/s. The reader allows simultaneous handling of cards in both slots and direct copying between them.

The 3.5 mm audio output allows connection of stereo headphones, headset or active speakers. Equipped with a high-quality DAC converter, it supports sampling up to 384 kHz at 24 bit for superior sound quality suitable for lossless formats such as FLAC, WMA, WAV, APE, AAC and ALAC.

Gigabit network card extends your computer with a fast and stable network connection, adding the missing RJ-45 connector or another network card.

The USB-C (PD) input supports a Power Delivery charger, allowing both your mobile device and the dock to be powered directly with up to 100 W. Additional power via USB-C input (DC 5 V) boosts the hub for devices with higher power consumption such as multiple external drives.

The button on top turns the dock on and off. Four rubber feet keep it firmly in place. The elegant ribbed surface resists fingerprints, and vents on the underside ensure airflow to prevent overheating.

Input (connection to computer or mobile device):

• USB4 40 Gbit/s (USB4 Version 1.0), USB-C female connector
• Compatible with Thunderbolt 3/4, USB 10 Gbit/s, USB 5 Gbit/s

Input (power supply):

• USB Power Delivery 3.0 - 100 W connector (charging only), USB-C female (PD) connector
• PD power must be supported by both mobile device and mains charger
• Additional power supply for external drives via hub, USB-C female connector (DC 5 V). Recommended 5 V/2 A

USB outputs:

• 2 × USB 5 Gbit/s ports, USB-A female connector
• 1 × USB 10 Gbit/s port, USB-A female connector
• 2 × USB 10 Gbit/s ports, USB-C female connector
• Hub supports two external drives simultaneously
• Charging of mobile devices (including iPad) up to 1.5 A via USB-A ports

Video outputs:

• 1 × HDMI A port, HDMI A female connector
• 1 × DP port, DisplayPort female connector

Maximum supported resolution:

• Laptop with USB4 40 Gbit/s or Thunderbolt 4 port:
  • 1 monitor - up to 8K/30 Hz, 4K/144 Hz Ultra HD, 2K/240 Hz Quad HD, 1080p/360 Hz Full HD
  • 2 monitors - up to 4K/144 Hz + 60 Hz Ultra HD, 2K/240 Hz + 144 Hz Quad HD, 2 × 1080p/240 Hz Full HD
• Notebook with USB 10 Gbit/s port:
  • 1 monitor - up to 8K/30 Hz, 4K/144 Hz Ultra HD, 2K/240 Hz Quad HD, 1080p/360 Hz Full HD
  • 2 monitors - up to 2 × 4K/60 Hz Ultra HD, 2 × 2K/144 Hz + 144 Hz Quad HD, 2 × 1080p/240 Hz Full HD

Video features:

• Also compatible with devices with Thunderbolt 3 ports
• For Apple devices running macOS, maximum refresh rate usually limited to 60 Hz
• To achieve maximum resolution and frequency, dock must be connected to USB-C supporting DP Alt Mode ≥ 1.4 or Thunderbolt 4. Updated OS and drivers required
• HDR support (High dynamic range, 10 bit) - realistic reproduction of light and dark details
• HPD (Hot-Plug-Detect) support
• TMDS (Transition Minimized Differential Signalling) support
• HDCP 1.4 and 2.3 full support
• Up to 8-channel LPCM audio, compressed audio (AC-3, DTS) and HBR audio format support
• Supports sample rates up to 192 kHz and 24 bit audio, depending on source and destination

Card reader - two slots:

• MicroSD slot: microSD / microSDHC / microSDXC / TransFlash
• SD slot: SD / SDHC / SDXC / MMC 4.0 / MMC Dual Voltage / MMC mobile / RS-MMC; adapter for miniSD, microSD / microSDHC / microSDXC, MMC Micro
• SD UHS-II support, speeds up to 156 MB/s full duplex or 312 MB/s half duplex
• Support SD 1.0–4.0 (SDXC up to 2 TB)
• MicroSD UHS-I support, speed up to 104 MB/s
• Hardware ECC and CRC functions supported
• 2 LUN - reader indicated as two disk drives; card-to-card copy possible

Audio output / input:

• 1 × 3.5 mm 4‑pin jack for headset, headphones or active speakers
• 2-channel analog stereo output 384 kHz @ 24 bit
• 192 kHz @ 24 bit analog microphone input

RJ-45 output:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable
• Transmission rates: 10/100/1000 Mbit/s
• Supported specifications: IEEE 802.3 10Base‑T, IEEE 802.3u 100Base‑TX, IEEE 802.3ab 1000Base‑T
• 10/100/1000 Mbit/s auto-detection

Other features:

• Hot Plug support for connecting while running
• Full Plug and Play support
• Standby mode support
• Power supply via USB bus
• Power supply via PD charger (not included)
• Additional power supply for USB ports (USB-C DC 5 V, any 5 V/2 A USB charger)
• ON/OFF button to switch dock on/off
• LED indicates connection with steady glow
• High-quality shielded cable for fast communication and minimal interference
• Dimensions 188 × 80 × 20 mm
• Weight 164 g (without cable)
• USB-C ↔ USB-C cable 80 cm for dock connection
• USB-A ↔ USB-C cable 100 cm for additional power supply

Supported operating systems:

• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android
• Compatibility depends on OS and device manufacturer
• DisplayPort Alternate Mode only supported in updated OS and device
• Graphics card drivers may affect correct operation; latest drivers recommended

Package contains:

• USB-C docking station
• USB-C ↔ USB-C cable, 80 cm
• USB-A ↔ USB-C cable, 100 cm
• Multilingual manual (CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA)
• Packed in a cardboard box
