AXAGON SuperSpeed USB-A Hub with 3 USB Ports and Gigabit LAN USB hub - 3 - USB 3.2 - Czarny

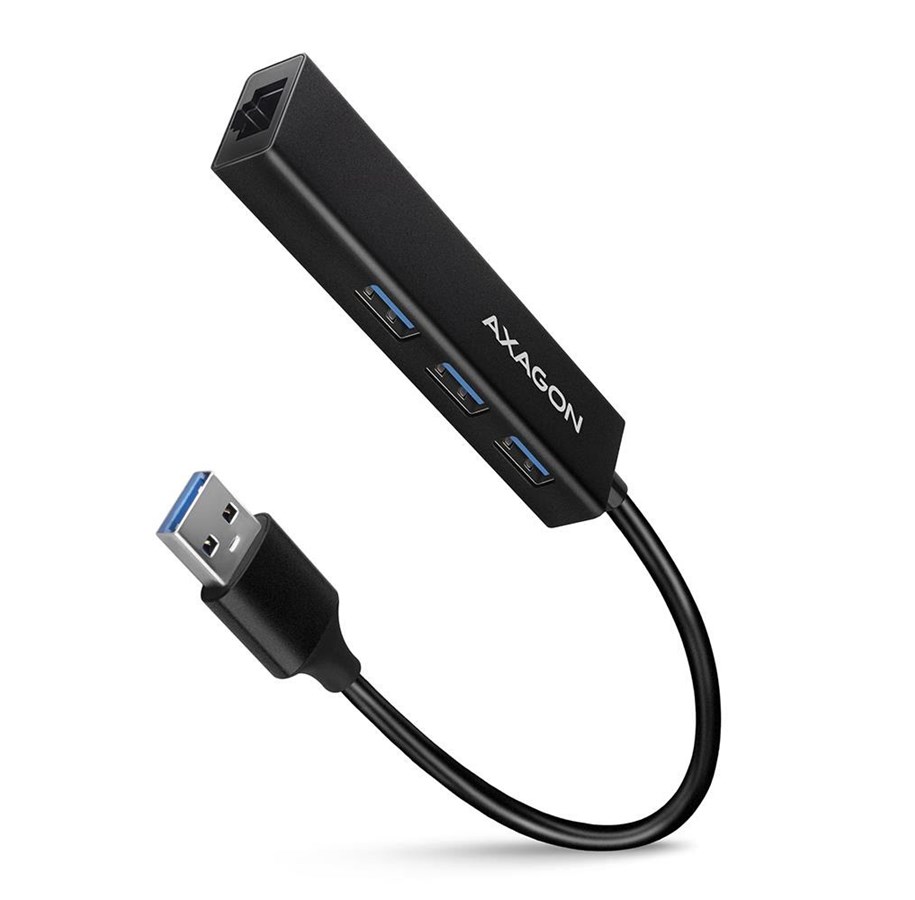

Slim metal USB 3.2 Gen 1 (USB 3.0) multi-port hub AXAGON HMA-GL3A connects up to three USB devices to laptop or computer and also adds Gigabit network card which connects your computer to high speed network.

The metal hub body is made of aluminium and provides perfect mechanical protection for frequent carrying. Elegant finely structured body surface prevents fingerprints. Permanently fixed 20 cm long USB cable is ideal for users of mobile devices.

This compact multiport hub also handles the permanent connection of several external drives. Thanks to the fast USB 3.2 Gen 1 interface transfer speed is up to 5 Gbit/s.

The Gigabit network adapter expands the computer with a fast and stable network connection, adds the missing RJ-45 network connector or adds another network card. The LAN adapter is compatible with 10/100/1000 Mbit/s speed and also offers a wide range of features, such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, support for various modes of the Wake-on-LAN feature, work with virtual LAN (VLAN) and advanced Power Management features. In modern operating systems from Windows 8.1 above, the adapter allows easy automatic installation without the need for an Internet connection.

The port replicator is ideal accessory for ultrabooks with a small number of USB-A ports and without network card. The hub can connect with phones using the appropriate OTG or USB-A > USB-C adapter. You can connect a flash drive, keyboard and mouse to your phone or tablet. Some Android phones and tablets, such as Samsung S9+, can connect to the Internet with a network Ethernet cable with suitable adapter*.

Input

• 1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-A male connector
• Backward compatible with USB 3.1 Gen 1 / USB 3.0 / USB 2.0 / USB 1.1
• Connecting USB type A male connector on a fixed 20 cm long cable

USB Outputs

• 3x SuperSpeed USB port, USB-A female connectors
• Supports transfer rates 5.000 / 480 / 12 / 1.5 Mbit/s (SuperSpeed / High / Full / Low speed)
• Total bandwidth / transfer rate limited by USB 3.2 Gen 1 interface (theoretically up to 5 Gbit/s)
• USB hub handles the permanent connection of several external drives

RJ-45 Output

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable
• Supported transmission rates for Ethernet interface 10/100/1000 Mbit/s
• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications
• 10/100/1000 Mbit/s auto-detection
• Supports IPv4/IPv6 packet Checksum Offload Engine (COE)
• Supports TCP Large Send Offload V1 and V2
• Supports IEEE 802.1P Layer 2 priority encoding & decoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption at rest
• Supports Jumbo frame
• Supports full-duplex transmissions with IEEE 802.3x flow control and half-duplex transmissions with back-pressure flow control
• Supports Auto MDI/MDIX - crossover detection and auto-correction
• Supports hardware Cyclic Redundancy Check (CRC) to detect transmission errors
• Supports Pair Swap/Polarity/Skew Correction

Wake-on-LAN feature support

• Supports sleep mode and remote Wake Up via Magic Packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and Link Change Wake-up
• Supports ECMA-393 proxZzzy® standard for sleeping hosts
• RealWoW! technology support allows remote wake up over the Internet

Advanced Power Management features

• Supports Advanced Configuration Power Management Interface (ACPI)
• Supports Power Management offload (ARP & NS)
• Supports Microsoft Always On Always Connected (AOAC)
• Supports Intel Converged Platform Power Management (CPPM)
• Supports Link Power Management (LPM)
• Supports Operating System-directed Power Management (OSPM)
• Supports IEEE 802.3az EEE (Energy Efficient Ethernet)

Other features

• Possibility to connect your device while running thanks to Hot Plug support
• Full Plug and Play support
• Sleep mode support
• High quality shielded cable
• Power supply via USB bus (USB bus power)
• Dimensions 90 x 23 x 13 mm
• Weight 38 g (incl. cable)
• USB cable length 20 cm

Supported OS

• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later
• MacOS X 10.4.x and later, Linux with kernel 2.6.x and later, Android most versions (WARNING - check with the Android device manufacturer if Ethernet connection is supported)

Package contains

• SuperSpeed USB multi port hub with fixed 20 cm long USB cable
• Printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA
• Packed in a cardboard box with a hanging hole

*OTG reduction (adapter) recommended for devices with micro USB connector; USB-C > USB-A reduction recommended for devices with USB-C connector, e.g., AXAGON RUCM-AFA
