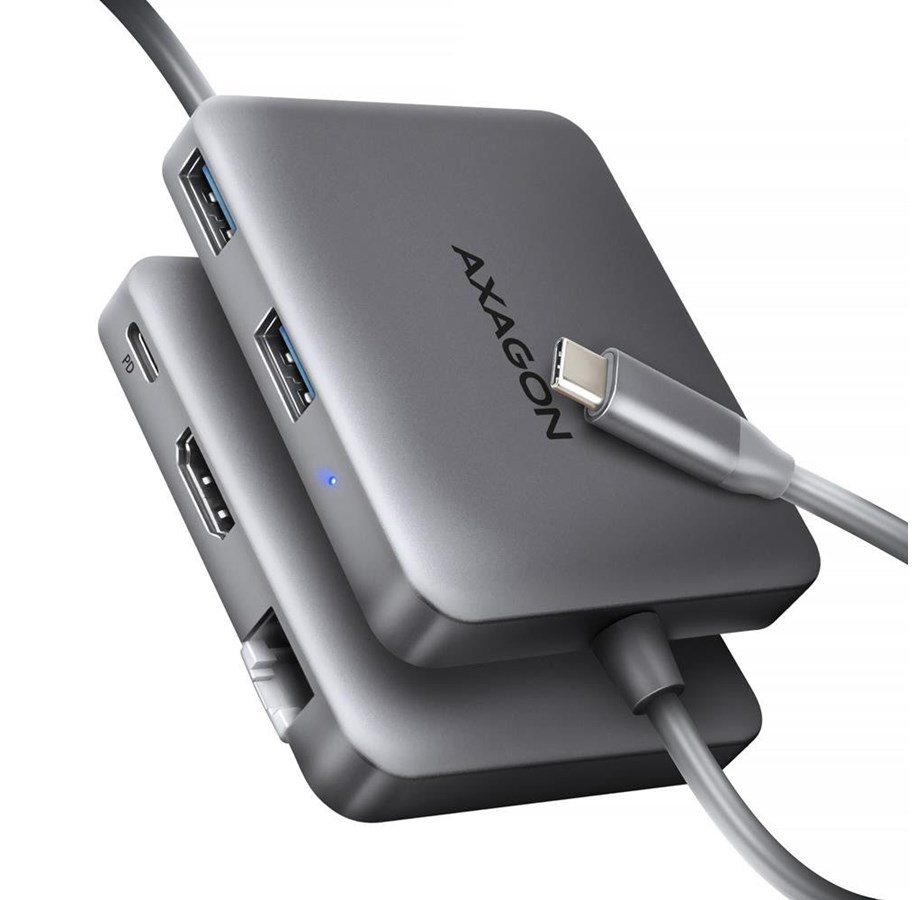

AXAGON SuperSpeed USB-C Hub USB hub - 5 - USB 3.0 - Srebrny
Expand your laptop with the AXAGON HMC-5HL Multiport USB-C 5 Gbit/s hub. It provides two USB-A ports, a Power Delivery USB-C port, HDMI video output up to 4K/60 Hz, and a Gigabit Ethernet connection, all in a compact aluminium design. Supports charging of devices and high-speed data transfer simultaneously.
The multi-port USB-C 5 Gbit/s hub AXAGON HMC-5HL expands your laptop with five ports, allowing you to connect a monitor, two USB devices and a Gigabit Ethernet network simultaneously via the double-sided USB-C connector, while also supplying power to your laptop using Power Delivery technology, providing a universal and powerful 5-in-1 docking station for modern laptops.
USB outputs:
- 2x USB 5 Gbit/s ports, USB-A female connectors
- 1x Power Delivery port (power only), USB-C female connector
- The hub can permanently connect up to two external drives
- Charging of mobile devices (including iPad) with a current of up to 1.5 A/5 V from the USB-A ports
Video output:
- 1x HDMI A port, HDMI A female connector
- 4K resolution 4096 x 2160 at up to 60 Hz
- 2K/WQHD resolution 2560 x 1440 at up to 120 Hz
- FHD resolution 1920 x 1080 at up to 240 Hz
- Requires a DisplayPort 1.4 enabled computer and a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or Thunderbolt 3/4
- HDR support (High Dynamic Range, 10-bit) for realistic light and dark detail reproduction
- HPD (Hot-Plug-Detect) support
- TMDS (Transition Minimized Differential Signalling) support
- Full HDCP 1.4 and 2.3 support
- Support for 2-channel audio up to 192 kHz/24-bit depending on source and end device
RJ-45 output:
- Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable
- Supported transmission rates: 10/100/1000 Mbit/s
- IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T compliant
- Auto-detection 10/100/1000 Mbit/s
- Wake-on-LAN support
Power Delivery:
- Power Delivery 3.0 support – device charging via USB-C hub
- Maximum output 100 W (20 V/5 A)
- Requires compatible laptop/phone and PD wall charger
Other features:
- Hot Plug support for connecting devices while running
- Full Plug and Play support
- Standby mode support
- Power via USB bus or PD wall charger
- Heavy-duty aluminium body for cooling; heat is efficiently dissipated
- Blue LED indicates hub connection to the computer
- High-quality shielded cable ensures fast communication with minimal interference
- Dimensions 65 x 77 x 15 mm
- Weight 61 g
- USB-C male cable length 20 cm
Supported operating systems:
- Windows 10 / 11 and later, macOS, Linux, Android and Chrome OS
- Compatibility depends on operating system and device manufacturer
- DisplayPort Alternate Mode requires updated OS and device support
- Graphics drivers may affect operation; update to latest drivers recommended
Package contents:
- USB-C hub
- Multilingual manual (CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA)
- Packed in a cardboard box with a hanging hole
Ogólne
Video
2560 x 1440 - 144 Hz (HDMI)
1920 x 1080 - 240 Hz (HDMI)
Praca w sieci
Rozszerzenie / połączenie
2 x SuperSpeed USB 3.0 - USB 9 pin Typ A
1 x USB-C 3.2 Generacji 1 z Power Delivery 3.0 (100 W) - 24 pin USB-C
1 x sieć - 10Base-T/100Base-TX/1000Base-T - RJ-45
Różne
Wymagania systemowe
Wielkość i waga (ładunek)
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
