Numer produktu : 3448578

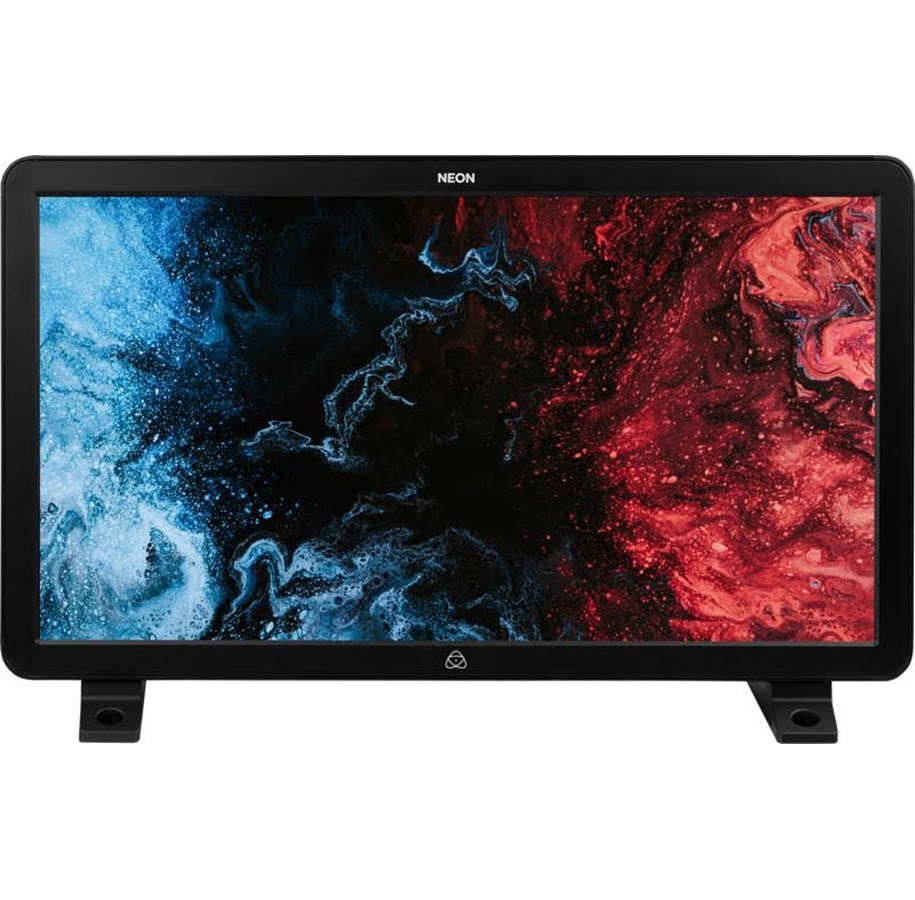

Atomos Neon 24
Monitor produkcyjny łączy precyzyjny wyświetlacz 24" 17:9 4K DCI HDR z wbudowanym nagrywaniem i odtwarzaniem oraz elastyczną łącznością HDMI 2.0 i 12G SDI.
Atomos Neon 24 został zaprojektowany do monitoringu na planie i w studiu, oferując wierność 10-bitowego panelu, lokalne wygaszanie full array dla głębokiej czerni 0 nitów oraz jasność HDR 1000 nitów na całej powierzchni ekranu, wspieraną przez przetwarzanie AtomHDR zapewniające spójne zarządzanie gammą i gamutem w procesach SDR i HDR.
- Ekran 24" 17:9 4K DCI z pokryciem 100% DCI-P3 i dynamicznym kontrastem 1,000,000:1
- Wybieralne tryby SDR/HDR, w tym Rec.709, Rec.2100 HLG i ST.2084 PQ
- Potok wyświetlania AtomHDR z konwersjami LOG-do-HDR oraz obsługą 3D LUT (do 8 zapisanych wewnętrznie)
- Obsługa do 4K60p przez HDMI 2.0 lub 12G SDI z 10-bitowymi wyjściami pętli sygnału
- Monitory waveform, wektorskop, powiększenie pikseli, focus peaking, zebra, false color oraz pomiar audio PPM
- Nagrywa 10-bit 4:2:2 w Apple ProRes lub Avid DNx z bogatymi metadanymi
- Linie pomocnicze kadru i obsługa desqueeze anamorficznego (2x, 1.5x, 1.33x)
- Sterowanie AtomRemote OS przez Bluetooth z urządzeń iOS (wymagane urządzenie iOS)
Zaprojektowany z myślą o pewnym monitoringu HDR i sprawnym podglądzie, NEON 24 pomaga utrzymać spójność koloru, ekspozycji i ostrości od rejestracji po dostarczenie materiału.
33 179,00 zł
26 974,80 zł netto
Koszt wysyłki od 20,00 zł
W magazynie zewnętrznym, czas dostawy 5-6 dni
Exceptional HDR Performance
NEON 24 features:
4K DCI resolution (4096 × 2160)
True 10-bit panel
Full array local dimming backlight
0-nit blacks
1000 nits full-screen brightness
Accurate DCI-P3 coverage with wide gamma
It achieves a dynamic contrast ratio of 1,000,000:1, revealing detail in both shadows and highlights so your production truly stands out.
Advanced Color Management Pipeline
The AtomHDR engine ensures precise handling of input signals and display gamma/gamut.
Selectable display modes allow operation in SDR or HDR to match camera capture settings or delivery standards, including:
Rec.709
Rec.2100 HLG
ST.2084 PQ
NEON 24 delivers native accurate color with DCI-P3 coverage. Wider gamuts such as BT.2020 are accurately processed by the AtomHDR engine for consistent representation.
Built-in transformations allow:
LOG to HDR conversion
3D LUT application for SDR workflows
Monitoring with creative looks or exposure compensation
Downstream output conversion enables standard conversion for SDR, LUT, or HDR delivery as needed.
Flexible & Upgradeable I/O
The NEON platform is modular, allowing I/O to be serviced, replaced, or upgraded without removing the panel from operation.
Master Control Unit (MCU)
The MCU is the brain of NEON and includes:
HDMI 2.0 input and output
Support for 4096 × 2160 DCI up to 60p
Firmware upgrade capability
Storage for up to 8 × 3D LUTs internally
Support for unlimited LUT storage via 2.5" HDD/SSD
LUT management via AtomOS app on iOS
The MCU also includes an Xpansion port. NEON ships with the AtomX SDI module, providing:
2 × 12G-SDI
Support for single and dual link 1.5G / 3G / 6G
A/B input switching
Up to 4K60p input
As standards evolve, both the MCU and Xpansion modules can be upgraded without replacing the entire monitor.
Analysis & Assist Tools
NEON’s professional toolset enables analysis during monitoring, recording, or playback:
Waveform monitors (Luma Parade, RGB Parade)
Vectorscope with zoom
Pixel zoom with pan and scan
Focus peaking (color, mono, edges only)
Adjustable zebra and false color
Audio PPM meters for all embedded channels
Headphone monitoring of selected stereo pair
Additional 3.5mm audio input on MCU
Control & Remote Operation
Built-in Timecode Systems SYNC technology enables Bluetooth control via Atom Remote OS from iOS devices.
An iOS device is required to operate NEON remotely.
Recording & Playback Modes
Connect cameras or video sources via:
12G-SDI (up to 4K DCI 60p)
Dual 6G
1.5G / 3G SDI
HDMI up to 4K60p (non-HDCP)
HD up to 120fps
Supports up to 12 channels of embedded audio (SDI) and 8 channels via HDMI.
10-bit 4:2:2 recording in:
Apple ProRes
Avid DNx
Files use Scene/Shot/Take naming with rich metadata for NLE or MAM workflows.
Playback is available directly from SSD via the MCU drive slot. Clips from other Atomos devices or exported/transcoded ProRes/DNx files can also be played back.
Frame Guides & Anamorphic De-Squeeze
Includes:
Broadcast frame guides
EBU R5 graphic and action safe areas
Cinematic guides
Anamorphic de-squeeze modes (2x, 1.5x, 1.33x)
Compatible with a wide range of anamorphic lenses.
Key Specifications
24" 17:9 4K DCI display
100% DCI-P3 coverage
1,000,000:1 dynamic contrast ratio
1000 nits HDR with Dynamic Full Array Local Dimming
AtomHDR pipeline (LOG to PQ/HLG with 3D LUT for SDR workflows)
Up to 4K60p via HDMI 2.0 or 12G-SDI with 10-bit loop-outs
Anti-glare coating and ultra-wide viewing angle
HD and 4K processing (HD upscaling to 4K DCI crop or downconversion to HD)
AtomRemote OS Bluetooth control via iOS (iOS device required)
Factory calibrated; compatible with Atomos Calibrator supporting X-Rite i1Display Pro Plus
In the Box
Master Control Unit
Master Caddy II
12V 3A AC power supply
AtomX SDI Expansion Module
NEON 24″ panel
Feet
Quick start guide
Button Bar Remote Control Unit
NEON 24 features:
4K DCI resolution (4096 × 2160)
True 10-bit panel
Full array local dimming backlight
0-nit blacks
1000 nits full-screen brightness
Accurate DCI-P3 coverage with wide gamma
It achieves a dynamic contrast ratio of 1,000,000:1, revealing detail in both shadows and highlights so your production truly stands out.
Advanced Color Management Pipeline
The AtomHDR engine ensures precise handling of input signals and display gamma/gamut.
Selectable display modes allow operation in SDR or HDR to match camera capture settings or delivery standards, including:
Rec.709
Rec.2100 HLG
ST.2084 PQ
NEON 24 delivers native accurate color with DCI-P3 coverage. Wider gamuts such as BT.2020 are accurately processed by the AtomHDR engine for consistent representation.
Built-in transformations allow:
LOG to HDR conversion
3D LUT application for SDR workflows
Monitoring with creative looks or exposure compensation
Downstream output conversion enables standard conversion for SDR, LUT, or HDR delivery as needed.
Flexible & Upgradeable I/O
The NEON platform is modular, allowing I/O to be serviced, replaced, or upgraded without removing the panel from operation.
Master Control Unit (MCU)
The MCU is the brain of NEON and includes:
HDMI 2.0 input and output
Support for 4096 × 2160 DCI up to 60p
Firmware upgrade capability
Storage for up to 8 × 3D LUTs internally
Support for unlimited LUT storage via 2.5" HDD/SSD
LUT management via AtomOS app on iOS
The MCU also includes an Xpansion port. NEON ships with the AtomX SDI module, providing:
2 × 12G-SDI
Support for single and dual link 1.5G / 3G / 6G
A/B input switching
Up to 4K60p input
As standards evolve, both the MCU and Xpansion modules can be upgraded without replacing the entire monitor.
Analysis & Assist Tools
NEON’s professional toolset enables analysis during monitoring, recording, or playback:
Waveform monitors (Luma Parade, RGB Parade)
Vectorscope with zoom
Pixel zoom with pan and scan
Focus peaking (color, mono, edges only)
Adjustable zebra and false color
Audio PPM meters for all embedded channels
Headphone monitoring of selected stereo pair
Additional 3.5mm audio input on MCU
Control & Remote Operation
Built-in Timecode Systems SYNC technology enables Bluetooth control via Atom Remote OS from iOS devices.
An iOS device is required to operate NEON remotely.
Recording & Playback Modes
Connect cameras or video sources via:
12G-SDI (up to 4K DCI 60p)
Dual 6G
1.5G / 3G SDI
HDMI up to 4K60p (non-HDCP)
HD up to 120fps
Supports up to 12 channels of embedded audio (SDI) and 8 channels via HDMI.
10-bit 4:2:2 recording in:
Apple ProRes
Avid DNx
Files use Scene/Shot/Take naming with rich metadata for NLE or MAM workflows.
Playback is available directly from SSD via the MCU drive slot. Clips from other Atomos devices or exported/transcoded ProRes/DNx files can also be played back.
Frame Guides & Anamorphic De-Squeeze
Includes:
Broadcast frame guides
EBU R5 graphic and action safe areas
Cinematic guides
Anamorphic de-squeeze modes (2x, 1.5x, 1.33x)
Compatible with a wide range of anamorphic lenses.
Key Specifications
24" 17:9 4K DCI display
100% DCI-P3 coverage
1,000,000:1 dynamic contrast ratio
1000 nits HDR with Dynamic Full Array Local Dimming
AtomHDR pipeline (LOG to PQ/HLG with 3D LUT for SDR workflows)
Up to 4K60p via HDMI 2.0 or 12G-SDI with 10-bit loop-outs
Anti-glare coating and ultra-wide viewing angle
HD and 4K processing (HD upscaling to 4K DCI crop or downconversion to HD)
AtomRemote OS Bluetooth control via iOS (iOS device required)
Factory calibrated; compatible with Atomos Calibrator supporting X-Rite i1Display Pro Plus
In the Box
Master Control Unit
Master Caddy II
12V 3A AC power supply
AtomX SDI Expansion Module
NEON 24″ panel
Feet
Quick start guide
Button Bar Remote Control Unit
Producent
Numer produktu
3448578
Model
ATOMNEO241
Ean
814164022071
