Numer produktu : 3317211

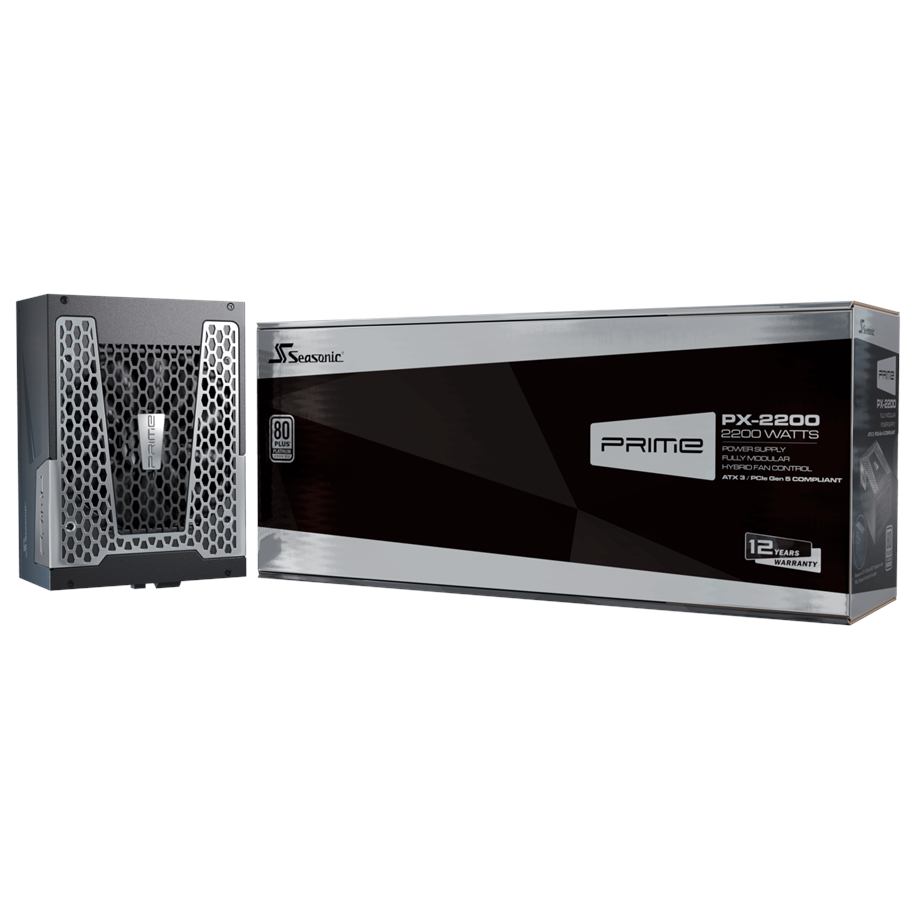

Seasonic PRIME PX-2200 Zasilacz do komputera - 2200 Watt - ATX 3.1 - 80 Plus 80+ Platinum
Zasilacz ( wewnętrzny ), ATX standard: ATX12V 3.1, 80 plus Gold, 135mm wentylator fluid dynamic łożysko, aktywny PFC, kable: 4 x 8 (6+2) pins dla kart graficznych / 4 x 12V-2x6 pins dla kart graficznych (PCI Express 5.1 ready) / 18 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 3 x 4+4 pins CPU, pełna modułowa I cienki/z rękawami kable, kable, kolor: czarny, 2200 watt
Na stanie
2 273,00 zł
1 847,97 zł netto
Koszt wysyłki od 20,00 zł
4 szt.
Na stanie - czas dostawy 2-3 dni
PRIME PX ATX 3.1
Power. Performance. PRIME.
PRIME PX ATX 3
When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.
ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Power. Performance. PRIME.
PRIME PX ATX 3
When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.
ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Kabel zasilajacy (wewnetrzny)
-
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Czarny
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Czarno / Pomarańczowy
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Czarny / Szary
Na stanie - czas dostawy 2-3 dni139,00 zł
-
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Czerwony
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Czarno / Biały
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Pomarańczowy
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Czarno / Zerwony
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Zielony
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Biały
Na stanie - czas dostawy 2-3 dni139,00 zł -
DUTZO Sleeved strumień kabel przedłużający kit (v2) - Niebieski
Na stanie - czas dostawy 2-3 dni139,00 zł
Producent
Numer produktu
3317211
Model
PRIME-PX-2200-ATX30
Ean
4711173878414
Do strony producenta
Opis produktu
Seasonic Prime PX 2200 - zasilacz - 2200 wat
Rodzaj urządzenia
Zasilacz - wewnętrzny
Zgodność z normami
ATX12V 3.1/ EPS12V
Certyfikat 80 PLUS
80 PLUS Platinum
Certyfikacja Cybenetics
Cybenetics Titanium
Napięcie wejściowe
AC 200 - 240 V
Napięcie wyjściowe
+3.3, +5, ±12 V, +5Vsb V
Zasilanie
2200 wat
Prąd wyjściowy
+3.3V - 25 A
+5V - 25 A
+12V - 183.33 A
-12V - 0.5 A
+5VSB - 3 A
+5V - 25 A
+12V - 183.33 A
-12V - 0.5 A
+5VSB - 3 A
Złącza wychodzące
1 x zasilanie 24 pin ATX z wymienną sekcją 4 pin
9 x power 8 pin CPU/PCI Express
6 x zasilanie 8 pin PCI Express z odłączaną sekcją 2 pin
2 x zasilanie 12+4 pin PCI Express 5.1
8 x zasilanie wewnętrzne 8-pin
9 x power 8 pin CPU/PCI Express
6 x zasilanie 8 pin PCI Express z odłączaną sekcją 2 pin
2 x zasilanie 12+4 pin PCI Express 5.1
8 x zasilanie wewnętrzne 8-pin
Modularny organizer kabli
Tak
System chłodzenia
Wentylator 135 mm
Akcesoria w zestawie
Torba na zasilacz, saszetka na kable, zaciski do kabli, śruby, tester zasilacza, przywieszka, grzebienie do kabli
Wymiary (szer./głęb./wys.)
15 cm x 21 cm x 8.6 cm
Standardy ochrony środowiska
ENERGY STAR
Ogólne
Rodzaj urządzenia
Zasilacz - wewnętrzny
Zgodność z normami
ATX12V 3.1/ EPS12V
Rodzaj Obudowy Zasilacza
ATX
Zasilacz
Napięcie wejściowe
AC 200 - 240 V
Wymagana częstotliwość
50 - 60 Hz
Rodzaje złącz wyjściowych zasilania
1 x zasilanie 24 pin ATX z wymienną sekcją 4 pin
9 x power 8 pin CPU/PCI Express
6 x zasilanie 8 pin PCI Express z odłączaną sekcją 2 pin
2 x zasilanie 12+4 pin PCI Express 5.1
8 x zasilanie wewnętrzne 8-pin
9 x power 8 pin CPU/PCI Express
6 x zasilanie 8 pin PCI Express z odłączaną sekcją 2 pin
2 x zasilanie 12+4 pin PCI Express 5.1
8 x zasilanie wewnętrzne 8-pin
Napięcie wyjściowe
+3.3, +5, ±12 V, +5Vsb V
Zasilanie
2200 wat
Prąd wyjściowy
+3.3V - 25 A
+5V - 25 A
+12V - 183.33 A
-12V - 0.5 A
+5VSB - 3 A
+5V - 25 A
+12V - 183.33 A
-12V - 0.5 A
+5VSB - 3 A
Wydajność
92% at 50% Load
Modularny organizer kabli
Tak
Certyfikat 80 PLUS
80 PLUS Platinum
Certyfikacja Cybenetics
Cybenetics Titanium
Różne
Akcesoria w zestawie
Torba na zasilacz, saszetka na kable, zaciski do kabli, śruby, tester zasilacza, przywieszka, grzebienie do kabli
Dołączone przewody
Kabel wejściowy AC
Zasilanie 24 pin ATX z wymiennym kablem modułowym z sekcją 4 pin 61 cm
3 x zasilanie 8 pin EPS12V z wymiennym kablem modułowym 4 pin sekcji ATX12V 70 cm
4 x Zasilanie 8-pin PCI Express z wymiennym kablem modułowym sekcji 2-pin 75 cm
4 x modułowy kabel zasilający z 15 pinami Serial ATA 95 cm
Serial ATA 3.3 power modular cable 55 cm
3 x wewnętrzny kabel zasilający modułowy 4-pinowy 69 cm
4 x kabel zasilający 16-pin 12VHPWR 70 cm
Zasilanie 24 pin ATX z wymiennym kablem modułowym z sekcją 4 pin 61 cm
3 x zasilanie 8 pin EPS12V z wymiennym kablem modułowym 4 pin sekcji ATX12V 70 cm
4 x Zasilanie 8-pin PCI Express z wymiennym kablem modułowym sekcji 2-pin 75 cm
4 x modułowy kabel zasilający z 15 pinami Serial ATA 95 cm
Serial ATA 3.3 power modular cable 55 cm
3 x wewnętrzny kabel zasilający modułowy 4-pinowy 69 cm
4 x kabel zasilający 16-pin 12VHPWR 70 cm
MTBF
100,000 godziny
System chłodzenia
Wentylator 135 mm
Charakterystyka
Wentylator z dynamicznym łożyskiem olejowym, Cyfrowa hybrydowa kontrola wentylatora, ochrona nadprądowa, ochrona przed przegrzaniem, zabezpieczenie nadmocowe, ochrona nadnapięciowa, ochrona przeciwzwarciowa, zabezpieczenie podnapięciowe, styki pozłacane, Multi-GPU Technologies Supported, w pełni modularna konstrukcja
Zgodność z normami
cTUVus, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, ErP Lot 6 2013 Ready, REACH
Informacje o Zrównoważonym Rozwoju
ENERGY STAR
Tak
Parametry środowiska
Minimalna temperatura pracy
0 °C
Maksymalna temperatura pracy
50 °C
Wymiary i waga
Szerokość
15 cm
Głębokość
21 cm
Wysokość
8.6 cm
Powyższe informacje / specyfikacje są wskazówkami i mogą zostać zmienione przez producenta bez powiadomienia. Z zastrzeżeniem błędów w druku i obrazów orientacyjnych. Niektóre teksty są generowane automatycznie lub tłumaczone maszynowo i mogą posiadać błędy lub mogą być mylące.
