Numer produktu : 3489225

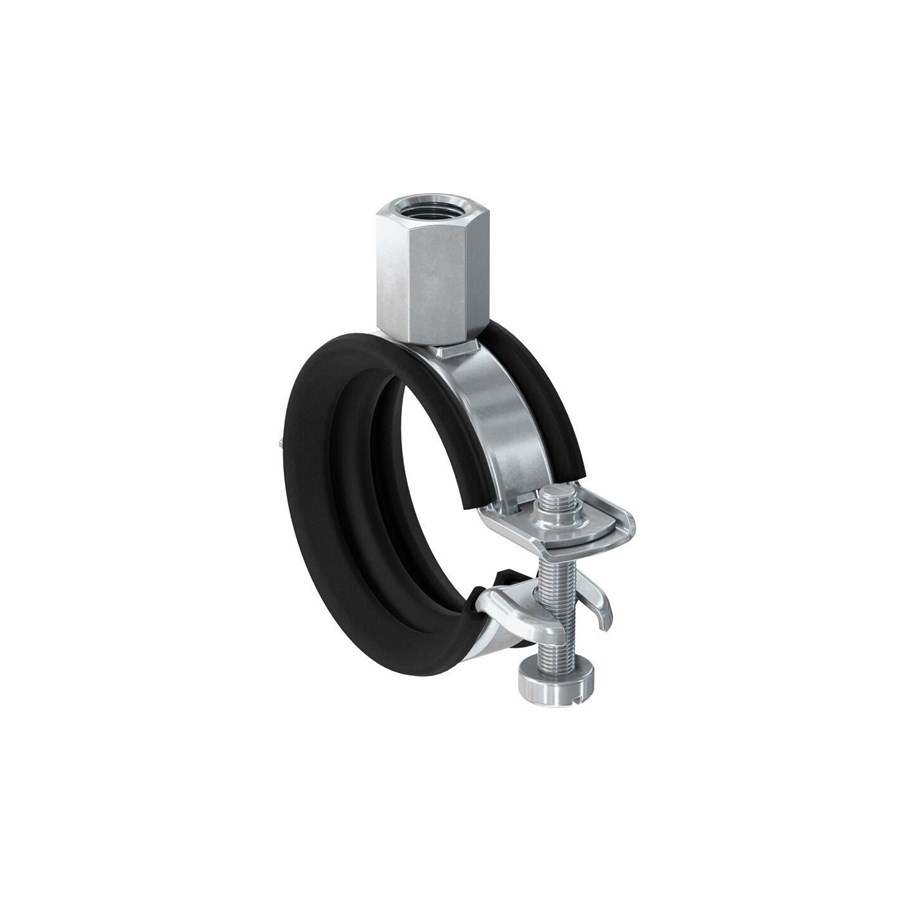

Fischer SaMontec obejma rurowa FGRS Universal, 53mm
Fischer FGRS Z zatrzaskiem i dźwiękochłonną wkładką gumową. Duży kąt otwarcia ułatwia montaż rur, także ponad wysokością głowy. Dzięki zatrzaskowi obejmę rurową można zamknąć jedną ręką.
39,00 zł
31,71 zł netto
Koszt wysyłki od 19,00 zł
W magazynie zewnętrznym, czas dostawy 4-5 dni
The hinged pipe clamp with the convenient and secure quick-release fastener
Advantages
- The sound insulation test report guarantees objectively tested functional safety.
- The complete and gapless diameter clamping range allows the fastening of any pipe size.
- The unique rapid-locking mechanism with all-round edge enables safe and convenient installation.
- The clamp band with crimped edges gives the sound insulation insert a tight fit and simplifies the pipe adjustment.
- The compact design of the pipe clamp allows simple, subsequent insulation.
- The combination torx-slot thread of the screw increases flexibility during assembly.
The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread. The rapid-locking mechanism and combination thread ensure easy and time-saving assembly. The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open. This allows pipelines with an outer diameter of 12 - 66 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.
Properties
- Material: steel DC01 (material no. 1.0330) in accordance with DIN EN 10130
- Zinc plating: electro zinc-plated
- Connecting nut: resistance welded, size 13
- Screw plug: panhead screw with slot/Torx combination (M5=TX25, M6=TX30)
- Sound insulating insert material SBR/EPDM; chlorine-free, silicone-free
- Hardness: 55 ± 5° Shore A
- Temperature range: -40 °C to +100 °C
- Fire behavior: DIN 4102: Class B2
Advantages
- The sound insulation test report guarantees objectively tested functional safety.
- The complete and gapless diameter clamping range allows the fastening of any pipe size.
- The unique rapid-locking mechanism with all-round edge enables safe and convenient installation.
- The clamp band with crimped edges gives the sound insulation insert a tight fit and simplifies the pipe adjustment.
- The compact design of the pipe clamp allows simple, subsequent insulation.
- The combination torx-slot thread of the screw increases flexibility during assembly.
The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread. The rapid-locking mechanism and combination thread ensure easy and time-saving assembly. The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open. This allows pipelines with an outer diameter of 12 - 66 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.
Properties
- Material: steel DC01 (material no. 1.0330) in accordance with DIN EN 10130
- Zinc plating: electro zinc-plated
- Connecting nut: resistance welded, size 13
- Screw plug: panhead screw with slot/Torx combination (M5=TX25, M6=TX30)
- Sound insulating insert material SBR/EPDM; chlorine-free, silicone-free
- Hardness: 55 ± 5° Shore A
- Temperature range: -40 °C to +100 °C
- Fire behavior: DIN 4102: Class B2
